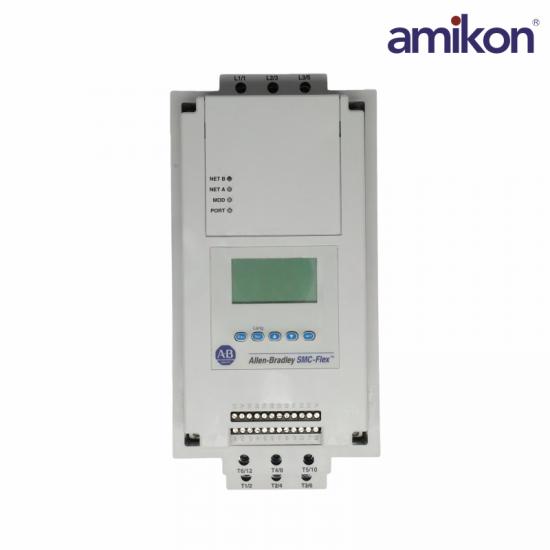

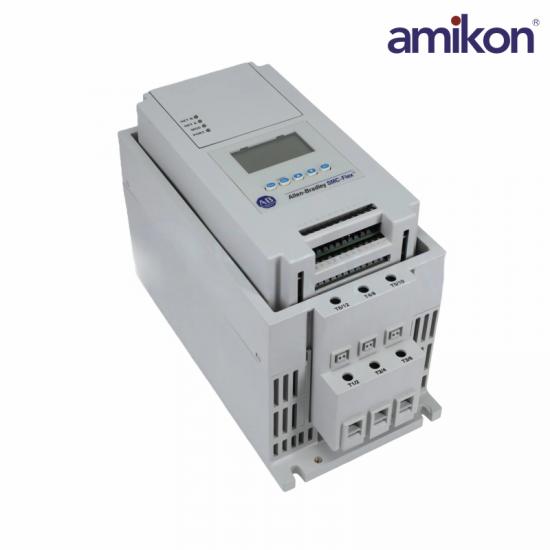

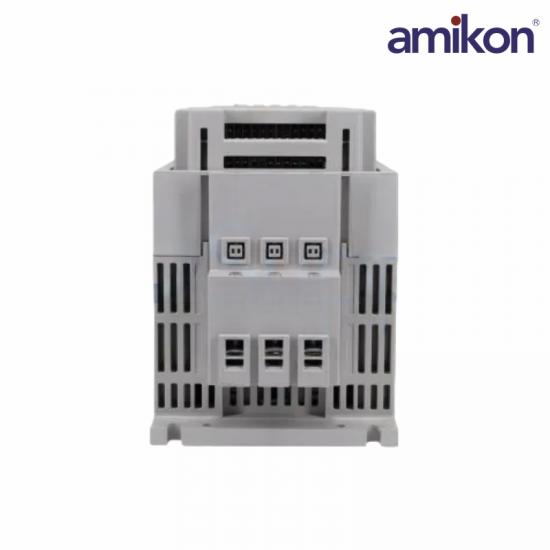

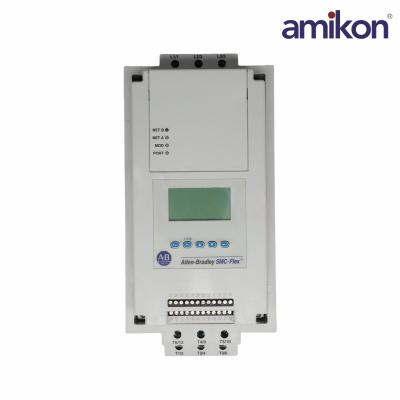

Product Line: SMC-Flex

Part Number: 150-F43NBDB

Product Description: Smart Motor Controller (SMC)

Enclosure Type: Open

Weight: 13.00 lbs (5.90 kg)

Input Line Voltage: 200–460 VAC

Line Voltage (Operating Range): 208…460 VAC, 3-Phase, 47–63 Hz

Rated Voltage: 500/575 VAC

Control Voltage: 100–240 VAC

Input Frequency: 50 / 60 Hz

Output Current: 43 A

Output Power: 30 HP (at 460V AC)

Current Limit Settings: 150%, 250%, 350%, and 450% of full load current

The 150-F43NBDB is part of  Smart Motor Controller (SMC) series. It is specifically an SMC Flex motor controller, more commonly known as a soft-starter device, providing a safe and efficient method of starting and stopping a Squirrel cage of Delta-connected Six-lead AC motor. It also helps to prolong the operation of the connected AC operator, minimizing the mechanical, electrical, and thermal stress brought by sudden starting, stopping, or change of motor rotation direction. The 150-F43NBDB is a panel-mounted device. It must be mounted within an enclosure that offers protection against corrosive gasses and vapors, water, airborne contaminants, and metal filings. The minimum enclosure size that the 150-F43NBDB requires is 406 mm (16 inches) for height; 305 mm (12 inches) for width and 203 inches (8 mm) for Depth. The 150-F43NBDB comes with standard starting and stopping functions such as Soft Start, Kickstart, Current Limit, Pump, Control, Dual ramp start, Full Voltage Start, Coast, Soft Stop, and Smart Motor Braking. Additionally, this controller is added with a built-in Pump Control feature. Aside from these control methods, this controller also supports a metering function where totalizing of Amps, Volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage can be calculated for metering and consumption monitoring requirements. This smart motor controller is powered by an input voltage range of 200-460VAC, 3-Phase, 50/60Hz and delivers varying output ratings such as output power range of 10 - 30 HP @ 60 Hz; 11 - 22 kW @ 50 Hz and output current range of 12-60 Amperes for Line-connected motors and 20 - 50 HP @ 60 Hz; 22 - 37 kW @ 50 Hz and output current range of 14.9 - 74 Amperes for Delta connected motors.
