1606-XLE240E

Product Origin:  USA

Manufacturer：AB

Dimension:6cmx12cmx13cm

Weight:0.7KG

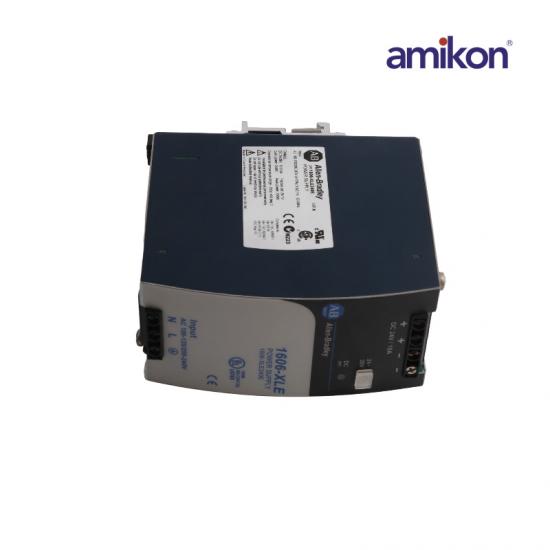

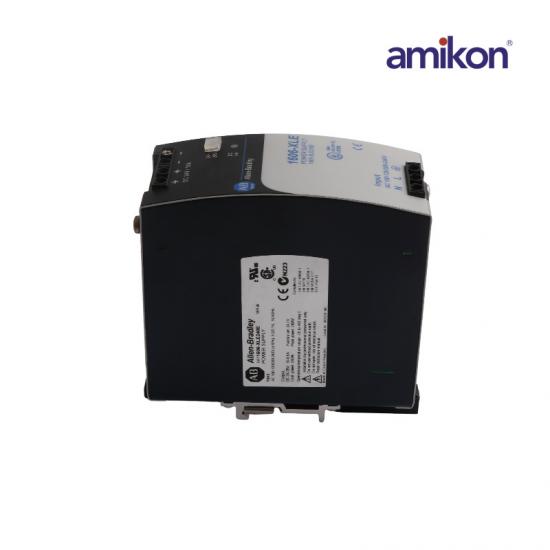

Full Description: 1606-XLE240E-3 Power Supply Module The / Automation 1606-XLE240E-3 Bulletin 1606 power supply module is an essential-type switched mode power supply module, and this means that it only comes with a simple set of essential features in a slim and compact package.

The 1606-XLE240E power supply is crafted to deliver 24.1 Volts DC voltage, 10 Amps of current, and 240 Watts, but it can be adjusted to the specific requirements of a system by changing the output voltage to up to 28 Volts DC. It signals proper device operation over a green DC-o.k. signal light. This unit has all the crucial control and protective features that guarantee a high level of reliability and long service life.

The 1606-XLE240E power supply automatically detects if the input voltage is in the range of 100 120 Volts AC or 200 to 240 Volts AC and adapts it to produce 24 Volts DC voltage at the output side for both cases. Do not apply DC voltage to the input terminals. The unit has a low inrush current that peaks at 3 Amps. On the load side, this power supply is electronically protected against no-load, overload, and short-circuit situations.The physical dimensions and the weight of the unit are 60 millimeters x 124 millimeters x 117 millimeters and 0.7 kilograms, respectively.
