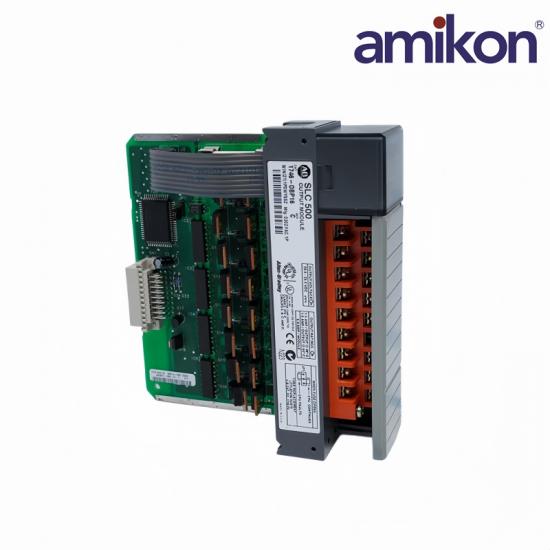

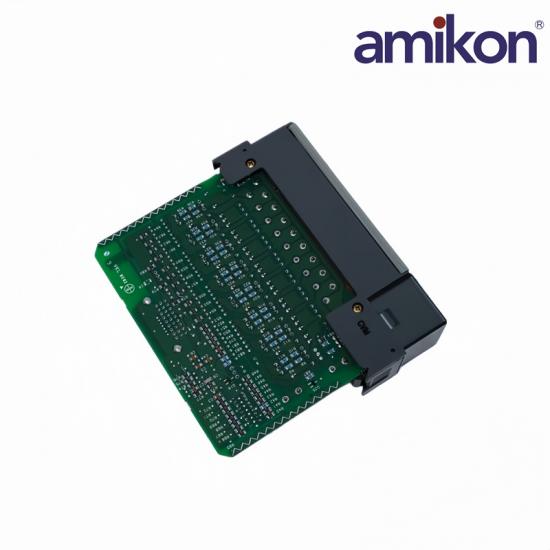

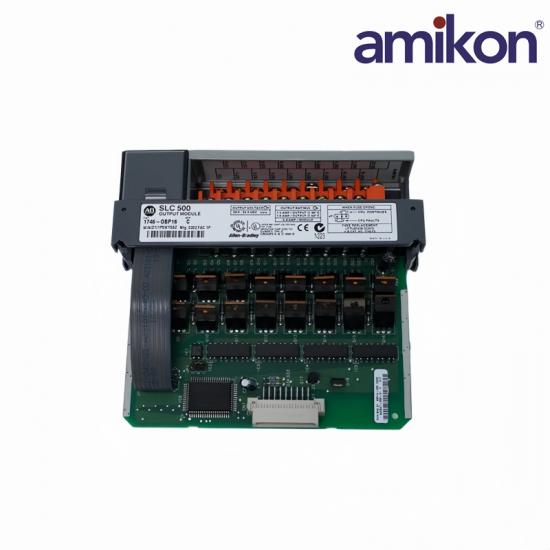

1746-OBP16 16-Point High-Current DC Output Module

1746-OBP16
1746-OBP16
1746-OBP16

1746-OBP16 16-Point High-Current DC Output Module

✉  INQUIRE NOW

PLC MODULE · DC OUTPUT MODULES

1746-OBP16

16-Point High-Current 24 V DC Sourcing Output Module

MANUFACTURERPLC Module
MODEL1746-OBP16
PART NUMBER1746-OBP16
PRODUCT TYPEFused DC Sourcing Output Module
SYSTEM FAMILYDC Output Modules
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    1746-OBP16
  • Product Origin:

    USA
  • Brand/Manufature:

    PLC Module
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

PLC Module DC Output Modules

1746-OBP16

Price and Availability Inquiry

The 1746-OBP16 is a 16-point high-current sourcing output module for 20.4–26.4 V DC loads with a fused common and blown-fuse indication.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1746-OBP16 and required quantity in your inquiry.

1746-OBP16

Technical Specifications

Official identification, electrical, interface, installation and ordering data for the 1746-OBP16 16-point high-current 24 v dc sourcing output module.

01Product IdentityOfficial model identification
ManufacturerPLC Module
Article Number1746-OBP16
Product Designation16-Point High-Current 24 V DC Sourcing Output Module
Product FamilyDC Output Modules
02Output ConfigurationPublished DC output data
OUTPUT POINTS16
OUTPUT TYPESourcing transistor
OPERATING RANGE20.4–26.4 V DC
POINTS PER COMMON16
03Current & TimingLoad and response ratings
PER-POINT CURRENT1.5 A at 30 °C; 1.0 A at 60 °C
MODULE CURRENT6.4 A at 0–60 °C
SIGNAL DELAYOn 1.0 ms; off 2.0 ms
SURGE CURRENT4 A per point for 10 ms
04Protection & PowerModule protection data
COMMON PROTECTIONFused common
STATUSBlown-fuse LED
5 V DC DRAW250 mA
VOLTAGE DROP1 V max at 2 A

1746-OBP16 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 1746-OBP16.

01

Which load voltage is supported by 1746-OBP16?

Use the module with 20.4–26.4 V DC sourcing loads.

02

How many outputs share the common?

All 16 output points are assigned to one common on this module.

03

Which current limits apply at elevated temperature?

The per-point limit is 1.5 A at 30 °C and 1.0 A at 60 °C; the module limit is 6.4 A from 0–60 °C.

04

How is the output common protected?

A fused common and a blown-fuse LED are provided for field-circuit protection and status indication.

05

Which response time should the application allow?

The published maximum delay is 1.0 ms when turning on and 2.0 ms when turning off.

06

How should an inductive load be commissioned?

Confirm polarity, current and suppression requirements, then test each output under its actual load without exceeding surge limits.

07

Which ordering evidence prevents a mismatch?

Provide 1746-OBP16, the installed revision, supply voltage, load-current data and clear terminal-label photos.
