PLC Module Industrial Drive Modules

1756-DMD30

Price and Availability Inquiry

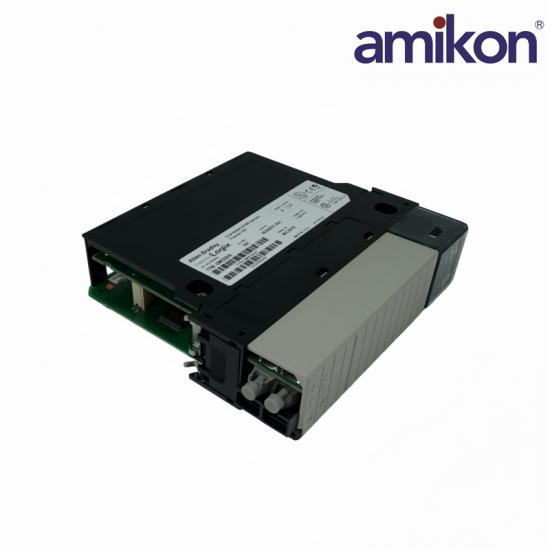

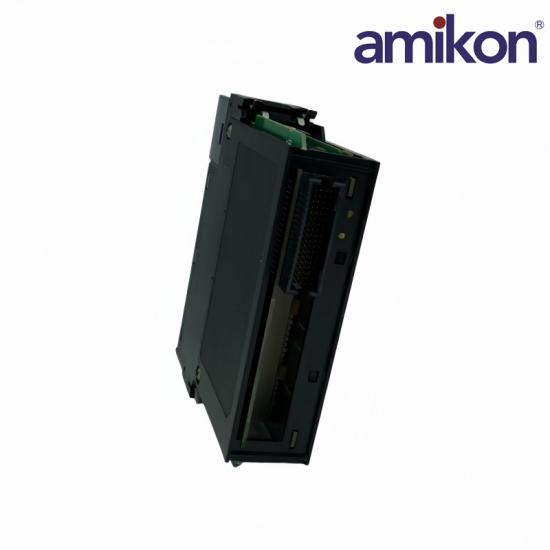

The 1756-DMD30 is a digital drive control and communication module using fiber-optic drive and synchronization links for coordinated industrial motion applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 1756-DMD30 and required quantity in your inquiry.

1756-DMD30

Technical Specifications

Official identification, electrical, interface, installation and ordering data for the 1756-DMD30 digital drive control module.

01Product IdentityOfficial model identification

ManufacturerPLC Module

Article Number1756-DMD30

Product DesignationDigital Drive Control Module

Product FamilyIndustrial Drive Modules

02Module PowerPublished chassis requirements

5.1 V DC DRAW1.35 A

24 V DC DRAW3.0 mA

POWER DISSIPATION6.96 W max

THERMAL DISSIPATION23.7 BTU/h

03Optical InterfacesDrive and synchronization links

DRIVE DATA RATE5 Mbit/s

SYNC DATA RATE10 Mbit/s

CABLE LENGTH1–300 m

STATUS INDICATORSOperation, link and diagnostics

04Environmental DataInstallation and service limits

OPERATING TEMPERATURE0–60 °C

STORAGE TEMPERATURE−40–85 °C

RELATIVE HUMIDITY5–95%, noncondensing

VIBRATION2 g at 10–500 Hz

1756-DMD30 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 1756-DMD30.

Which communication media are required for 1756-DMD30?

The module uses optical links for drive communication and system synchronization; match the fiber type and connector arrangement shown in the installation drawing.

Which chassis power must be reserved?

Reserve 1.35 A at 5.1 V DC and 3.0 mA at 24 V DC, equal to 6.96 W maximum module dissipation.

How long can the optical connections be?

Published minimum and maximum cable lengths are 1 m and 300 m, with splice and adapter restrictions.

Which indicators support troubleshooting?

Green and red indicators report module operation, drive communication, synchronization and diagnostic status.

Which environmental limits apply inside the enclosure?

Operate from 0–60 °C at 5–95% noncondensing humidity and provide an enclosure suitable for the installation area.

How should replacement be commissioned?

Back up parameters, verify the optical routing and node role, then confirm link, synchronization and drive-status indicators before enabling motion.

Which information should accompany an inquiry?

Send model 1756-DMD30, installed module revision, drive interface details, fiber-cable references and clear front-label photos.
