Description：

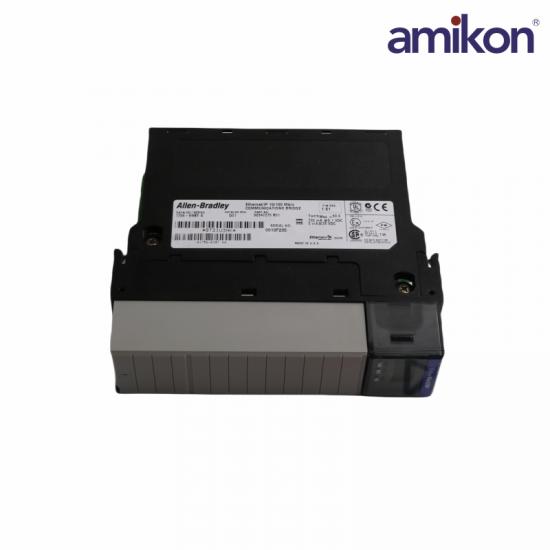

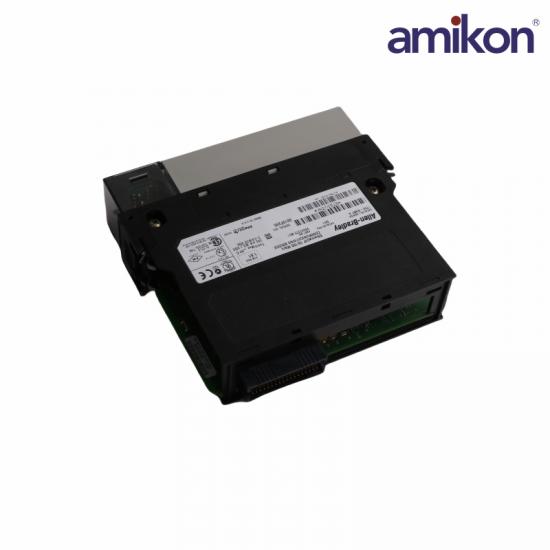

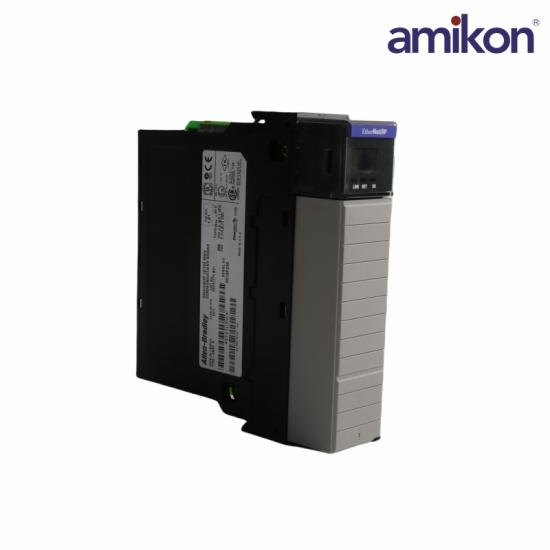

The 1756-ENBT/A is an Ethernet/IP network module, integral to the line of products. Utilizing copper media, this module is capable of operating at communication speeds of 10 or 100 Mbps. Connectivity is facilitated through one port, which enables robust networking capabilities. The device effectively supports up to 64 TCP connections, providing ample capacity for data exchange in complex environments.

In addition to standard communication, the 1756-ENBT/A allows for the use of up to 32 multicast tags, thereby enhancing data distribution across the network. This module is engineered to support socket services, which further contributes to its versatility in handling I/O module control applications. Additionally, it is well-suited for remote Ethernet/IP adapter applications, ensuring it can communicate seamlessly with other Ethernet/IP devices.

Specification：

Frequently asked questions

Q1:What is the 1756-ENBT/A power consumption rating?

A1:The 1756-ENBT/A current draw rating is 700 milliamps at 5.1 Volts DC and it is 3 milliamps at 24 Volts DC.

Q2:What is the 1756-ENBT/A communication rate?

A2:The 1756-ENBT/A communication rate is 10 to 100 megabytes.

Q3:Does the 1756-ENBT/A come with an enclosure?

A3:Yes, the 1756-ENBT/A comes with an open enclosure.

Q4:Where can the 1756-ENBT/A be installed?

A4:The 1756-ENBT/A can be installed in any slot in a machine chassis.

Q5:What is the 1756-ENBT/A power dissipation rating?

A5:The 1756-ENBT/A power dissipation rating is 3.7 Watts.

Product Applications

Automotive manufacturing and assembly plants: Connect the main workshop PLC with robot controllers, welding workstations, and conveyor belt drives (such as PowerFlex inverters) to achieve synchronous control of high-speed production lines.

Water treatment and environmental protection plants: Commonly used in distributed control systems (DCS) of wastewater treatment plants or waterworks, controlling remote Flex I/O nodes multiple kilometers away via Ethernet to monitor pump station and valve status.

Food and beverage processing plants: In batching stations and filling lines, this module is often used to connect to upper-level HMI monitoring systems such as Siemens WinCC to send product formulas and collect production data in real time.

Metallurgical and heavy industry workshops: In harsh factory environments with high temperatures and strong electromagnetic interference, its industrial-grade shock resistance (30G), electrostatic discharge (ESD) protection, and Class I, Div 2 explosion-proof certifications ensure the continuous operation of core equipment.
