Module Type: Digital DC Input Module

Number of Inputs: Thirty-Two (32) Inputs

Input Voltage: 12-24 Volts DC Sink

Operating Voltage Range: 10-31.2 Volts DC

Module Keying: Electronic keying for secure installation

Maximum Operating Current: 10 milliamperes at 31.2 Volts DC

Maximum Input Current (Off-State): 1.5 milliamperes

Minimum Operating Current: 2 milliamperes at 10 Volts DC

Input Delay Time (ON to OFF): Hardware delay: 700 µs nominal / 2 ms max + filter time

Input Delay Time (OFF to ON): Hardware delay: 290 µs nominal / 1 ms max + filter time

Input Delay Time: 2 milliseconds plus selected filter time

Power Dissipation (Max): 5.1 W @ 60°C (140°F)

Backplane Current at 24 Volts: 2 milliamperes

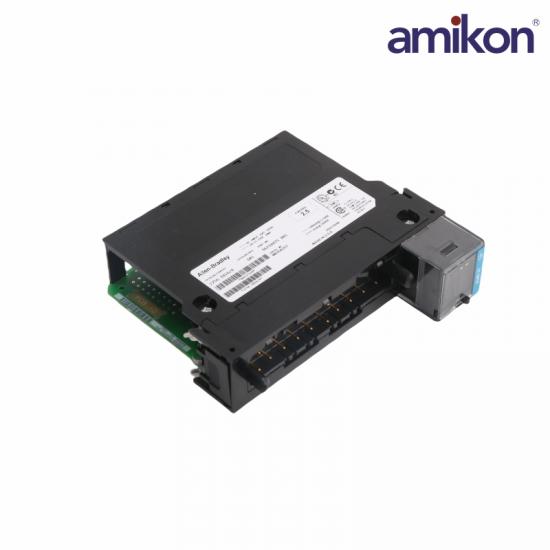

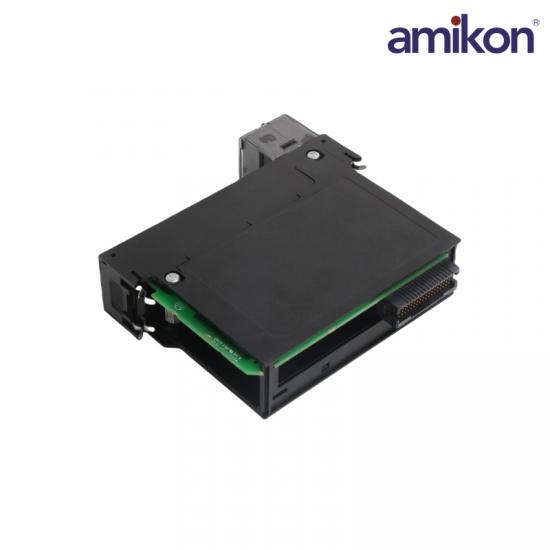

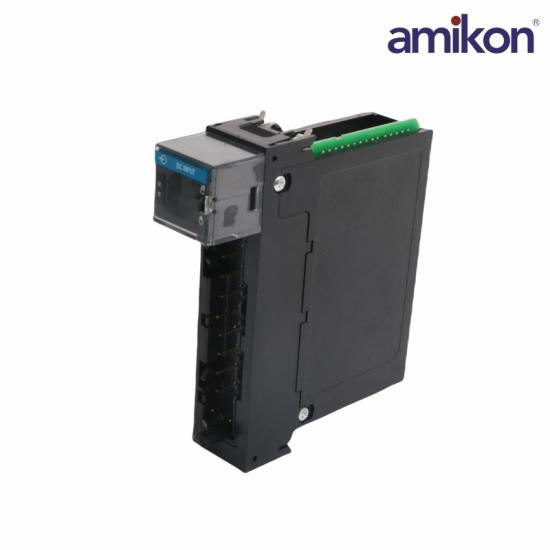

The 1756-IB16 is I/O module. This 16-point DC input module, with 8 points per group, can be connected to a 1756 chassis. The compatible removable terminal block housings, or RTB, are the 1756-TBNH 20 positions NEMA RTB and the 1756-TBSH 20 position spring clamp RTB. Note that before installation, users should have the compatible RTB on hand and that the 1756 chassis and power supply should be installed and grounded. The nominal input voltage of the 1756-IB16 module is 24 Volts DC, while the voltage category is 12/24 Volt DC sink. Its operating voltage range is 10 to 31.2 Volts DC and the total backplane power is 0.56W. The current draw at 5.1 Volts DC is 100 mA. At 24 Volts, the current draw is 2 mA. This module also has a maximum inrush current of 250 mA peak, which decays to 37% in 22 milliseconds, without activation. Its isolation voltage is 250 Volts continuous. The power dissipation of this module is around is 5.1 Watts at 60 Degrees Celsius and the thermal dissipation is 17.39 BTU/hour. The on-state current of this module ranges from 2.0 mA at 10 Volts DC to 10 mA at 31.2 Volts DC. At an off-state, it has a maximum voltage of 5V and a maximum current of 1.5 mA. The module's input delay time has a maximum of 1 ms hardware delay plus the user-configurable filter time (0, 1, or 2 milliseconds). It has a maximum hardware delay time of 2 milliseconds plus the user-configurable filter time (0, 1, 2, 9, or 18 milliseconds).
