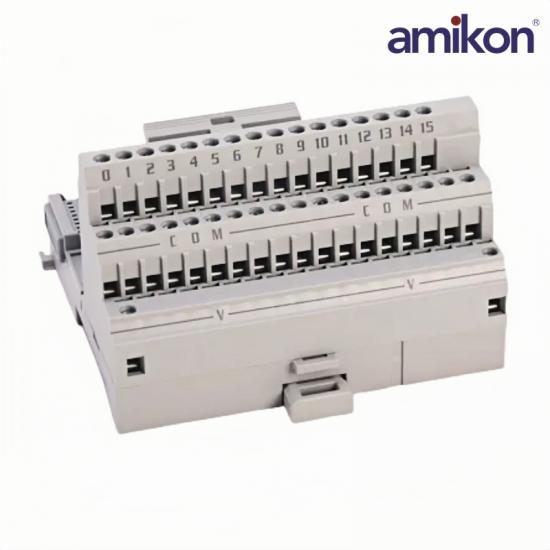

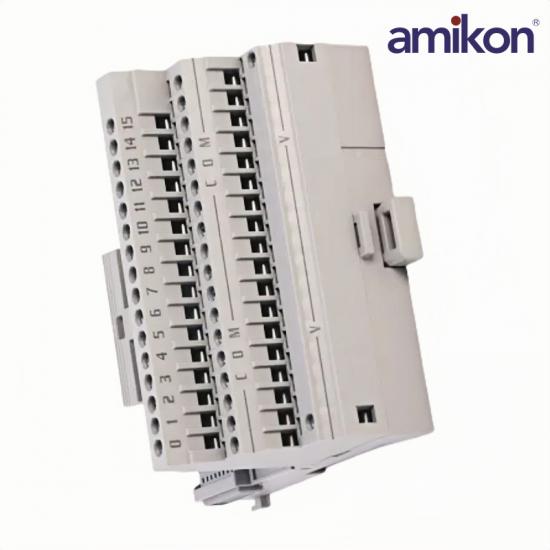

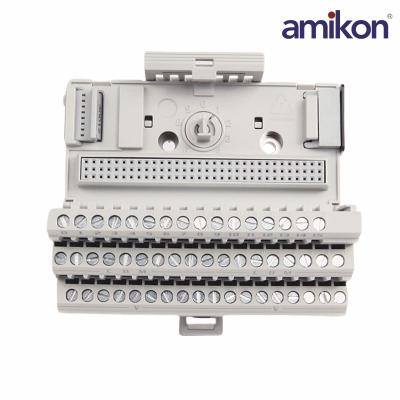

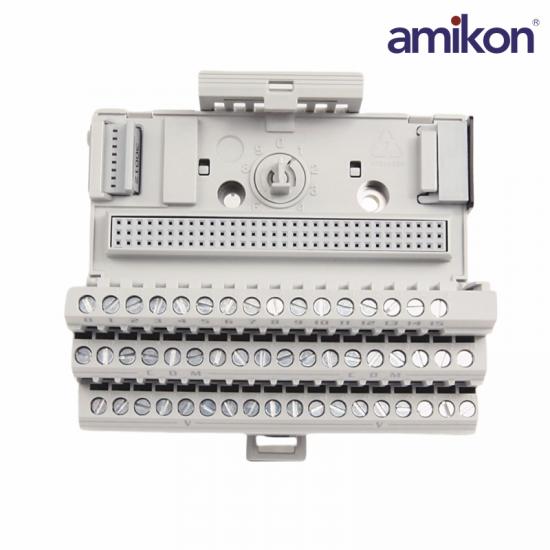

The 1794-TB3K Flex I/O Terminal Base Unit by is a device which provides terminal connection points for I/O wiring and contributes to the formation of the backplane. It has a maximum of 16 I/O connections with 18 common terminals and 18 voltage terminals. The 1794-TB3K is used in an application with a 125V AC/DC electrical rating and it has a maximum current capacity of 10A with 0.21 x 1.3 mm2 (24-16 AWG) stranded copper wire intended for use with input and output modules. The 1794-TB3K has a Flexbus rating of 5V DC at 640mA and it supplies a 2A current to the I/O terminals. It also has V/COM Terminals ratings of 125V DC/AC and 10A at 50-60Hz. The 1794-TB3K provides voltage isolation of 125V (continuous) using Basic Insulation Type between Field Wiring Terminals to FLEXBUS and it has a terminal screw torque of 0.56 x 0.79 Nm (5 x 7lb-in). It has a T4A (North America) designated temperature code and an IEC T4 temperature code. The 1794-TB3K has an IEC-rated operational temperature of -20-70 deg. C (-4-158 deg. F) at 5-95% non-condensing relative humidity and it is tested and rated to withstand an operational shock of 30G and a vibration of 5G at 10-500Hz. The 1794-TB3K is c-UL-us, UL, CSA, and CE-certified and has a dimension 94mm x 94mm x 69mm (3.7in x 3.7in x 2.7in).
