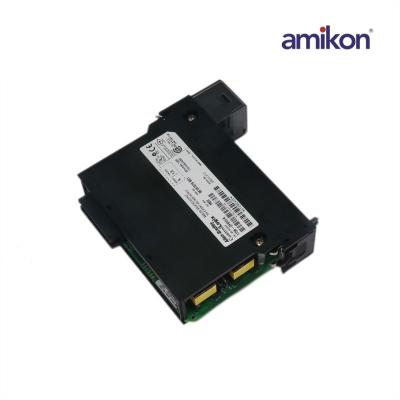

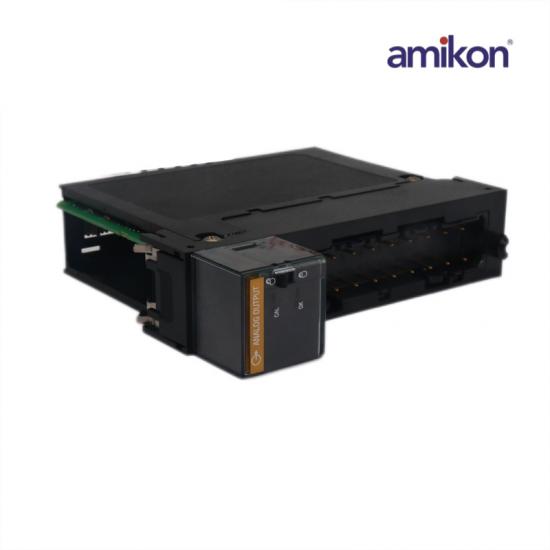

1756-OF6VI

Dimensions ：

28.3cmx18.2cmx5.2cm

Weight：

0.59KG

The 1756-OF6VI has a drive capability of loads at 10mA, and a <2ms settling time. The 1756-OF6VI has a calibration accuracy far better than 0.1% of its range and requires re-calibration only after 6 months. The module has a maximum gain drift of 80 ppm/ deg C, and it has a standard offset drift of 60 V per deg. C.

The 1756-OF6VI has an overall module error margin of 0.5% and it has a module scan time of 25ms for floating point, and 10ms for integer. It has an isolation voltage of 250V with basic insulation, tested at 1350V AC for 2s, between output channels-to-backplane, and output channel-to-channel. It has the T4A North America Designated temperature code and an IEC T4 temperature code and comes in an open-style enclosure.

The 1756-OF6VI has a functional temperature range between 0 and 60 deg. C at 5-95% non-condensing humidity environment and it is designed to withstand an operational shock of 30G with a vibration of 2G at 10-500Hz.The 1756-OF6VI ControlLogix Voltage Loop Output Analog module by is a ControlLogix chassis slot fitted analog output module with 6 individually-isolated outputs. It has a selectable signal range with an overall output range of +/- 10.5V and a signal resolution of 14 bits across 21V.
