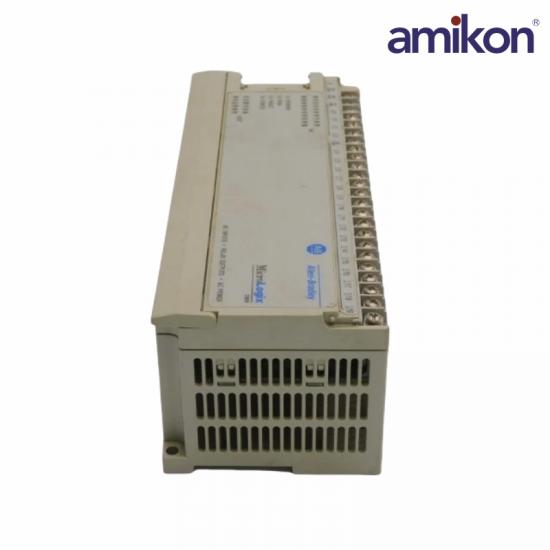

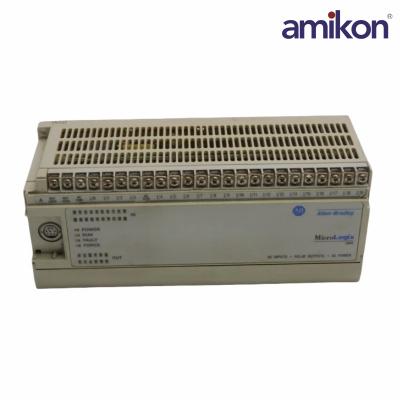

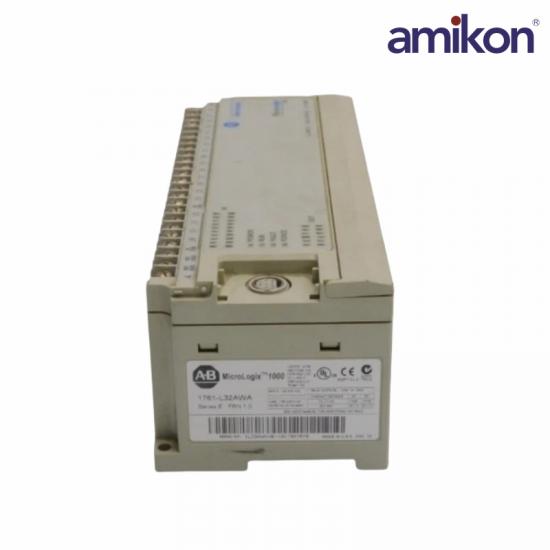

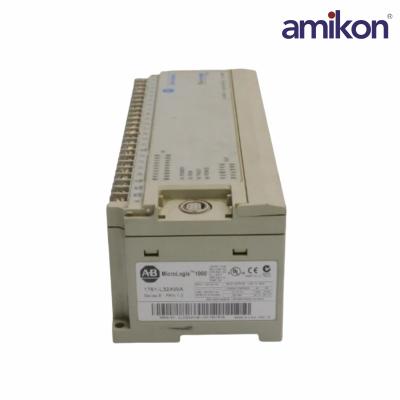

1761-L32AWA is a programmable controller.  The controller has 1K user memory, integrated Twenty (20) 120 Volts AC input channels and Twelve (12) relay output channels.  The 1761-L32AWA can be operated with a power source that supplies either 120 VAC or 240 VAC.  For safety purposes, the 1761-L32AWA should be installed and operated in non-hazardous locations or in Class 1 Division 2 groups A, B, C, and D. The controller may explode if the connectors are connected or disconnected while the circuit is still live or when the 1761-L32AWA is not installed in an enclosure.  The 1761-L32AWA measures 7.87 inches in length, 2.87 inches in depth, and 3.15 inches in height.  The controller may be mounted horizontally or vertically.  When mounting, a minimum space of 2 inches should be left on the top, bottom, and on the sides to allow for the free flow of air.  It comes in a compact size and has several communication options that include an RS-232 port to connects to a peer-to-peer network through the DH-485 network.  It also has a Device Net Interface (DNI) for fast response, low cost, and reliable connections.
