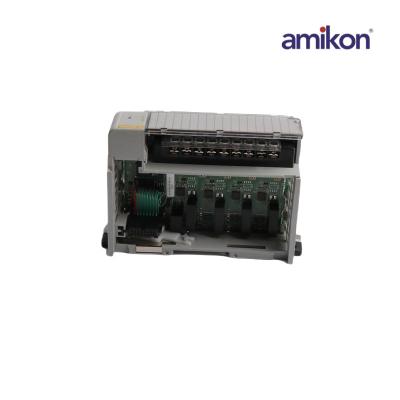

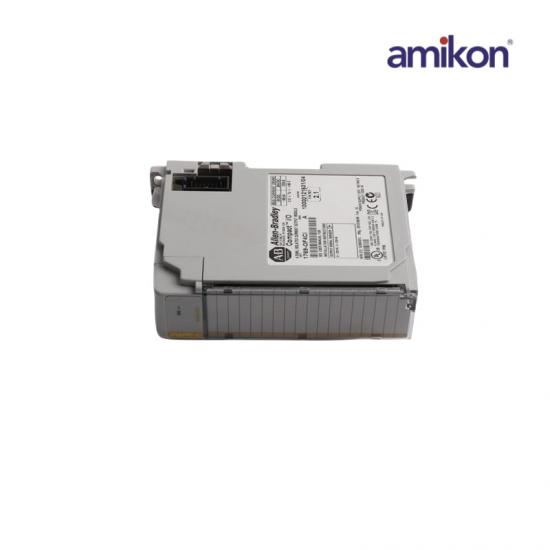

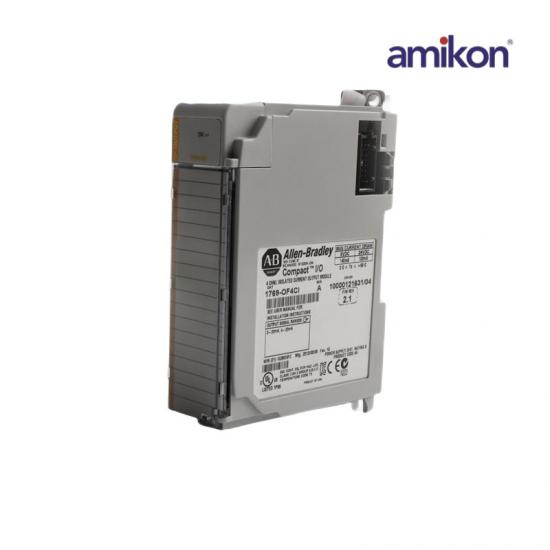

1769-OF4CI

Dimensions ：

3.8cmx8.6cmx13cm

Weight：

0.18KG

The 1769-OF4CI is a Four (4) channel analog current isolated output module classified under the CompactLogix series manufactured by . The 1769-OF4CI features 16-bit resolution and supports the Belden 8761 shielded compact analog module cable.

The 1769-OF4CI features 330 µ V per bit 0 to 20mA with a 5 Volt DC 165 mA bus current. This unit also features a heat dissipation of 2.0 Watts. It features a conversion rate of 110 milliseconds and a limited voltage per current ratio that is greater than 2.9 milliseconds. The module comes with a resistive load of 0 to 500 Ohms and has an output inductive load rated at 0.1 mH.

The 1769-OF4CI comes with electrostatic discharge that can damage integrated circuits or semiconductors. Therefore, when touching the unit, touch a grounded object so as to discharge the static potential. Avoid touching the bus connector or the connector pins and use a static-safe workstation if available. While not in use, the 1769-OF4CI should be kept in the static shield box.The 1769-OF4CI comes with an accuracy of +/-0.35% with an accuracy drift with respect to the temperature of +/-0.0058% FS per degree Celsius.
