1769-PB4 24 V DC Power Supply Module

1769-PB4
1769-PB4
1769-PB4

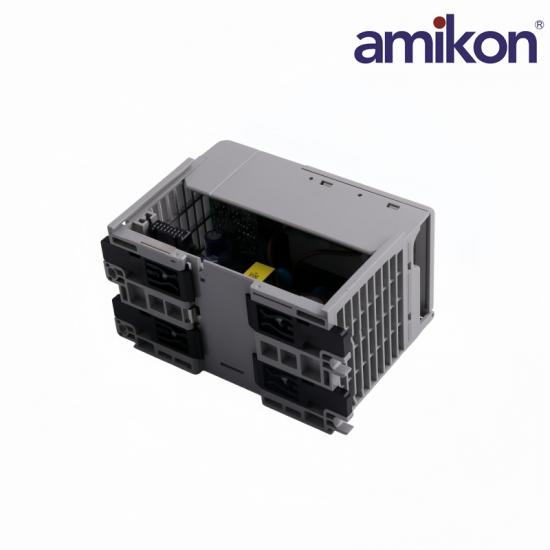

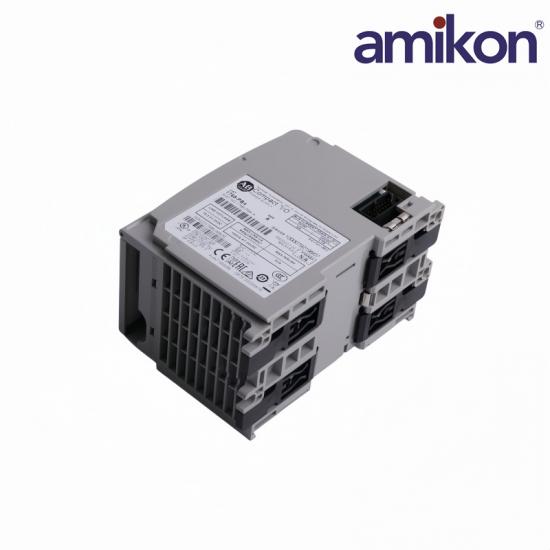

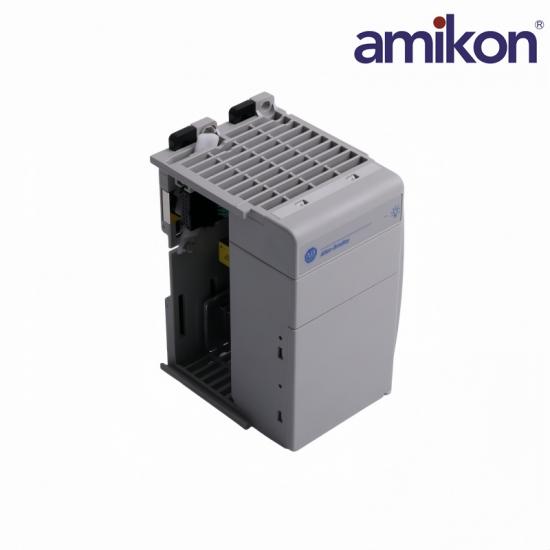

1769-PB4 24 V DC Power Supply Module

✉  INQUIRE NOW

ORIGINAL MANUFACTURER · Compact Industrial I/O Power Supply

1769-PB4

24 V DC Power Supply Module

MANUFACTUREROriginal Manufacturer
MODEL1769-PB4
PART NUMBER1769-PB4
PRODUCT TYPE24 V DC Power Supply Module
SYSTEM FAMILYCompact Industrial I/O Power Supply
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    1769-PB4
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    PLC Module
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    12 Months

Industrial Automation Module

1769-PB4

Price and Availability Inquiry

The 1769-PB4 is a 24 V DC input power supply module providing 5 V DC and 24 V DC backplane outputs for compact industrial I/O assemblies.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1769-PB4 and required quantity in your inquiry.

1769-PB4 PRODUCT DATA

Technical Specifications

Identification, compatibility, installation and ordering data for 1769-PB4.

01Product IdentityOfficial product data
MODEL1769-PB4
PRODUCT TYPEDC power supply module
INPUT TYPE24 V DC nominal
MOUNTINGDIN rail or panel
02Input & OutputOfficial product data
INPUT RANGE19.2–31.2 V DC
INPUT POWER100 VA maximum at 24 V DC
5 V OUTPUT4.0 A
24 V OUTPUT1.7 A
03Thermal & InstallationOfficial product data
POWER DISSIPATION14.5 W at 60 °C
WEIGHTApprox. 630 g
DIMENSIONS118 × 70 × 87 mm
WIRE SIZE14 AWG (2.5 mm²) solid copper
04System PlanningOfficial product data
ORDER IDENTITY1769-PB4
INRUSH CURRENT30 A at 31.2 V DC
OPERATING TEMPERATURE0 to 60 °C
RELATIVE HUMIDITY5–95% noncondensing

1769-PB4 PRODUCT SUPPORT

Application and Ordering FAQ

Product-specific compatibility, application, installation and ordering guidance for 1769-PB4.

01

Which input range applies to 1769-PB4?

The published range is 19.2 to 31.2 V DC, with 100 VA maximum input at 24 V DC.

02

How much 5 V backplane current is available?

The listed 5 V DC output capacity is 4.0 A, subject to system loading and temperature limits.

03

How much 24 V backplane current is available?

The listed 24 V DC output capacity is 1.7 A under the published operating conditions.

04

How should modules be distributed around the supply?

The system guidance allows modules on both sides of the supply; calculate side-by-side current and the eight-module limit.

05

Which mounting methods are supported?

Use DIN-rail or panel mounting according to the enclosure and installation instructions.

06

Why is a load calculation required before replacement?

Both 5 V and 24 V backplane demand must stay within the supply limits at the actual ambient temperature.

07

Which exact number should be quoted?

Specify 1769-PB4 exactly and include input voltage, module loading and required quantity.
