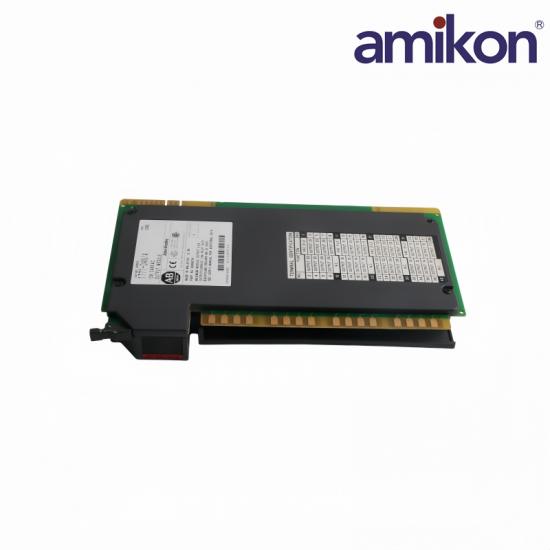

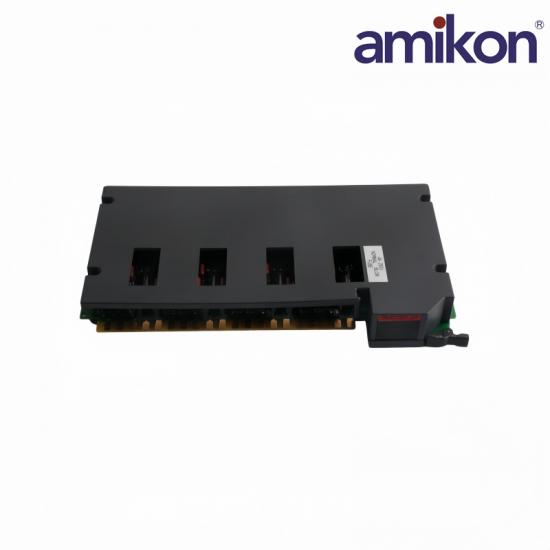

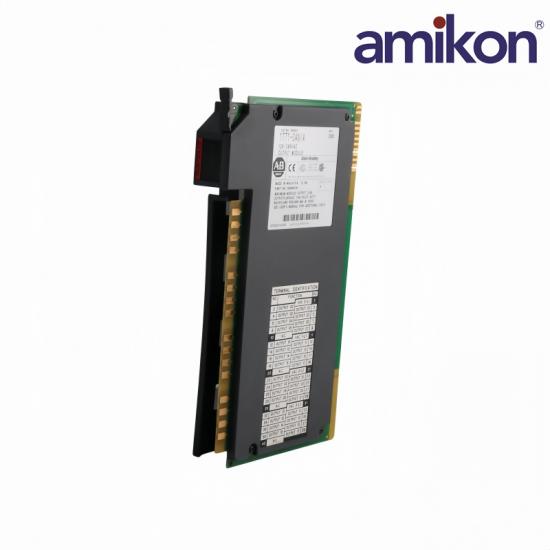

1771-OAN 32-Point AC Digital Output Module

1771-OAN
1771-OAN
1771-OAN

1771-OAN 32-Point AC Digital Output Module

✉  INQUIRE NOW

ORIGINAL MANUFACTURER · Chassis Digital I/O Module

1771-OAN

32-Point AC Digital Output Module

MANUFACTUREROriginal Manufacturer
MODEL1771-OAN
PART NUMBER1771-OAN
PRODUCT TYPE32-Point AC Digital Output Module
SYSTEM FAMILYChassis Digital I/O Module
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    1771-OAN
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    PLC Module
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    12 Months

Industrial Automation Module

1771-OAN

Price and Availability Inquiry

The 1771-OAN is a 32-point 120 V AC digital output module for installed chassis-based automation systems. Verify field voltage, wiring arm and load current before replacement.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1771-OAN and required quantity in your inquiry.

1771-OAN PRODUCT DATA

Technical Specifications

Identification, compatibility, installation and ordering data for 1771-OAN.

01Product IdentityOfficial product data
MODEL1771-OAN
PRODUCT TYPEAC digital output module
OUTPUT POINTS32
VOLTAGE CLASS120 V AC
02Output RatingsOfficial product data
OUTPUT GROUPING4 groups of 8
VOLTAGE RANGE80–265 V AC, 47–63 Hz
CURRENT PER POINT1.0 A at 30 °C; 0.3 A at 60 °C
CURRENT PER MODULE8.0 A at 30 °C; 2.4 A at 60 °C
03Switching & ProtectionOfficial product data
SURGE CURRENT10 A for 25 ms
MINIMUM LOAD10 mA per output
ON-STATE DROP1.5 V AC at 1 A
GROUP FUSESFour 4 A, 250 V normal-blow
04Interface & EnvironmentOfficial product data
BACKPLANE CURRENT800 mA at 5 V DC
FIELD WIRING ARM1771-WN
OPERATING TEMPERATURE0 to 60 °C
STORAGE TEMPERATURE−40 to +85 °C

1771-OAN PRODUCT SUPPORT

Application and Ordering FAQ

Product-specific compatibility, application, installation and ordering guidance for 1771-OAN.

01

How many outputs are provided by 1771-OAN?

The module provides 32 discrete AC output points for the published 120 V AC class.

02

Which field checks are required before replacement?

Confirm supply voltage and frequency, wiring-arm identity, load current, suppression and point assignment.

03

How much I/O circuit heat should be considered?

Published system data lists 12.3 W maximum total I/O circuit power dissipation.

04

How should field power be handled during installation?

Isolate and verify field power before removing the wiring assembly or installing the replacement module.

05

Which migration hardware is documented for this model?

Published conversion information references two 1756-OA16 modules with the approved conversion module and cable set.

06

Why must every output point be mapped before migration?

A point-by-point check prevents terminal, commons and output addresses from being assigned incorrectly.

07

Which identity belongs on the quotation?

Use 1771-OAN exactly and include the installed wiring assembly plus required quantity.
