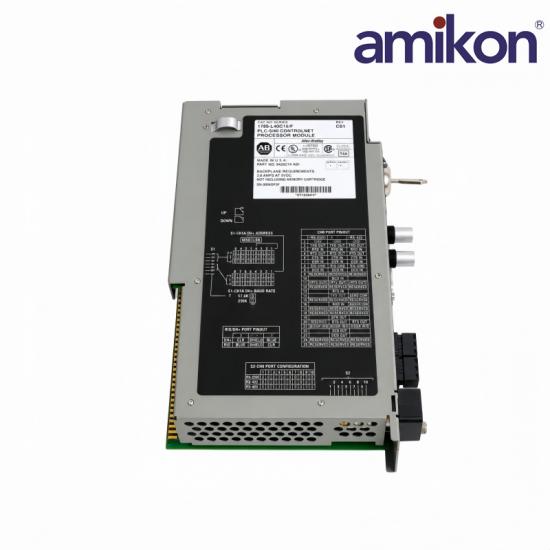

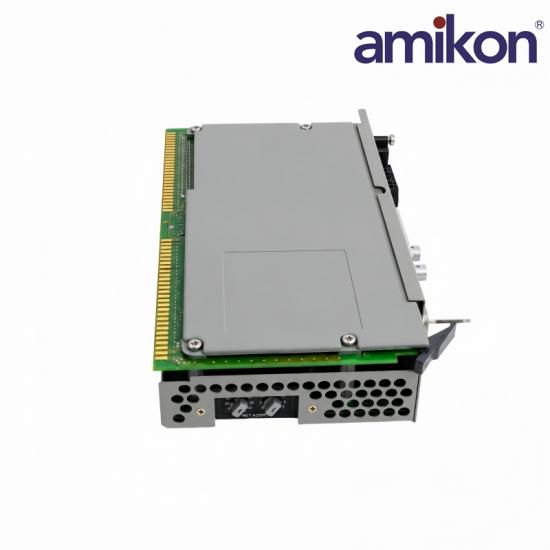

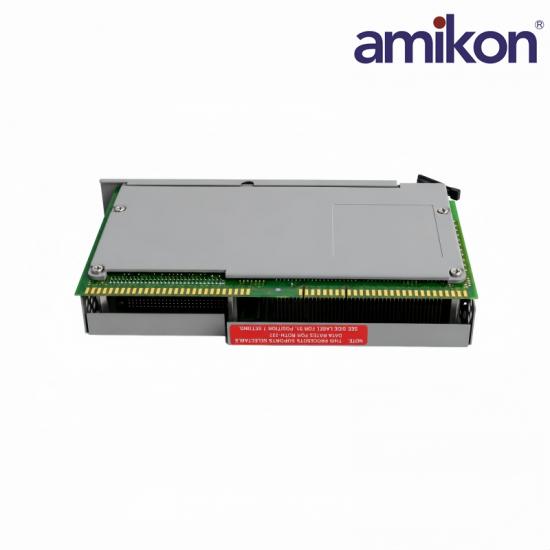

1785-L40C15/F Series F Industrial Controller

1785-L40C15/F
1785-L40C15/F
1785-L40C15/F

1785-L40C15/F Series F Industrial Controller

✉  INQUIRE NOW

ORIGINAL MANUFACTURER · Dual-Media Network Controller

1785-L40C15/F

Series F Industrial Controller

MANUFACTUREROriginal Manufacturer
MODEL1785-L40C15/F
PART NUMBER1785-L40C15/F
PRODUCT TYPESeries F Industrial Controller
SYSTEM FAMILYDual-Media Network Controller
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    1785-L40C15/F
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    PLC Module
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    12 Months

Industrial Automation Module

1785-L40C15/F

Price and Availability Inquiry

The 1785-L40C15/F is a Series F chassis-based industrial controller with dual-media control-network capability and legacy remote-I/O communication.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1785-L40C15/F and required quantity in your inquiry.

1785-L40C15/F PRODUCT DATA

Technical Specifications

Identification, compatibility, installation and ordering data for 1785-L40C15/F.

01Product IdentityOfficial product data
MODEL1785-L40C15/F
CATALOG BASE1785-L40C15
SERIESF
PRODUCT TYPEIndustrial controller
02Communication CapacityOfficial product data
CONTROL NETWORK1 dual-media port
REMOTE NETWORK2 DH+ / remote-I/O ports
SERIAL PORT1 RS-232-C / 422-A / 423-A
MAXIMUM CHASSIS125 total
03Power & EnvironmentOfficial product data
BACKPLANE CURRENT3.3 A at 5 V DC
HEAT DISSIPATION59 BTU/h
OPERATING TEMPERATURE0 to 60 °C
HUMIDITY5–95% noncondensing
04Configuration & ServiceOfficial product data
REMOTE I/O CHASSISUp to 60
CONTROL-NETWORK CHASSISUp to 96
MAXIMUM USER MEMORY48K words
PROGRAM SCAN TIME0.5 ms/K bit logic; 2 ms/K typical

1785-L40C15/F PRODUCT SUPPORT

Application and Ordering FAQ

Product-specific compatibility, application, installation and ordering guidance for 1785-L40C15/F.

01

How should the “/F” suffix be interpreted for this controller?

It identifies the Series F hardware requested with the 1785-L40C15 catalog base; preserve both parts of the supplied identity.

02

Which network connections are provided?

Published data lists one dual-media control-network port, two DH+ or remote-I/O ports and one serial port.

03

How much backplane current must be allowed?

The published Series F controller specification lists 3.3 A at 5 V DC.

04

Which environmental limits apply during operation?

Plan for 0 to 60 °C operation and 5–95% noncondensing relative humidity in a suitable enclosure.

05

How many chassis can the controller address?

Published selection data lists up to 125 total chassis, subject to network and memory configuration limits.

06

Which backup component is associated with approved hot-backup designs?

The 1785-CHBM cartridge is identified for supported hot-backup configurations; confirm the full design before use.

07

Which ordering identity prevents a series mismatch?

Specify 1785-L40C15/F exactly and confirm the nameplate series, firmware and application revision.
