Part Number: 1783-US6T2F

Product Family: Stratix Ethernet Switch

Weight: 1.69 lbs (0.77 kg)

Total Ports: 8

Copper (RJ45) Ports: 6 Fast Ethernet ports

SFP Ports: 2 Fast Ethernet Multimode preinstalled SFP fiber modules

Transmission Speed: 10 / 100 / 1000 Mbps

Supply Voltage Range:

12–48 V DC

18–30 V AC (50/60 Hz)

Nominal Supply Voltage: 24 V AC/DC

Power Input Rating: SELV compliant

Current Ratings:

Nominal Current: DC 250 mA / AC 500 mA

Maximum Current: DC 510 mA / AC 1100 mA

Current Rating Listed: 442.3 mA

Max Inrush Current: 0.41 A

Power Dissipation: 5.927 W

Maximum Power Consumption: 4.6 W

Operating Temperature: –10 °C to +60 °C (–4 °F to +140 °F)

Maximum Ambient Temperature: 60 °C (140 °F)

Maximum Surrounding Air Temperature: 60 °C (140 °F)

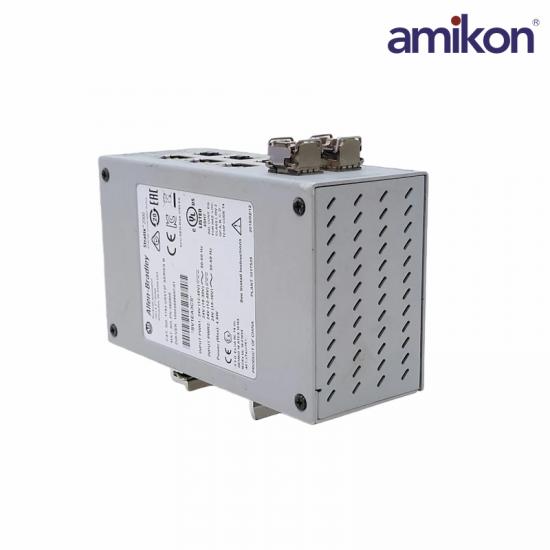

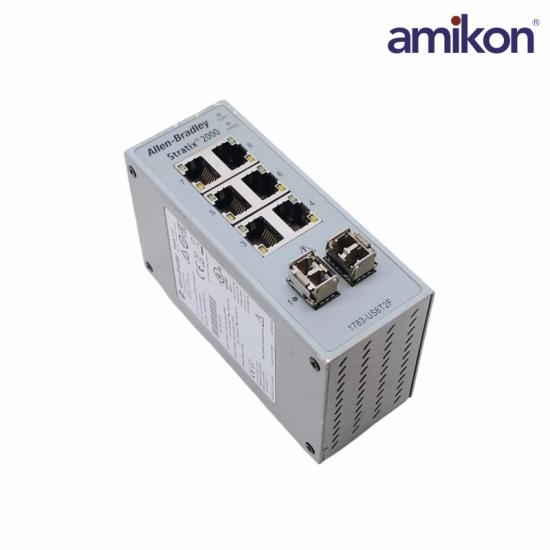

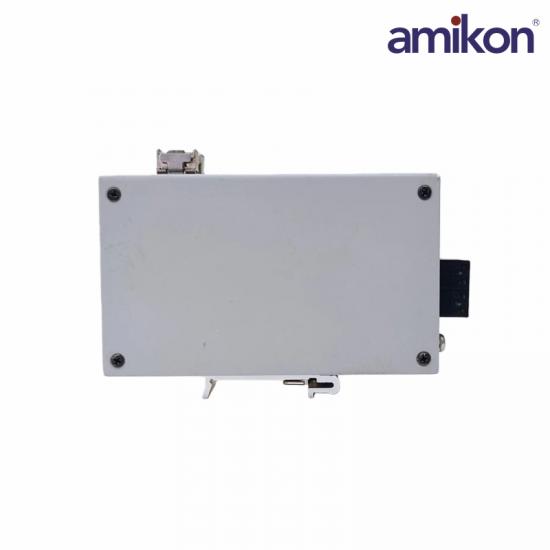

The 1783-US6T2F is an Stratix 2000 unmanaged switch. This industrial Ethernet switch is provided with a total of Eight (8) network ports, which are comprised of Six (6) RJ45 copper ports and built-in Two (2) SFP ports for insertion of option Small Form-Factor pluggable (SFP) transceiver modules. These ports are Fast Ethernet (FE) ports supporting 10/100 Mbps transmission speed. The 1783-US6T2F is an industrial-grade Ethernet switch that is designed for implementing Ethernet Fieldbus network, for integration and enabling of data exchange between PLC, PAC, Distributed or Remote I/O stations, Distributed Control Systems (DCS), Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA), Variable Frequency Drives (VFD), motor Soft Starters, Gateways, Media converters, and other devices. The 1783-US6T2F operates when connected to an external power supply that provides 24 VDC / 24 VAC nominal supply voltage while the accepted supply voltage range is 18-60V DC, 18-30V AC 50/60 Hz AC input frequency, Class 2/SELV power supply. It has a current rating of 442.3 mA and power dissipation of 5.927 Watts. To establish an Ethernet connection, use RJ45 connector according to IEC 60603-7, and 2-pair or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702 with a minimum insulation rating of 82 °C (180 °F). For input power connections, the appropriate cable is 0.82-2.5 mm2 (18-14 AWG) twisted-pair copper wire suitable for an ambient temperature of 82 °C (180 °F). This Ethernet switch supports DIN rail mounting with an open-type enclosure.
