Dimensions: 6.8" x 2.5" x 3.0"(17.1 cm x 6.3 cm x 7.6 cm)

Weight: 0 lbs 14.4 oz (0.4kg )

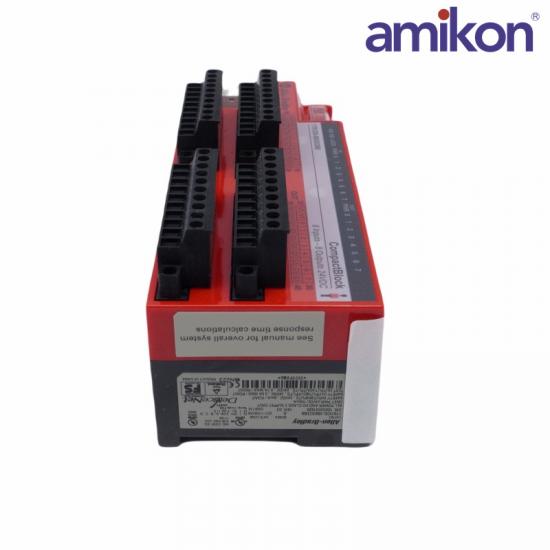

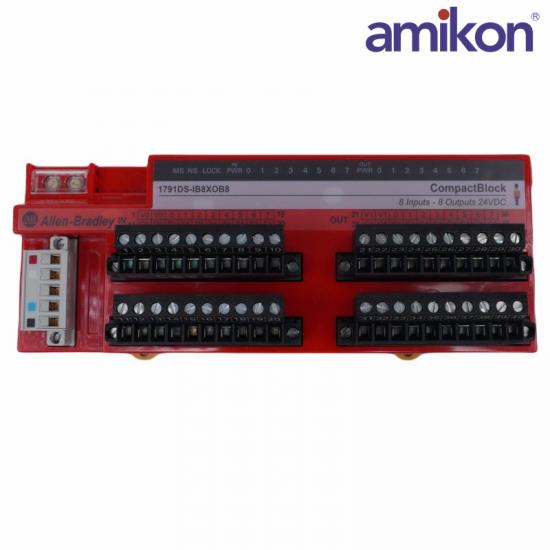

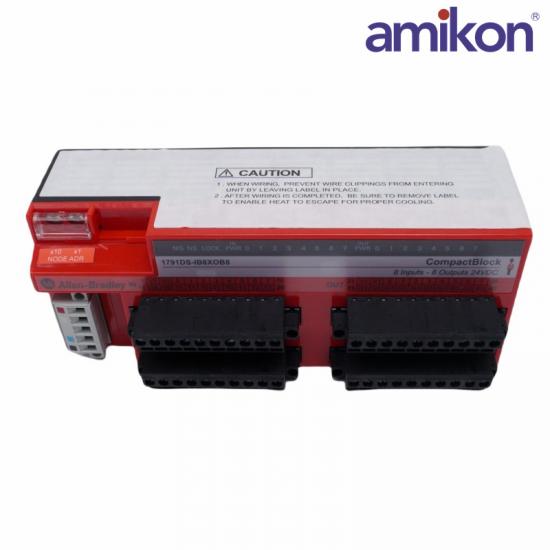

1791DS-IB8XOB8 I/O DeviceNet Safety Output Module

The 1791DS-IB8XOB8 I/O DeviceNet Safety Output Module is a robust safety I/O module designed for use in industrial environments where safety and reliability are critical.

This 1791DS-IB8XOB8 module is part of the 1791DS series, which is specifically tailored for safety applications using DeviceNet communication protocol. It combines both input and output capabilities in a single device, providing a comprehensive solution for safety and control systems.

791DS-IB8XOB8 Inputs: 8 discrete safety-rated inputs for monitoring safety sensors or emergency stop devices.

Outputs: 8 discrete safety-rated outputs for controlling actuators, safety relays, or other output devices based on input conditions.

791DS-IB8XOB8 Configurable via the RSLogix 5000/Studio 5000 software or through standard DeviceNet tools, making installation and setup easier for engineers.

Input Type: 8 discrete safety inputs (sink or source).

Voltage Range: 24 VDC.

Input Voltage Rating: 24 VDC (nominal) with a range of 18–30 VDC.

Input Current: 10-15 mA per input (typical).

Output Type: 8 discrete safety outputs (can be configured as either sinking or sourcing).

Output Voltage: 24 VDC (nominal).

Maximum Output Current: 2 A per output.

Power Consumption: Typically 1.5 W, but dependent on configuration and load.

Connector Type: 5-pin terminal block for DeviceNet communication.

Operating Temperature: 0°C to 55°C (32°F to 131°F).

Storage Temperature: -40°C to 85°C (-40°F to 185°F).

Humidity: Up to 95%, non-condensing.
