Question 1: How do I connect I/O modules to the 5069-L306ER controller?

Physical Connection: Insert the I/O modules into the system I/O rack. Ensure that the connectors are securely attached.

Configure I/O in Studio 5000: In Studio 5000, go to the “Controller Organizer,” right-click on I/O configuration, and choose “New Module” to add the necessary I/O modules.

Set Module Parameters: Choose the appropriate I/O module and configure its parameters such as module type and the number of input/output points.

Download Configuration: After configuration, download the setup to the controller to ensure the I/O modules are correctly recognized.

Question 2: What should I do if the 5069-L306ER controller is not starting?

Check the Power Supply: Ensure that the controller’s power supply is properly connected, and the power indicator light is on.

Check Status LEDs: The LEDs on the controller can show fault codes.

Use Studio 5000 Diagnostics: In Studio 5000, use the diagnostic tools to check detailed error messages from the controller.

Verify I/O Connections: Ensure that all I/O modules are correctly installed and connected. Faults can sometimes be caused by issues with the I/O modules.

Restart the PLC: Try restarting the controller, as some issues may be resolved by a simple reboot.

It integrates seamlessly into various applications across the food processing, petrochemical, pulp and paper, and manufacturing sectors, offering efficient control and monitoring capabilities.Processor Speed:Up to 1 MHz

Memory Capacity:5 Megabytes

Ethernet/IP Nodes:60

USB Ports:1 Type B 2.0 Full-Speed

Dimensions (WxDxH):5.4 x 0.9 x 4.2 inches

Weight:0.39 pounds (175 grams)

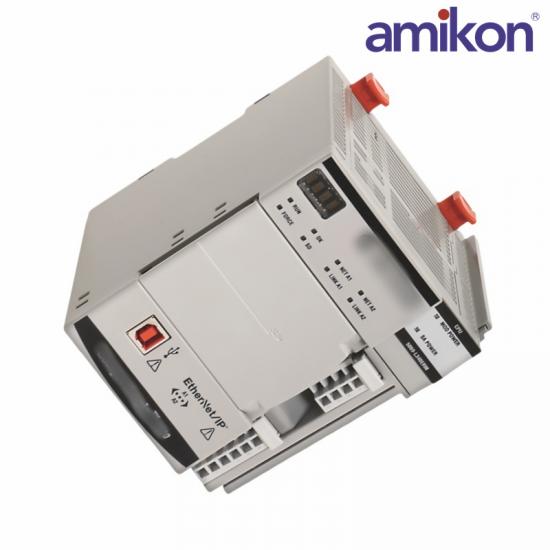

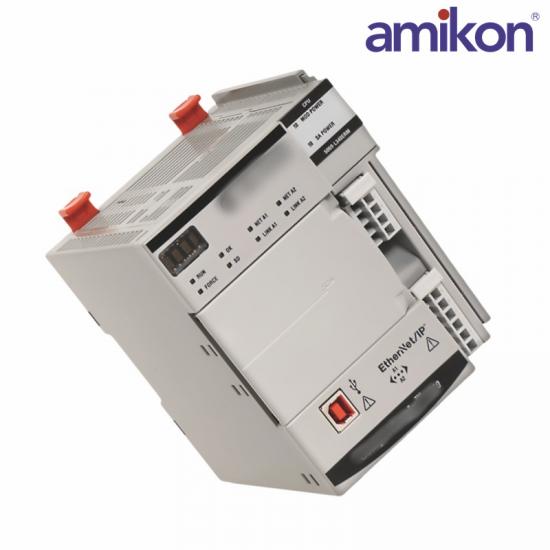

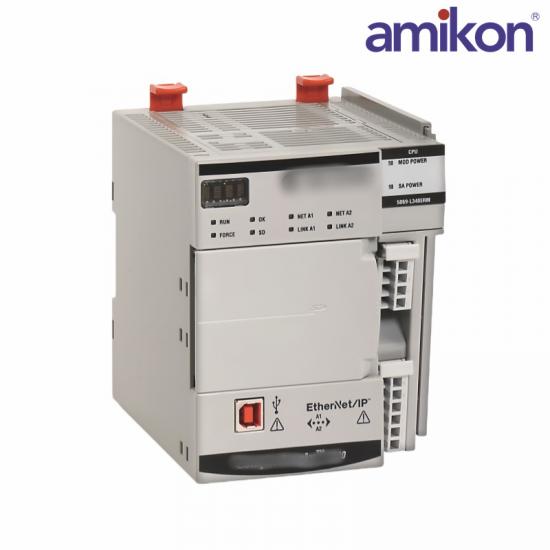

The  5069-L306ER Controller boasts a robust architecture that enables high-speed processing and seamless communication, making it an ideal choice for demanding industrial environments.

Featuring advanced application memory, this 5069-L306ER system allows for the efficient storage and execution of complex control algorithms, enhancing operational efficiency and productivity.

With its extensive support for Ethernet/IP nodes, this 5069-L306ER control system facilitates integration with a wide range of industrial devices and networks, ensuring a cohesive and scalable solution.

The 5069-L306ER inclusion of a USB port offers convenient connectivity options for programming, diagnostics, and data exchange, enabling users to easily manage their systems without compromising on performance.
