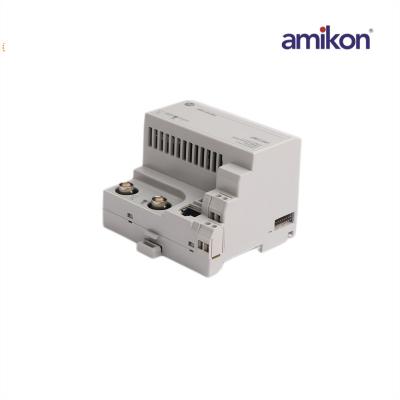

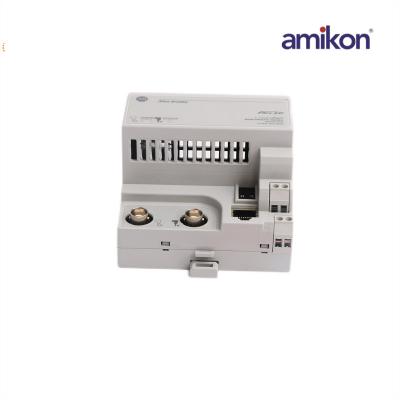

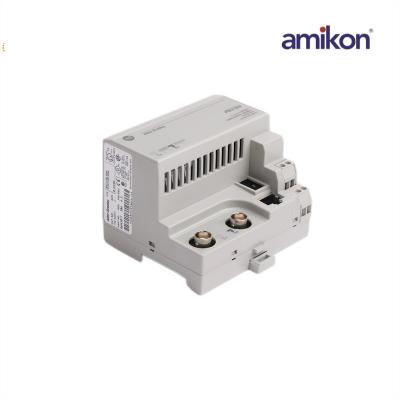

1794-ACNR15 Flex Controlnet Adapter

Product Origin:  USA

Manufacturer：AB

Dimension: 9.3cmx8cmx6.7cm

Weight:0.22KG

The 1794-ACNR15 can be mounted using a DIN rail or wall mount with Torque requirement of 7 pound-inches. The module’s dimensions are 87x 94x 69 millimeters and it weighs approximately 220 g (7.76oz). The 1794-ACNR15 has a T4 temperature code and dissipates 3.4 W of heat at 19.2 Volts DC in an open-style enclosure type rating. It has an operational temperature range between -25 and 55 degrees Celsius (-13 and 131 degrees Fahrenheit) at 5-95% non-condensing relative humidity. It has a maximum operational shock rate of 30G and can reach 50G in non-operational mode and a 5.0G operational vibration at 10 to 500 Hertz.

The 1794-ACNR15 supports ControlNet protocol. It may be used to implement redundant ControlNet topology by connecting to the ControlNet trunk connection. The 1794-ACNR15 has Two (2) ControlNet communication ports, each port connecting to the individual trunks. When one ControlNet trunk fails, data is automatically routed to the second ControlNet trunk.The 1794-ACNR15 is a Redundant ControlNet communication module. This module is a component product of the Flex I/O product family that is used for implementing distributed I/O in various applications and industries.
