Description：

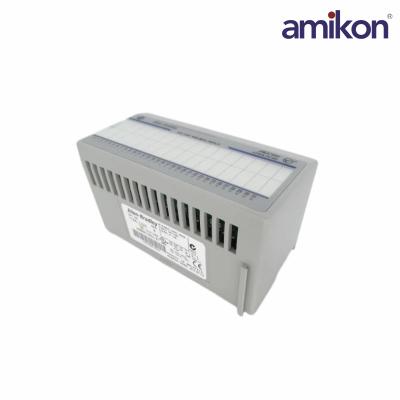

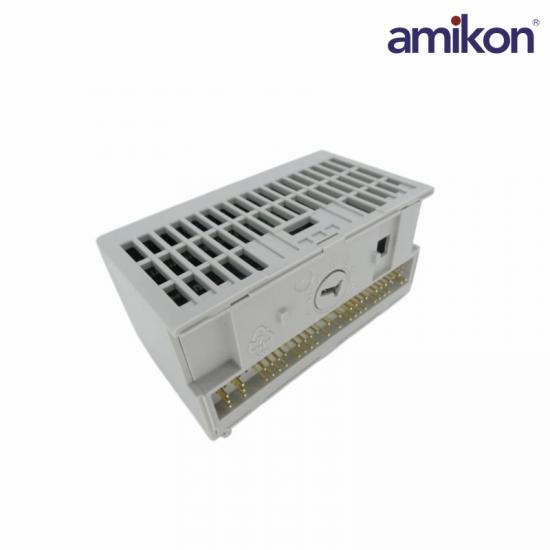

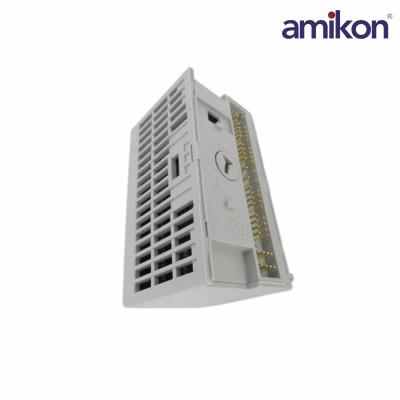

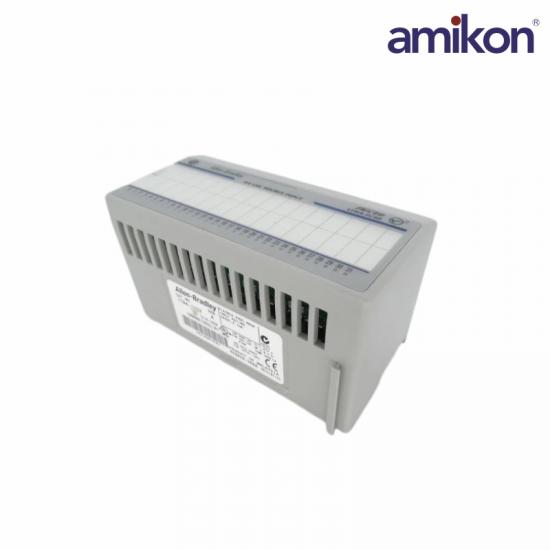

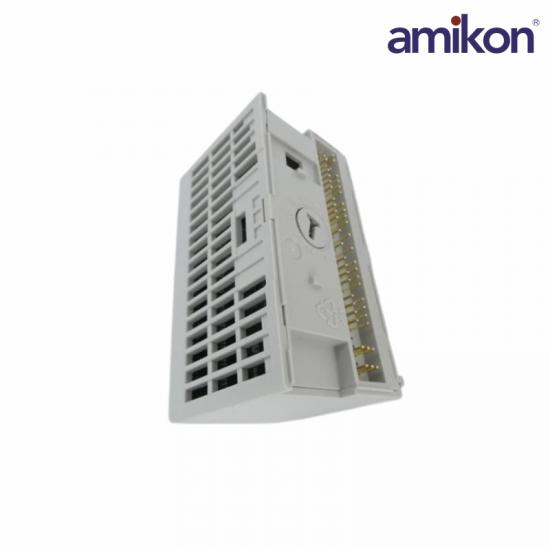

The 1794-IV32 is part of the Flex I/O platform, typically used in implementing distributed I/O topology. This module is specifically a high-density discrete input module that features Thirty-Two (32) current sourcing input channels. This module is designed to accept nominal input signal voltage of 24 VDC, enabling integration of discrete input signals such as switches, auxiliary contacts, sensors, and similarly binary operating devices. The 1794-IV32 is installed along with a Flex I/O assembly with a Flex I/O communication adapter as the header module. The data within the 1794-IV32’s local memory is transferred via the FlexI/O bus which is then forwarded to the host controller through a communication highway. The 1794-IV32 has a FlexBus current draw of 40 mA at 5 VDC. It has a minimum On-state voltage of 19.2 VDC while the maximum On-state voltage is 31.2 VDC. Additionally, the minimum On-state current is 2.0 mA while the maximum is 6.0 mA. Configurable filter times are available to this module specifically, 0.25 ms; 0.5 ms; 1 ms; 2 ms; 4 ms; 8 ms; 16 ms, and 32 ms. Filter times can be used to eliminate false activation due to debouncing or noises. The default filter time is 0.25 ms.

Specification：

Frequently asked questions

1.What are the available input filter times available to this module?

Available input filter times are 0.5 ms; 1 ms; 2 ms; 4 ms; 8 ms; 16 ms; and 32 ms.

2.What is the input voltage range of the 1794-IV32?

The 1794-IV32 accepts input signal voltage range of 19.2 - 31.2 VDC.

3.What is the number of input channels available to the 1794-IV32?

The 1794-IV32 has 32 input channels.

4.What is the input voltage signal accepted by the 1794-IV32?

The 1794-IV32 is designed to operate at 19-2 - 31.2 VDC.

5.Can I use the 1794-IV32 as distributed I/O module of PLC 5 series?

Yes Flex I/O modules are compatible with Flex I/O series.

Product Applications

Electronics and Semiconductors: Providing distributed signal acquisition in automated conveying and precise assembly equipment in cleanroom environments

Steel and Metallurgy: Applied for raw material transportation in harsh environments, blast furnace monitoring, and metal processing control systems.

Petroleum and Natural Gas: Deployed as distributed I/O in remote control cabinets, communicating with the central controller via EtherNet/IP or ControlNet to monitor valve status and pressure switches.

Power System: Collecting a large number of discrete quantity status signals in the auxiliary machine control and distribution monitoring systems of power plants.

Water Treatment and Environmental Protection: In remote I/O stations of sewage treatment plants and water supply plants, monitoring pump operation, liquid level alarms, and valve feedback.
