Description：

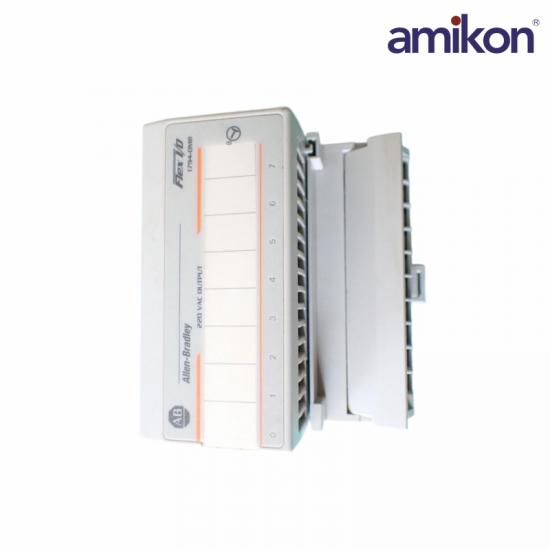

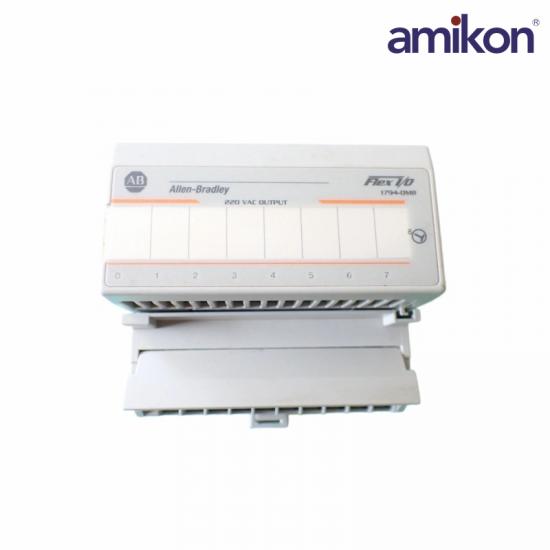

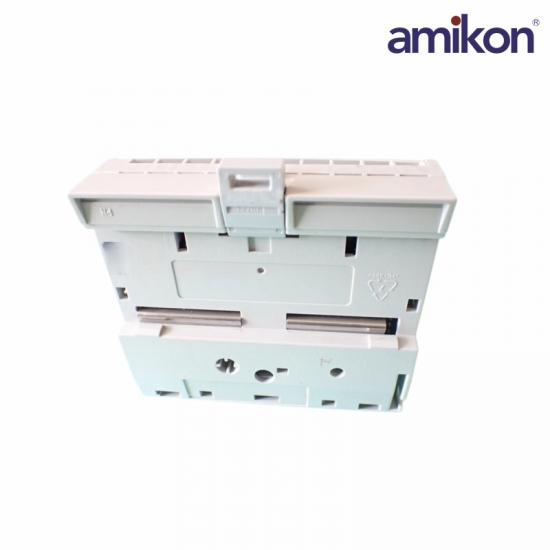

The 1794-OM8 is a 1794 FLEX Digital AC Output Module. It is fitted inside the terminal bus, making a connection with the field devices and the I/O bus. Modules can be inserted or removed under power since the I/O module does not have any direct wiring. It in turn saves time and removes system restarting inefficiency. The 1794-OM8 module has 8 outputs. It has 220V AC nominal On-State output voltage 159 – 264V AC On-State output voltage range 500mA maximum and 5mA minimum at 55 °C current per output and 4A (8 outputs at 500 mA) maximum current per module. It has a maximum power dissipation of 5W at 0.5A. Terminal Base units compatible with it are the 1794-TBNF and the 1794-TBN. It is installed using a DIN rail by snapping it onto the DIN rail. It has various communication options such as ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O. The 1794-OM8 module has 16 yellow LED status indicators for each channel indicating the corresponding input device and output signal. It also has XT versions of standard modules for operating in extreme environments, which reduces panel and maintenance costs. It has a 0 - 55 °C (32 - 131 °F) operating temperature and a 5 - 95% noncondensing relative humidity.

Specification：

Frequently asked questions

Q1: What is the 1794-OM8 module?

A1: It is a digital output module from the FLEX I/O series, designed to control AC-powered field devices in industrial systems.

Q2: How many outputs does this 1794-OM8 module provide?

A2: The 1794-OM8 module offers 8 non-isolated output channels for controlling multiple loads.

Q3: What is the 1794-OM8 nominal output voltage?

A3: It operates at a nominal output voltage of 240 V AC.

Q4: What is the 1794-OM8 output current rating?

A4: The 1794-OM8 module has an overall output current rating of 4.0 A.

Q5: What is the 1794-OM8 maximum on-state current per output?

A5: Each output channel supports a maximum on-state current of 500 mA.

Product Applications

Automobile manufacturing and assembly plants: Used for pneumatic electromagnetic valve control, workstation alarm indicators, and small AC motor drives in body workshops and assembly lines.

Food and beverage processing plants: Control actuators in packaging lines, sorting systems, and material conveyance.

Water treatment and waste management: Control AC control circuits for distributed pumping stations, valve opening degrees, and chemical dosing systems.

Oil, gas, and chemical industries: Utilize its XT version (if applicable for more demanding environments) for signal output in process control.

Heavy industry and metallurgy: Reduce long-distance wiring from the central control room to the site in remote I/O cabinets of steel mills and power plants.

Semiconductor and electronic manufacturing: Used for automated equipment control in cleanroom environments.
