Category: Drives

Part Number: 2094-PRS3

Weight: 4.25 lbs (1.93 kg)

Module Type: Slim Power Rail

Product Description: Power Rail

Applications: 230 or 460 Volt Drive Systems

Module Capacity: 1 IAM, 2 Additional

Number of Axes: 3-Axes

Compatible Voltage Class: 200 V / 400 V class drives

Compatible Drive Voltage: 230 VAC / 460 VAC

Bus Voltage: 325 VDC / 650 VDC

Peak Current: 70 Amperes

No.  of Axis: 3-Axis

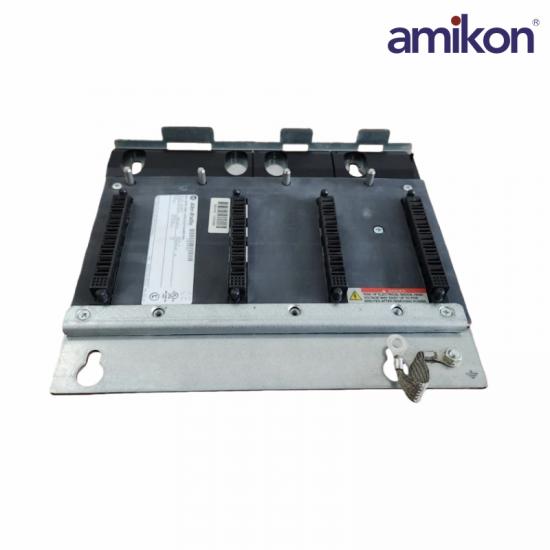

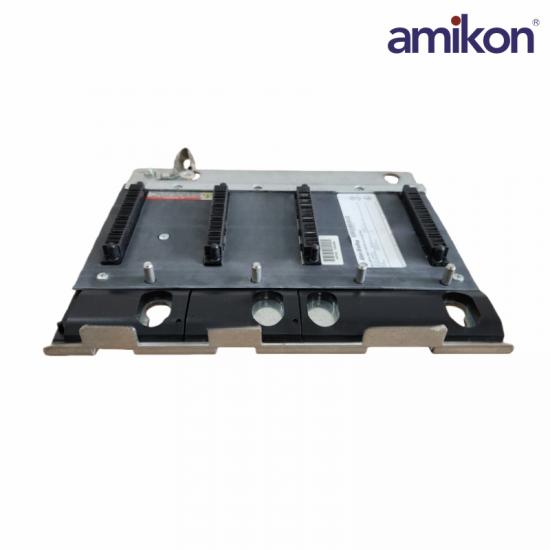

The 2094-PRS3 is a motion control system accessory module.   This power rail is a 3-axis power rail that supports the installation of a single bulletin 2094 Integrated Axis Module (IAM) and up to Two (2) additional drive modules such as axis modules, shunt modules, and slot-filler modules.   The left-most slot of the 2094-PRS3 and other power rails is the converter slot which is intended for the installation of the IAM module.   Other remaining slots are used by the AM, IPIM, shunt module, and others.   When installing modules to the power rail, it is recommended to install the module with the highest current rating to the left-most side.   Module current rating must be in decreasing order.   The 2094-PRS3 has an incoming bus voltage rating of 325 VDC / 650 VDC with a peak current of 70 Amperes.   It is mounted directly to the enclosure subpanel via the provided mounting tabs.   An enclosure subpanel that is paint-free or zinc plated steel improves the bond between the power rail and subpanel.   Additionally, it is supplied with One (1) grounding strap, braided, and measures 100 mm or 3.9 inches.   Protective covers for each of the power rail connectors are also included to protect the exposed electronic circuitry.   This power rails measures 195.6 mm or 7.70 inches (height) x 276.9 mm or 10.90 inches (length) x 25.4 mm or 1.0 inches (depth).
