Category: Drives

Part Number: 2094-PRS4

Weight: 5.25 lbs (2.38 kg)

Module Type: Slim Power Rail

Applications: 230 or 460 Volt Drive Systems

Module Capacity: 1 IAM, 3 Additional

Number of Axes: 4-Axes

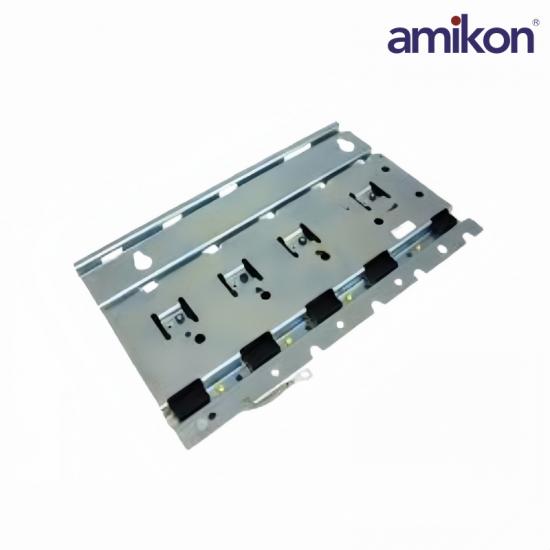

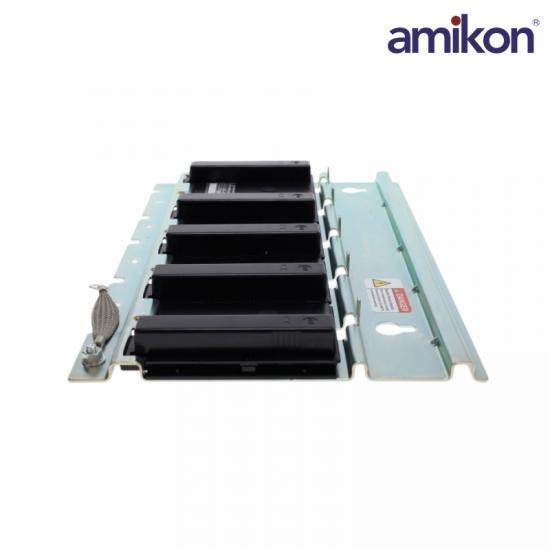

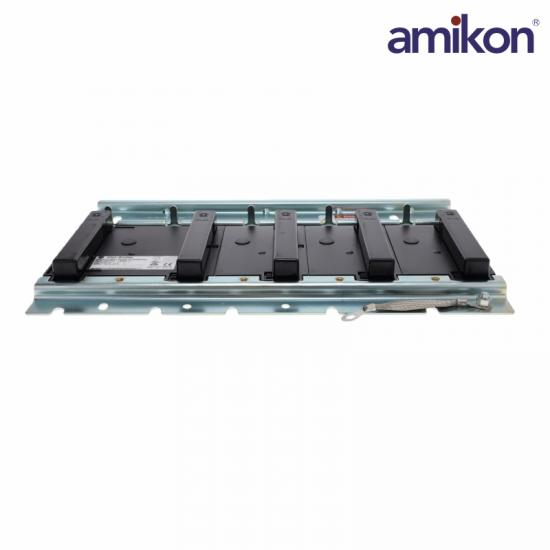

The Bulletin 2094-PRS4 is part of a family of slim power rails and it has slots for converter and inverter drive modules. It is compatible with either 230 Volts or 460 Volts drive systems. This part has four inverter slots (axes) which a drive module can mount on. Out of these four slots, three at most are allocated for integrated axis modules (IAM**)** and the remaining one can accommodate adjacent axis (AM), shunt, or slot-filler inverter modules.

Installing the 2094-PRS4 is done by mounting a 200 Volts class or 400 Volts class IAM module onto up to three out of the four inverter slots by screwing M6 metric bolts onto a cabinet. Before mounting, an enclosure should have space for the power rail and the user should know the dimensions of the mounting slot. By applying a torque of 45.0 pounds on an inch, the user can fasten a bolt that holds the subpanel and the power rail. Installation is complete when the user attaches the bonded cabinet ground to the braided grounding strap. The 2094-PRS4’s fourth slot is exclusively for a converter IAM module. Hence, shunt, IPIM, and AM modules have an allocation for inverter slots only and cannot use the converter slot.
