Product Type: PanelView 300 Component

Product Line: PanelView 600

Product Family: PanelView Standard Operator Terminals

Part Number: 2711-K6C16

Weight: 5.50 lbs (2.49 kg)

Display Type: Color active matrix TFT

Display Area: 115 x 86 mm (4.54 x 3.4 in.)

Resolution: 320 x 234

Backlight Life: 50,000 hr (1/2 life at 25 °C / 77 °F)

Communication: RS-232 (DF1) and RS-232 Printer/Download

Communication Ports: RS232 (DF1); RS232 (Printer)

Input Voltage Range: 85…264V AC

Input Frequency: 47…63 Hz

Input Power: 85–264 VAC

Memory: 240 KB

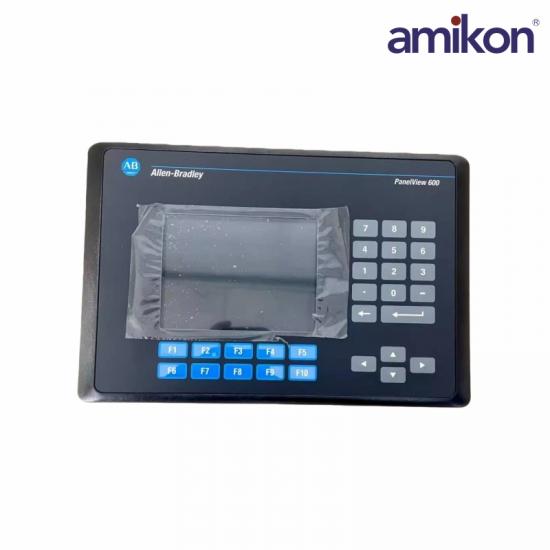

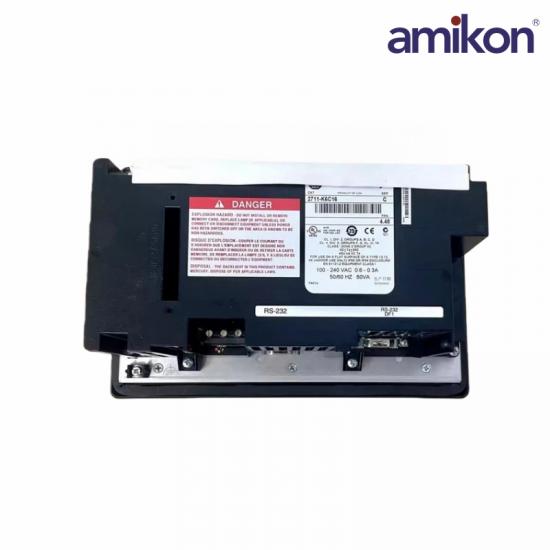

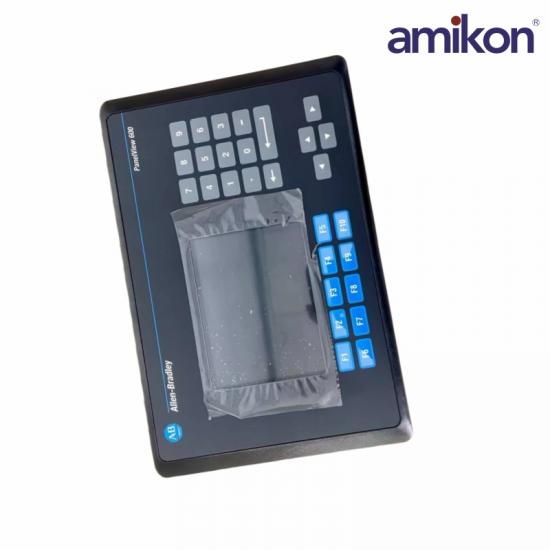

The PanelView 600 2711-K6C16 is an operator terminal that enables the user to interface with their machine. This HMI has a 5 in. Color Display. This PanelView allows the user to connect to automation controllers via the one of the embedded RS-232 interface that supports DF1 protocol. Additionally, it has a secondary RS232 port used for Printer communication and Downloading of PanelView applications. This communication port is compatible with the 2711-NC14 communication cable.

The user is able to control the HMI using the Keypad to input information and data. This unit is powered using 85-264 VAC power. This unit has 240 KB non-volatile memory and 140KB Random Access (runtime) memory.
