Category: Drives

Product Line: SMC-Flex

Product Family: SMC Flex Smart Motor Controller

Bulletin Number: 150

Part Number: 150-F480NBDD

Weight: 88.00 lbs (39.92 kg)

Control Voltage: 100…240V AC (5…480 A units)

Input Line Voltage: 200 to 460 Volts AC, 3-phase, 50 and 60 Hertz

Rated Voltage: 200 to 460 Volts AC

Maximum Output Current: 480.0 A

Maximum Output Power: 400 HP

Controller Rating: 480 Amps, 400 Horsepower at 460 Volts AC

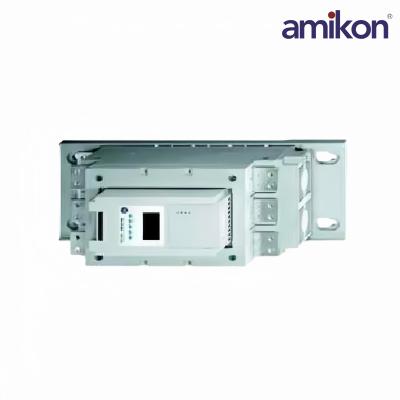

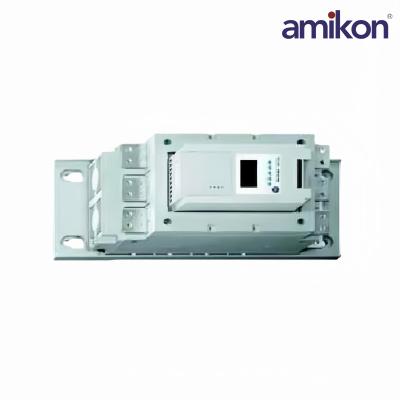

The 150-F480NBDD is an SMC Flex Smart Motor Controller. This motor controller is a solid-state device with a built-in microprocessor and fully configurable parameters to allow this controller to efficiently control an AC motor through the controller’s embedded parameters.

The 150-F480NBDD efficiently operates a motor via Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop. These available operational modes cover motor starting, stopping even idle operational states. It effectively protects the motor from improper operation as well as reduce energy consumption by eliminating unnecessary shift in the motor’s operational state.
