Description：

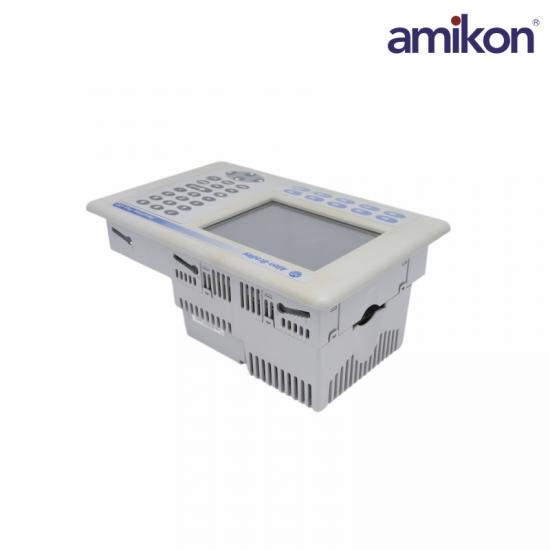

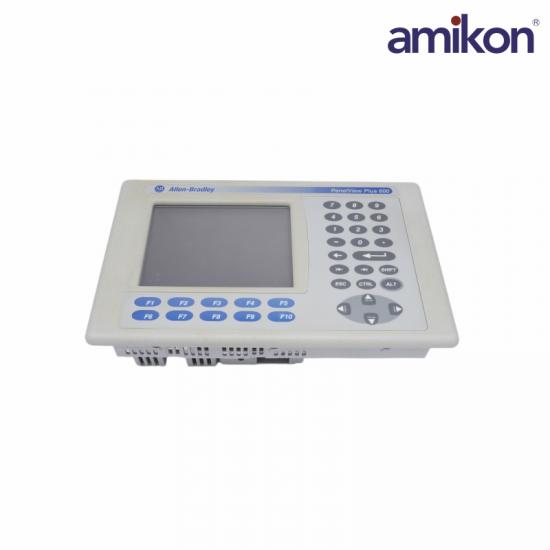

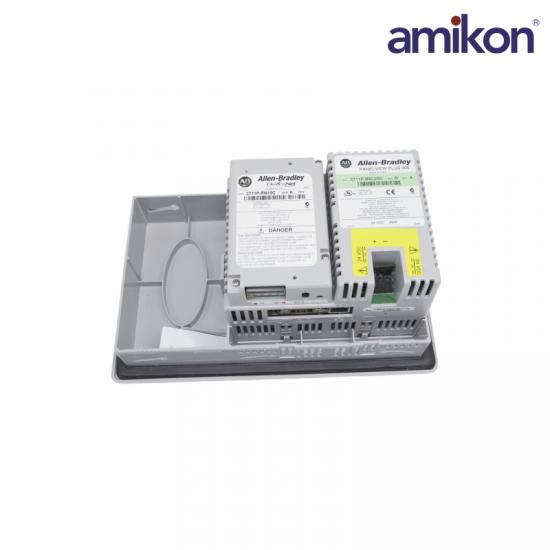

The display module with catalog number 2711P-RDK10C is a PanelView Plus 1000 and PanelView Plus 6 1000 operator terminals. The 2711P-RDK10C is a replacement module for the existing display module of PanelView Plus Human Machine Interface (HMI) device. It is responsible for displaying the runtime interface of process, allowing operators to view the status of the process and implement control actions accordingly.

This display module has a screen size of 10.4-inches with a resolution of 640 x 480 pixels and a display area of 211 x 158 millimeters (8.3 x 6.2 inches). It may only be used with keypad operated terminals as it is not equipped with touch sensitive cells. This display module has adjustable contrast and brightness settings which are accessible via the terminal configuration environment.

Specification：

Frequently asked questions

Q1:Which terminal is the 2711P-RDK10C compatible with?

A1:The 2711P-RDK10C Display Module is compatible with PanelView Plus 1000 Model Terminals.

Q2:What is the display size of the 2711P-RDK10C Display Module?

A2:The 2711P-RDK10C PanelView Plus Display Module has a 10.4 in, color display.

Q3:What is the operator input for the 2711P-RDK10CDisplay Module?

A3:The 2711P-RDK10C PanelView Plus Display module features a keypad input.

Q4:Does the 2711P-RDK10C support removal and insertion under power?

A4:No. Replacement and installation actions must be carried out without power applied to the operator terminal.

Q5:Does the 2711P-RDK10C support display rotation?

A5:No. Screen rotation is not supported by any of the compatible terminals.

Product Applications

Automotive manufacturing and assembly lines: Used in stamping, welding, and painting workshops. Physical buttons prevent accidental touch operations caused by metal sparks or electromagnetic interference in the workshop.

Oil, gas, and petrochemical industries: Deployed in drilling control consoles, pump stations, and refinery monitoring. Keyboard operation allows for accurate input even when operators are wearing chemical/cold-weather gloves.

Metallurgical and mining machinery: Used in blast furnace control, rolling mill lines, and ore crushing equipment. Its robust structure can withstand the continuous high vibrations and high dust environments from large machinery.

Heavy machine tools and metal processing: Serves as the control panel for CNC or large forging presses, facilitating frequent, mechanized numerical and command input by workers.

Water treatment and environmental engineering: Used as a remote or on-site monitoring terminal for wastewater treatment pump stations and chemical dosing control systems.
