Part Number : 2711P-T12W22D9P-B/B

Product Line: PanelView Plus 7

Input Type: Touchscreen

Display Size: 12.1 inches

Display Color: Color

Memory: 512 MB

Input Voltage: 24 VDC

Backlight: LED

Weight: Approximately 5.6 lbs (2.54 kg)

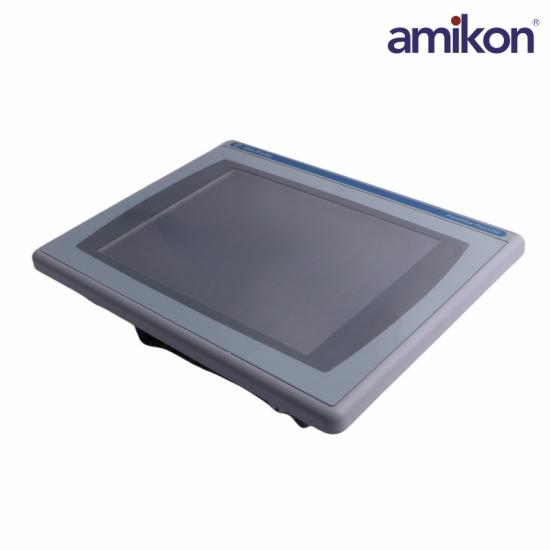

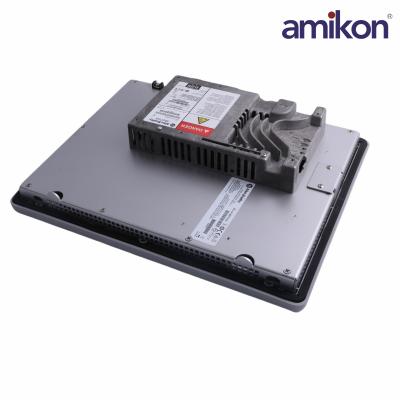

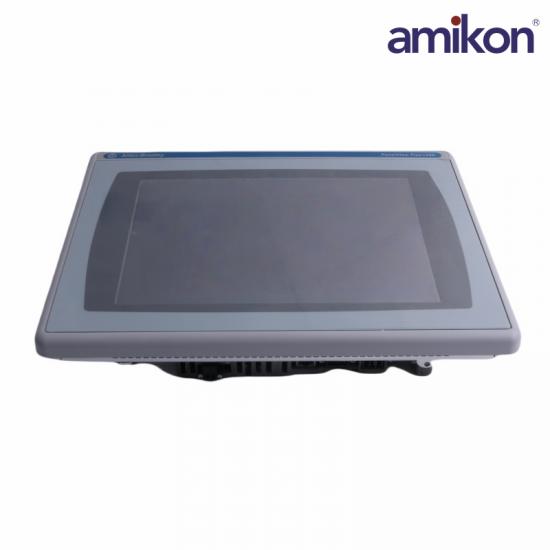

The 2711P-T12W22D9P-B/B interface terminal is a standard type of operator interface terminal that has been designed and manufactured.  It is a brandless and DC-powered operator interface terminal that is available through the Panelview Plus 7 series.  The 2711P-T12W22D9P-B/B operator interface terminal is designed to operate at 24 Volts DC nominal voltage and at 18 to 30 Volts DC input voltage.

The 2711P-T12W22D9P-B/B PanelView Plus 6 Performance Terminal is an HMI module (human machine interface) that weighs about 2.54 kilograms and measures 24.62 x 34.01 x 6.95 centimeters. This unit requires 24 Volts DC input voltage with a maximum power consumption of 50 Watts. Its widescreen aspect ratio of 16:10 along with its 18-bit color graphics and its 1280 x 800 WXGA resolution provide a clear display on its 12.1 inch backlit TFT touch screen. Various touch screen gestures, such as tap, double tap, drag, and long press are supported on this screen. “Closed system environment” is the default pop up when the device is started, but it can be manually changed to “open system for desktop access”.
