Display Size: 19 in.

Part Number: 2711P-T19C22D9P

Product Family: PanelView Plus 7 Performance terminals

Operator Input: Touch

Display Type: Color active-matrix TFT

Display Area: 376 x 301 mm (14.8 x 11.9 in.)

Resolution: 1280 x 1024 SXGA, 18-bit color graphics

Touch: Analog resistive

Actuation: 1 million presses;  operating force: 100 g

Communication Ports: Two (2) Ethernet, Three (3) USB host

Input Voltage Range: 18–30 VDC

Power Consumption: 50 W max (2.1 A at 24 VDC)

Backlight: White LED, solid-state

Product Line: PanelView Plus 7

Input Type: Touchscreen

Display Color: Color

Memory: 512 MB

Input Voltage: 24 VDC

Backlight: LED

Weight: 12.4 LBS

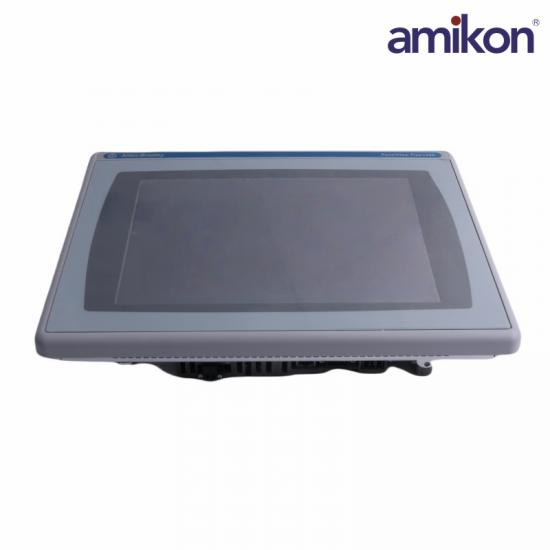

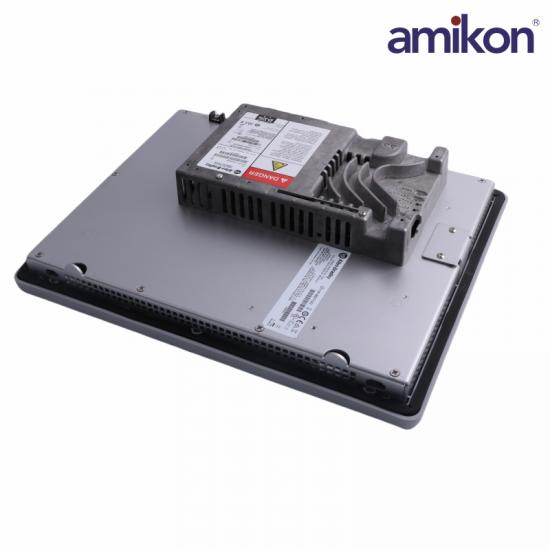

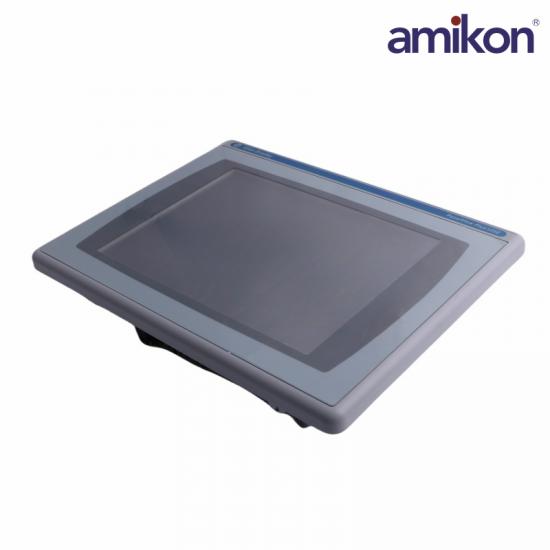

The 2711P-T19C22A9P is a PanelView Plus 7 Performance operator terminal.  It is an electronic device that is powered by an external supply voltage of 18-32VDC.  It performs proves visualization and control and provide user and operators to control a process or machine near the application or remotely from a convenient location.

Being a 19-inch PanelView Plus 7 terminal, it has the largest display screen.  It features 18-bit color screen with display resolution of 1280 C 1024 pixels and viewing area of 376 x 301 mm (14.8 x 11.9 in.).  This allows designing of a process mimic with a high degree of detail and information.  It is equipped with a backlight that is capable of providing contrast and lighting to screen at a minimum lifespan of 50,000 hrs when operated at the recommended temperature of 40 Degree Celsius or 104 Degree Fahrenheit.  It allows operator to initiate control inputs, data change commands and navigation actions via the analog resistive touchscreen that is rated to operate up to 1 million actuation at an operating force of 100 grams.
