Brand/Manufature:
PLC ModuleProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooProduct Family: PanelView Plus 6 Compact Terminals
Product Type: PanelView Plus 6 600 Compact Terminals
Display Size: 5.7 in.
Display Type: Color active-matrix TFT
Display Color: Color
Display Area: 115 x 86 mm (4.5 x 3.4 in.)
Resolution: 320 x 240, 18-bit color
Backlight: White LED, not replaceable; 25,000 hours min at 25 °C (77 °F)
Touch: Analog Resistive
Operator Input: Touch
Integrated Ports: Ethernet, RS-232, 2 USB host
Communication: Ethernet and RS-232
Input Voltage Range: 18–32 VDC
Input Power: 24 Volts DC
Lifecycle Status: End of life
Part Number/Catalog No.: 2711PC-T6C20D8

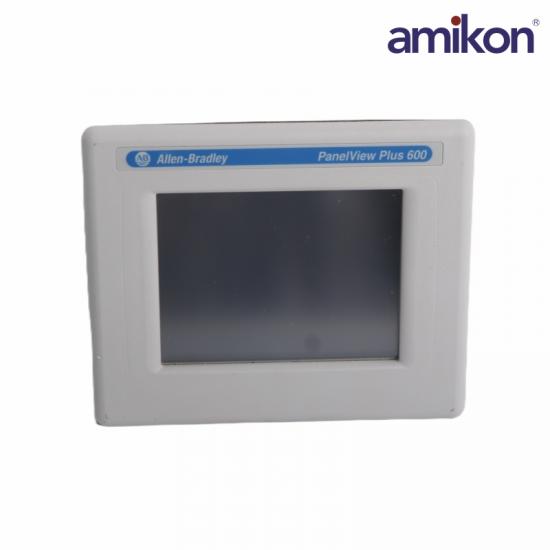

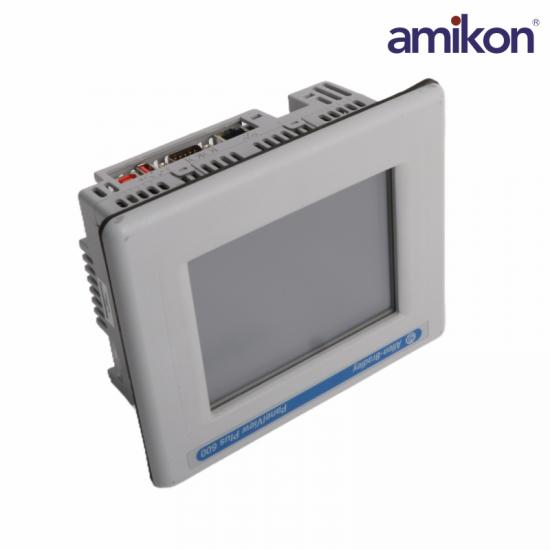

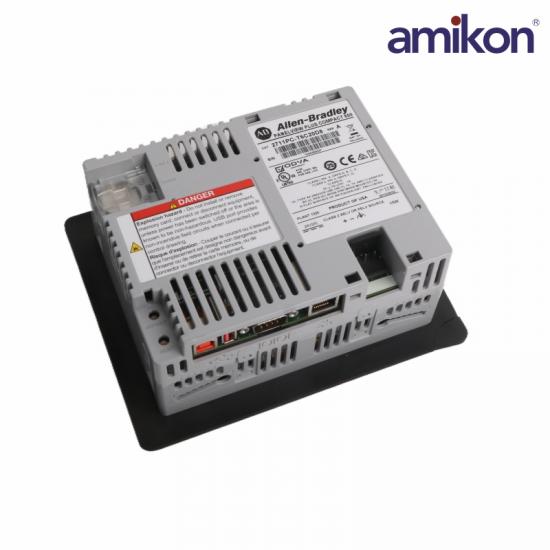

The 2711PC-T6C20D8 is a PanelView Plus 6 Compact 600 Graphics Terminal. It displays application status information graphically and lets the user control and monitor the data via its Human-Machine Interface (HMI). It is a subset of the PanelView Plus 6 terminals with selective functionality that requires up to 25 displays and up to 200 alarm messages. The 2711PC-T6C20D8 has a 5.7-inch TFT color display with a touchscreen resolution of 320 x 240 and 18-bit graphics. It has a dimension of 6 x 7.28 x 2.86 inches, a weight 1.31 pounds, an 18 to 30 Volt DC input power and a 256 MB RAM memory. For communication, it supports an Ethernet port and an RS-232 serial port. The 2711PC-T6C20D8’s increased processor speed, system memory, and illumination put it a step ahead from other PanelView Plus Compact Terminals. External peripherals such as keyboards can be connected to it. The 2711PC-T6C20D8 also supports remote connectivity and ActiveX controls. For installation, it supports Panel Mounting with NEMA, UL, or IP-rated enclosures. To read documents, the 2711PC-T6C20D8 has a built-in PDF viewer. In case of a system malfunction, it creates a backup for data restoration. It uses vector-based graphics and CSV files for data management. The 2711PC-T6C20D8 also facilitates data storage and modification with its log-in feature.
