Specification |
Value |
|
Model |
2711R-T4T |
|
Type |
PanelView 800 HMI Color Terminal |
|
Operator Input |
Touch / Keypad |
|
Display Type |
Color transmissive TFT active matrix LCD, widescreen format |
|
Backlight |
40,000 hours |
|
Display Area |
95 x 53.9 mm (3.74 x 2.12 in.) |
|
Resolution |
480 x 272 |
|
Touchscreen |
Analog Resistive, 1 million presses |
|
Keypad |
Four (function keys (F1 to F4)) |
|
Integrated Ports |
Ethernet, RS-232, RS422 / RS485, USB |
|
Integrated Memory |
256 MB Flash Memory; 256 MB DDR RAM |
|
Input Voltage Range |
18-32VDC |
|
Display Color |
Color TFT |
|
Input Type |
Analog touch and function keys |
|
Communication |
Serial and Ethernet |
|
Input Power |
24 VDC |
|
Memory |
128 MB |
|
Shipping Weight |
6 lbs |
|
Shipping Dimensions |
14 x 11 x 8 inches |

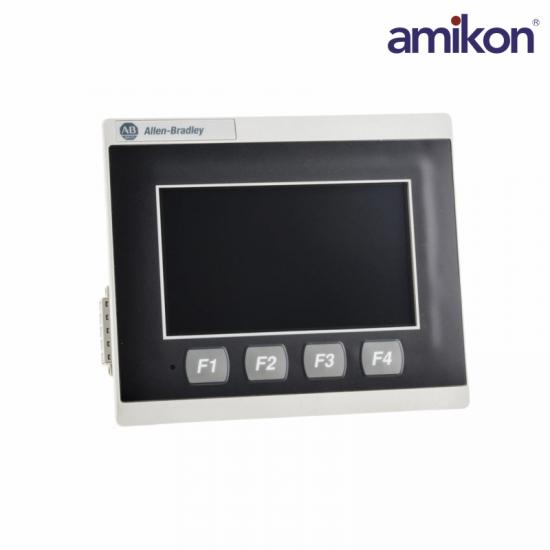

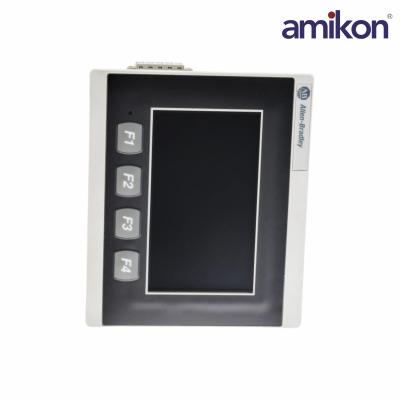

The 2711R-T4T is an graphic operator terminal that is part of the 2711R Product bulletin. This specific catalog number is a PanelView Micro 800 operator terminal that features a colored display screen, touch and keypad input interface and a variety of embedded communication ports that provides flexibility of connection.
It supports offline configuration and comes with commissioning tools for rapid engineering of the Micro 800 operator terminal.
The 2711R-T4T features a 4-inch Color transmissive TFT active matrix LCD screen supporting widescreen format with viewing area of 95 x 53.9 mm (3.74 x 2.12 in.) and pixel resolution of 480 x 272. It is installed with a backlight that is expected to operate at a minimum of 40,000 hours. This operator terminal is provided with analog resistive touchscreen and keypad interface. The keypad buttons are composed of Four (4) function keys from F1-F4 which can be assigned with local and global configurations.
This operator terminal is provided with a number of communication ports that supports networked and point-to-point connection. For networked application, The RS422 / 485 and Ethernet port may be used while the RS232 port is used for point-to-point topology. Additionally, this operator terminal is installed with a single USB port that allows insertion of a peripheral device such as mouse or keyboard for a more convenient operation. It also has a single external storage medium that is designed for industrial grade memory cards while also compatible with SDSC and Class 6 & Class 10 SDHC micro-SD cards, FAT32/16 formats, up to 32 GB maximum size. This operator terminal is powered by an external supply voltage of 18-32VDC with nominal voltage of 24VDC.
