SIMATIC S7-200 SMART · CPU CR40
6ES7288-1CR40-0AA0
CPU CR40 AC/DC/Relay

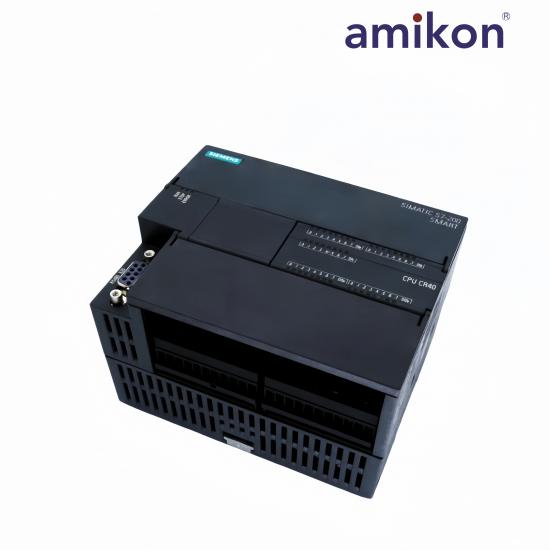

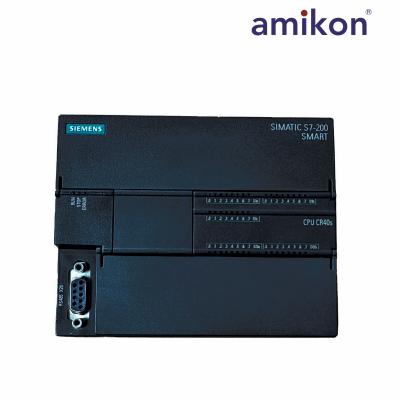

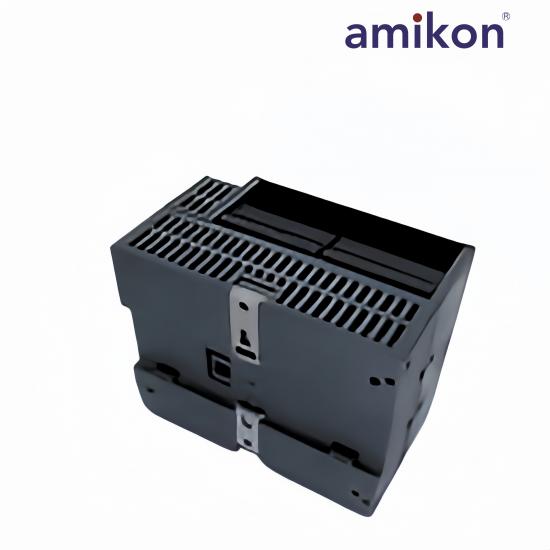

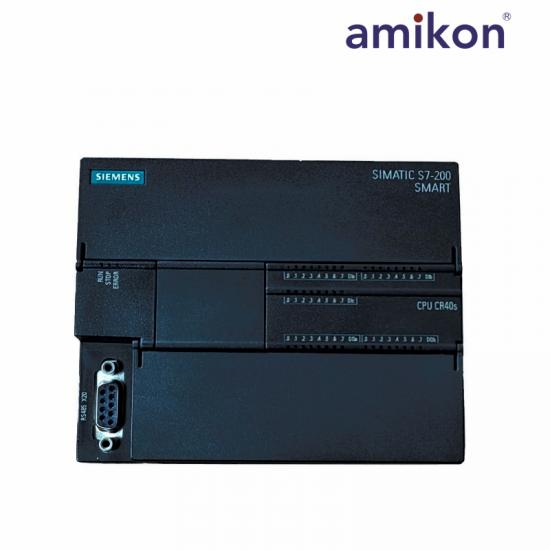

The 6ES7288-1CR40-0AA0 is a Siemens SIMATIC S7-200 SMART CPU CR40, a compact serial, non-expandable CPU with 24 onboard 24 V DC digital inputs and 16 relay digital outputs rated at 2 A.
Model6ES7288-1CR40-0AA0
Product TypeCPU
DeliveryDHL · FedEx · UPS
Fast quotation supportSend the model and required quantity directly to Manager Maple using the contact options on the right.
6ES7288-1CR40-0AA0
Technical Specifications
Organized product, I/O and order data for clear technical review.
01
Product IdentityCore product information
ManufacturerSiemens
Product designation6ES7288-1CR40-0AA0
Product functionCPU CR40 AC/DC/Relay
System familySIMATIC S7-200 SMART
02
Onboard I/OOfficial onboard I/O data
Digital inputs24 DI, 24 V DC
Digital outputs16 DO relay
Relay output rating2 A
Output typeRelay
03
Supply & MemoryPower and memory information
Power supply85–264 V AC, 47–63 Hz
Program/data memory12 KB program / 8 KB data
Retentive memory10 KB max.
04
Physical & Design DataOfficial Siemens technical information
Net weight0.440 kg
Dimensions (W × H × D)125 × 100 × 81 mm
Expansion modulesNot supported
6ES7288-1CR40-0AA0 Product Support
Frequently Asked Questions
Technical information for the Siemens 6ES7288-1CR40-0AA0 CPU module.
01
What is the 6ES7288-1CR40-0AA0?
It is a Siemens SIMATIC S7-200 SMART CPU CR40 with AC/DC/Relay configuration.
02
How many onboard digital inputs does the CPU provide?
The CPU provides 24 onboard 24 V DC digital inputs.
03
What digital outputs are included?
It includes 16 relay digital outputs rated at 2 A.
04
What is the specified power supply range?
The specified supply range is 85–264 V AC at 47–63 Hz.
05
How much program/data memory is specified?
Siemens specifies 12 KB of program memory and 8 KB of data memory.
06
Does the CPU support expansion modules?
No. Siemens identifies this compact serial CPU as non-expandable.
07
What are the dimensions and approximate weight?
The official Siemens data lists dimensions of 125 × 100 × 81 mm and an approximate weight of 440 g.
