80190-380-02-R

Product Origin:  USA

Manufacturer：AB

Dimension:25cmx19cmx2.6cm

Weight:0.32KG

Full Description:

• Verify that the power supply is energized and is using the appropriate input control power.

• Measure the output voltage and confirm whether the output level is below the trip level.

• Verify that the fault detection wiring is per the drawings, and measure the voltage on the

trip signals. For example, Terminal J18 2-3 is 5Vdc when healthy, and 0V in a faulted state.

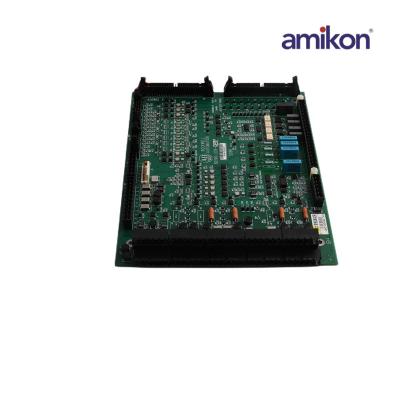

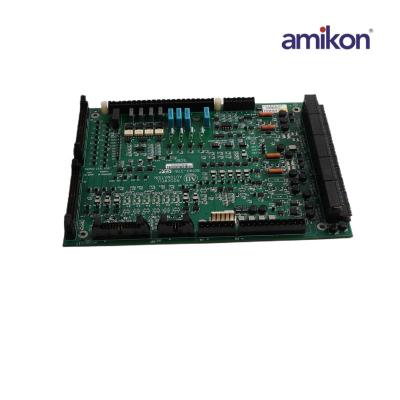

The 80190-380-02-R is a Controller Board. The / Bulletin Resolver-Based CNC System Module is a unique, single cohesive unit that incorporates a CNC with a digital drive. While improving machine performance as well as decreasing cost, system integration time and cabling, the 9/440 supports up to four closed loop axes and two closed loop analog systems (typical spindles).

The 80190-380-02-R is engineered to interface to / 's 1326 digital servo motors. Key circuit boards of the 9/440 system are the processor board, feedback board, power supply, and wiring board. Three versions of the 9/440 are manufactured based on number of axes supported and feedback.
