Industrial Automation Module

086318-002

Price and Availability Inquiry

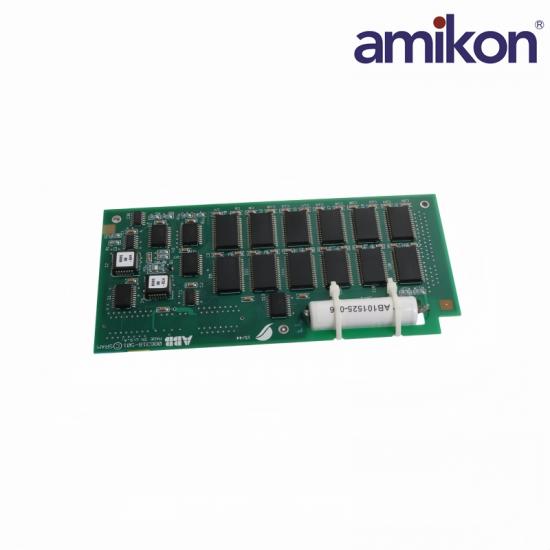

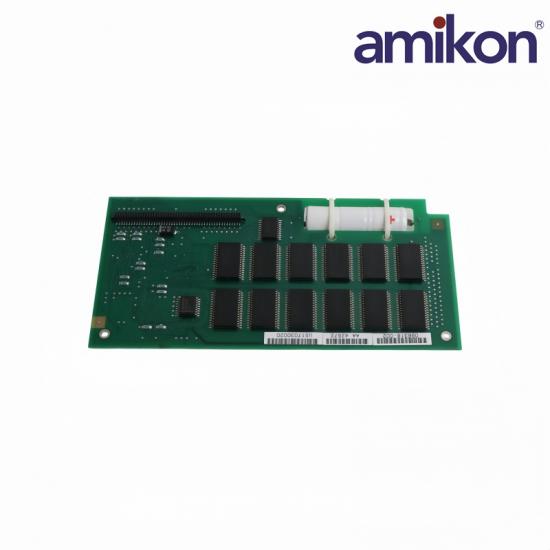

086318-002 is an ABB printed-wiring-assembly memory daughterboard supplied as a controller spare, with published dimensions, weight and replacement identity for procurement control.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 086318-002 and required quantity in your inquiry.

086318-002 PRODUCT DATA

Technical Specifications

Verified identification, electrical, interface, installation and ordering data for 086318-002.

01Product IdentityABB product data

ManufacturerABB

Product ID086318-002

Catalog descriptionPWA, Memory Daughterboard

Long descriptionMemory Daughter PCA

02Physical DataPublished net data

Net length208 mm

Net width120 mm

Net height15 mm

Net weight0.13 kg

03Memory DataPublished board characteristics

Memory technologySRAM

Memory capacity512 KB

Supply voltage5 V DC, system supplied

Memory retentionBattery-backed RAM

04Environmental & InstallationPublished board-level data

Operating temperature−20 to +60 °C

CoolingNatural convection

InstallationDaughterboard connector

Board power5 V DC, host supplied

086318-002 PRODUCT SUPPORT

Application and Ordering FAQ

Product-specific compatibility, application, installation and ordering guidance for 086318-002.

How should 086318-002 be identified before ordering?

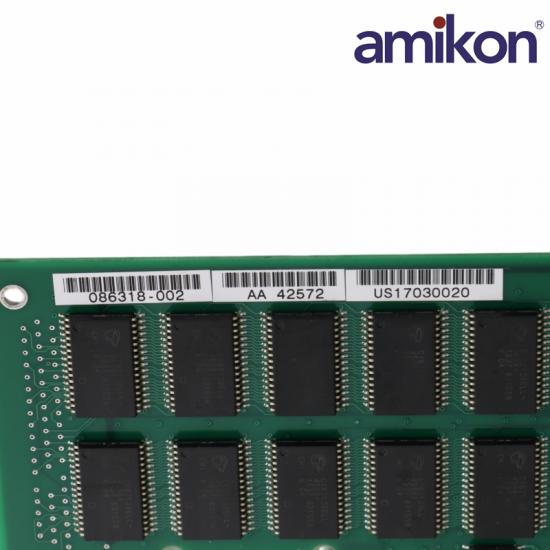

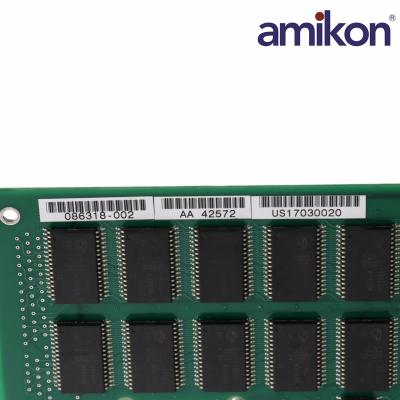

Match product ID 086318-002 and the catalog description PWA, Memory Daughterboard on the installed assembly.

Which earlier product ID does the record replace?

The ABB product record lists 086318-001 as the replaced older product ID.

Which dimensions should be checked for installation?

The published net dimensions are 208 mm long, 120 mm wide and 15 mm high.

Which net weight is documented?

ABB lists a product net weight of 0.13 kg and a gross weight of 0.2 kg.

Can the board be selected by appearance alone?

No. Confirm the full product ID, board label, connector arrangement and host-controller documentation.

How should the board be handled during replacement?

De-energize the controller, use ESD-safe handling and protect the printed circuit assembly from flexing or connector damage.

Which project data should be protected first?

Back up controller programs, configuration and retained data before replacing any memory-related assembly.
