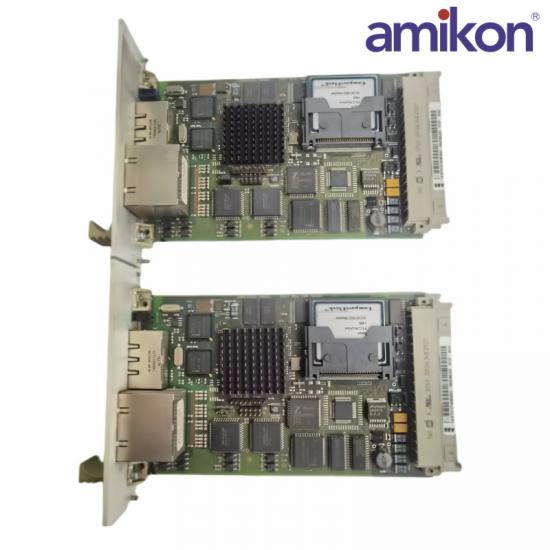

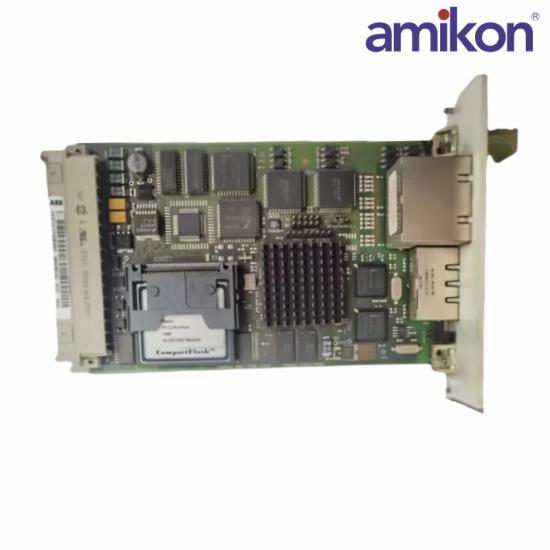

The ABB 1KGT012700R0002 560CMU05 Communication Unit Module is a robust and versatile module designed to serve as a central communication interface within ABB's power system control and solutions. It is part of the ABB 560 Series, tailored for advanced data exchange between devices and systems in power generation, transmission, and distribution networks. The 1KGT012700R0002 560CMU05 module supports reliable and secure communication across various protocols, ensuring seamless integration with other equipment in a substation system.

The 1KGT012700R0002 560CMU05 acts as a communication hub, linking supervisory control systems with field devices such as protection relays and meters.

Supports a wide range of communication protocols, including IEC 61850, IEC 60870-5-104, DNP3, and Modbus.

Provides high interoperability for integration with third-party devices and legacy systems.

1KGT012700R0002 560CMU05 Designed for 24/7 operation in critical environments, ensuring high availability and fault tolerance.

1KGT012700R0002 560CMU05 Built to withstand harsh environmental conditions, including extreme temperatures, electrical interference, and vibration.

Model: 1KGT012700R0002 560CMU05

Function: Communication unit for substation systems.

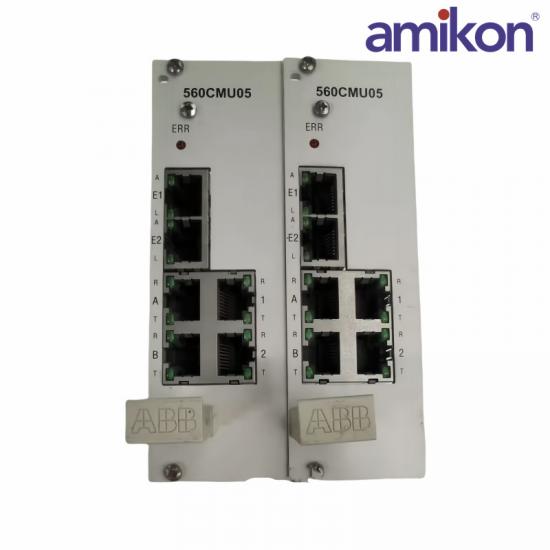

1KGT012700R0002 560CMU05 Ethernet: 2 ports (10/100 Mbps)

Serial: RS232/RS485 ports for legacy device communication

Input Voltage: 24–250 VDC or 48–230 VAC.

1KGT012700R0002 560CMU05 Memory:

RAM: 512 MB or higher

Flash Memory: For configuration and firmware storage.

Dimensions: Standard 19-inch rack-mountable unit.

Operating Temperature: -25°C to +70°C.

Humidity: 5% to 95%, non-condensing.

Weight: Approximately 3.5 kg.
