Description：

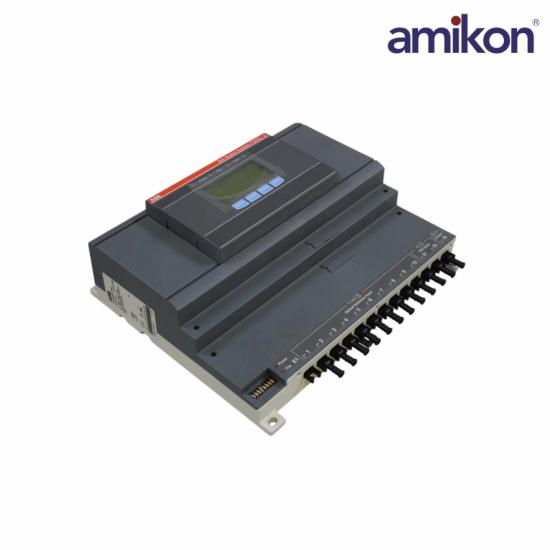

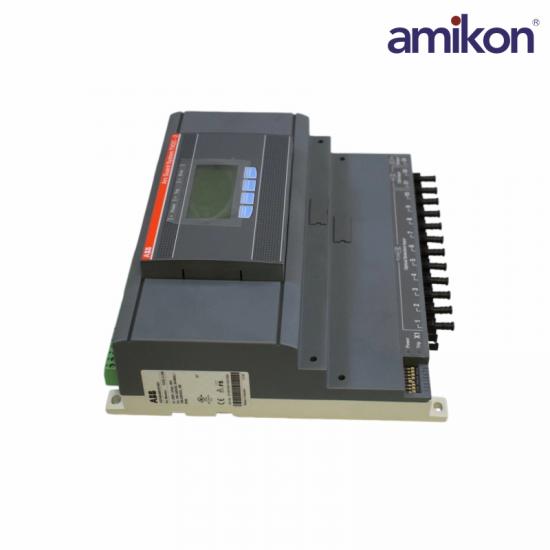

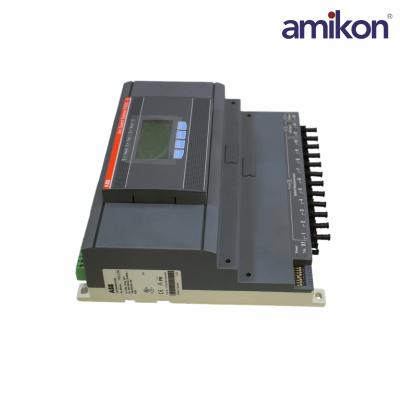

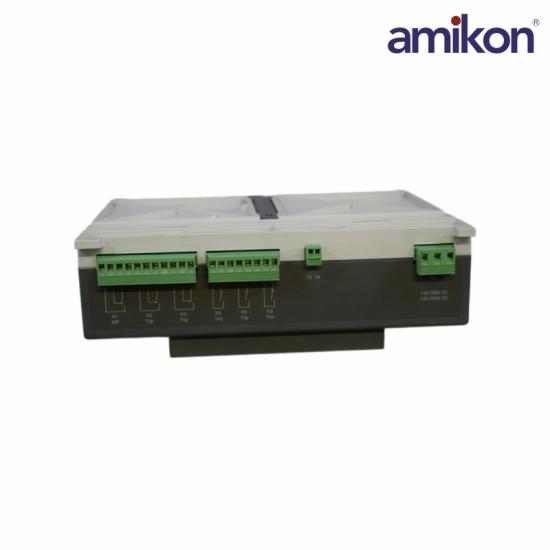

The 1SFA664001R1001 TVOC-2-240 Arc Guard System is an arc protection relay that mitigates arc faults and helps to protect people and equipment. The Arc monitor is the main unit of the Arc Guard System which detects the light of an arc and through the fast IGBT contacts sends an electrical signal within 1 ms to a nearby breaker that breaks the power and extinguishes the arc. The Arc monitor has 10 detector inputs and can trip up to three breakers with zone selectivity if needed. Up to 2 extension units can extend the number of light detectors to 30 and the unit includes an HMI that can be placed on the outside of the door. Detectors are sold in a wide range of lengths to fit a full switchgear design. Supply voltage 100... 250 V DC or 100... 240 V AC 50 / 60 Hz. Accessories include current sensing unit, optical cables, cable straps etc.

Specification：

Frequently asked questions

Q1: What is the ABB TVOC-2-240 Arc Monitor?

A1: It is an arc flash detection and protection device designed to quickly identify arc faults in electrical systems and trigger protective actions to minimize damage and risk.

Q2: How many auxiliary contacts are available?

A2: The 1SFA664001R1001 TVOC-2-240 device includes 3 auxiliary contacts (CO / SPDT), allowing flexible control and signaling options.

Q3: What is the 1SFA664001R1001 TVOC-2-240 power loss of the unit?

A3: The 1SFA664001R1001 TVOC-2-240 power loss is approximately 1.5 W, ensuring energy-efficient operation.

Q4: What is the 1SFA664001R1001 TVOC-2-240 rated operational voltage?

A4: It supports a wide voltage range of 100 to 240 V AC/DC, making it suitable for various power systems.

Q5: What is the 1SFA664001R1001 TVOC-2-240 operating temperature range?

A5: The device operates within an ambient temperature range of −25°C to +55°C.

Product Applications

Heavy Industry and Metallurgy: Suitable for high-temperature and high-electric-load environments, ensuring the safety of power distribution equipment such as steelmaking and electrolytic aluminum.

Petroleum and Chemicals: Used in complex environmental conditions and chemical production lines with extremely high requirements for fire prevention and safety.

Cement and Mining: Adapted for electrical rooms with large dust and harsh environments, preventing arc hazards caused by aging or faults in the power lines.

Ships and Marine Engineering: Applied in the power distribution panels of ships to prevent power interruption caused by arc light, which could affect navigation safety.
