ABB ABB AC500-eCo

1TNE968902R1101 AI561

Price and Availability Inquiry

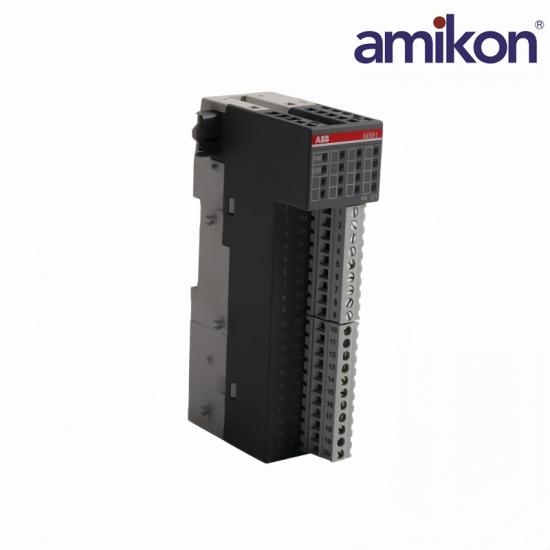

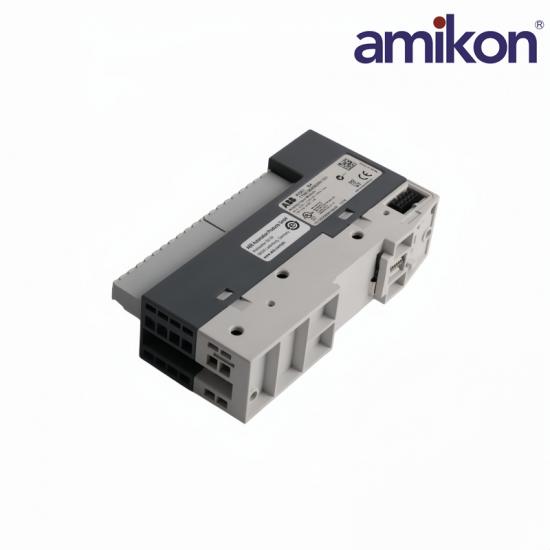

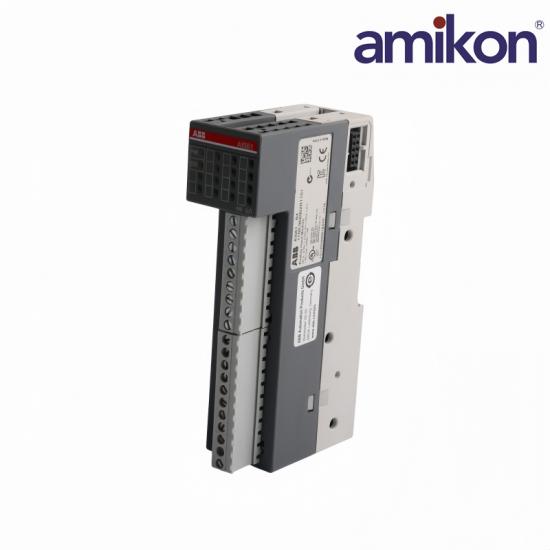

The ABB 1TNE968902R1101 AI561 is a AI561 S500-eCo Analog Input Module designed for ABB AC500-eCo applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 1TNE968902R1101 AI561 and required quantity in your inquiry.

ABB 1TNE968902R1101 AI561

Technical Specifications

Official ABB AI561 input ranges, electrical characteristics, accuracy, isolation and protection data.

01Product IdentityOfficial ABB product data

MANUFACTURERABB

ORDER NUMBER1TNE968902R1101

PRODUCT TYPEAI561 Analog Input Module

SYSTEM FAMILYS500-eCo / AC500-eCo

02Analog Input DataOfficial ABB channel data

ANALOG INPUTS4 differential; individually configurable

UNIPOLAR RANGES0...5 V; 0...10 V; 0...20 mA; 4...20 mA

BIPOLAR RANGES−2.5...+2.5 V; −5...+5 V

RESOLUTION12 bits; bipolar ranges include sign

03Electrical CharacteristicsOfficial ABB input data

INPUT RESISTANCEVoltage >1 MΩ; current approx. 250 Ω

COMMON-MODE RANGESignal plus common mode within ±12 V

SURGE RATING35 V DC for 0.5 s

POWER DISSIPATION2.7 W maximum

04Accuracy & IsolationOfficial ABB performance data

TYPICAL ERROR AT 25 °C±0.5% FS; voltage and 0...20 mA

4...20 mA ERROR AT 25 °C±0.7% FS

MAXIMUM ERROR±2% FS at 0 to +60 °C / EMC disturbance

GALVANIC ISOLATIONNone between inputs and I/O bus

ABB 1TNE968902R1101 AI561 Product Support

Frequently Asked Questions

Signal compatibility, channel configuration, wiring, installation, diagnostics and ordering guidance for ABB AI561

Which signal ranges can be assigned to each AI561 channel?

Each of the four inputs can be configured for ±2.5 V, ±5 V, 0...5 V, 0...10 V, 0...20 mA or 4...20 mA operation.

Does every channel have to share one measurement configuration?

No. AI561 channels are configured individually, allowing voltage and current ranges to be assigned according to the AC500-eCo project.

How should the process supply and field wiring be checked?

Verify the 24 V DC process supply, the documented 1-wire connection, channel polarity and the selected signal range before energizing the inputs.

Why must the removable terminal block be selected separately?

AI561 requires a compatible 9- or 11-pole S500-eCo terminal block, and ABB lists the terminal block as a separately ordered item.

Where is AI561 suitable within an AC500-eCo installation?

Install the IP20 module inside a suitable control enclosure and keep the operating temperature within 0 to +60 °C.

How can an incorrect live value be diagnosed after replacement?

Compare channel range, polarity, scaling and field wiring with the original project, then check the raw value before adjusting application logic.

Which code combination belongs on the purchase order?

Specify ABB AI561 together with product ID 1TNE968902R1101 and identify the required 9- or 11-pole terminal block.
