ABB DCS500 DC Drive

3ADT310500R0102

Price and Availability Inquiry

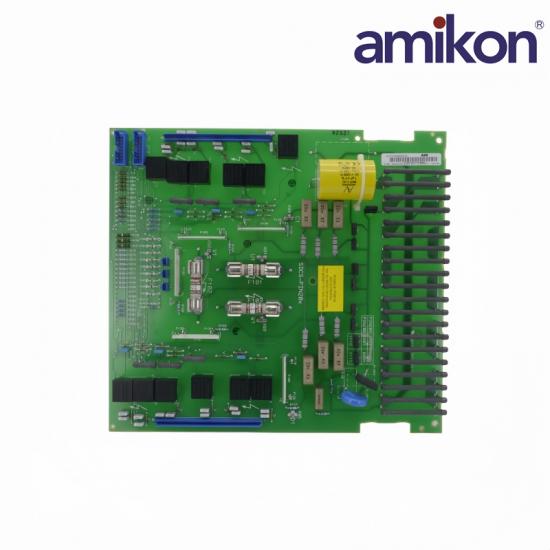

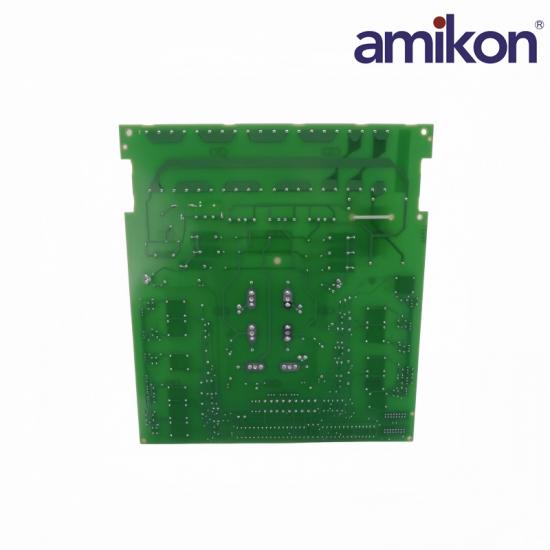

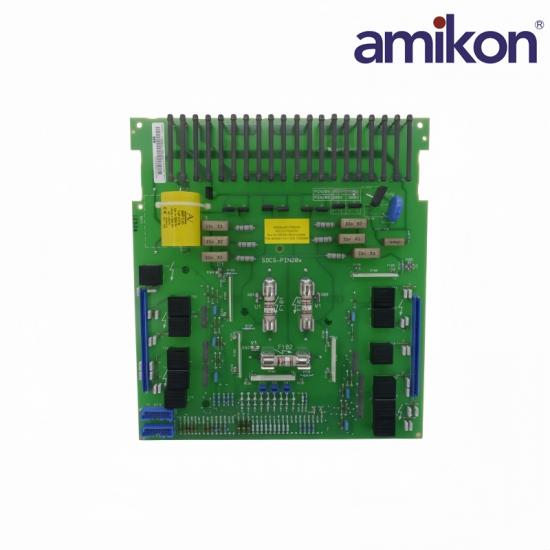

The ABB 3ADT310500R0102 is power interface board for DCS converter modules in construction sizes C1 and C2.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 3ADT310500R0102 and required quantity in your inquiry.

ABB 3ADT310500R0102 · SDCS-PIN-205A

Technical Specifications

Official ABB DCS technical data, document 3ADW000054R0601.

01Product IdentityABB technical data

ManufacturerABB

Article Number3ADT310500R0102

Board DesignationSDCS-PIN-205A

Converter FamilyDCS500 / DCS600

02Converter RatingsABB 3ADW000054R0601

Rated Voltage500 V

Converter Current Range100–700 A

Construction SizesC1 / C2

Quadrant Versions2-Q / 4-Q

03Measurement & CodingABB 3ADW000054R0601

Current Transformer Ratios1000:1 · 600:1 · 2330:1

Zero-Current ResistorsR149 33 Ω · R150 47.5 Ω · R151 100 Ω

Current-Scaling ResistorsR160–R179

Hardware CodingW80–W82 · R248–R252

04Protection & MechanicalABB 3ADW000054R0601

Overvoltage FusesF101–F103

Fuse TypeBussmann KTK-R-6A · 600 V

Snubber Components6 × 15 Ω + 6 × 22 nF

Board Dimensions253 × 280 mm

ABB 3ADT310500R0102 Product Support

Frequently Asked Questions

DCS500/DCS600 compatibility, board coding, protection, replacement and ordering guidance for 3ADT310500R0102.

Which DCS converter sizes accept the SDCS-PIN-205A board?

ABB data lists 400/500 V converters in C1/C2 ranges of 100–350 A, 405–520 A and the 700 A C2 configuration.

Why is the 610–1000 A C2b range excluded?

That range requires the SDCS-PIN-205B arrangement; SDCS-PIN-205A must not be assumed compatible with the C2b power section.

Can a 205A board replace an earlier SDCS-PIN-205?

ABB service guidance permits 20xA to replace 20x, but not the reverse. Confirm converter size, serial version and board hardware coding before fitting.

How are current and voltage ranges matched on the board?

Check the burden-resistor/current-scaling configuration and the high-ohmic AC/DC voltage measurement circuit against the converter hardware rather than copying settings from another rating.

Which protection circuits should be inspected during service?

Inspect the thyristor firing-pulse transformers, RC/RCD snubber network, zero-current detection, heat-sink PTC input and associated power connections.

Which board fuse specification is documented?

The technical data identifies KTK-R-6A, 600 V protection fuses. Replace only with the specified type and rating after isolating the converter.

Which nameplate details are needed to order 3ADT310500R0102?

Provide the full article number, SDCS-PIN-205A board label, DCS500/DCS600 converter type, 400/500 V class, current range, construction size and serial version.
