ABB ABB Freelance AC 800F

3BDH000014R1 SD812F

Price and Availability Inquiry

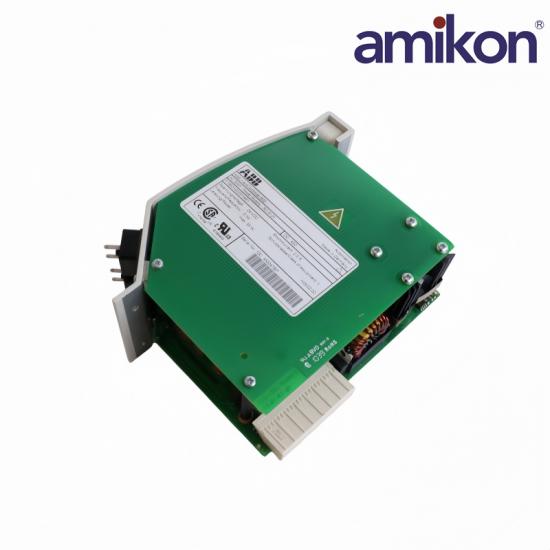

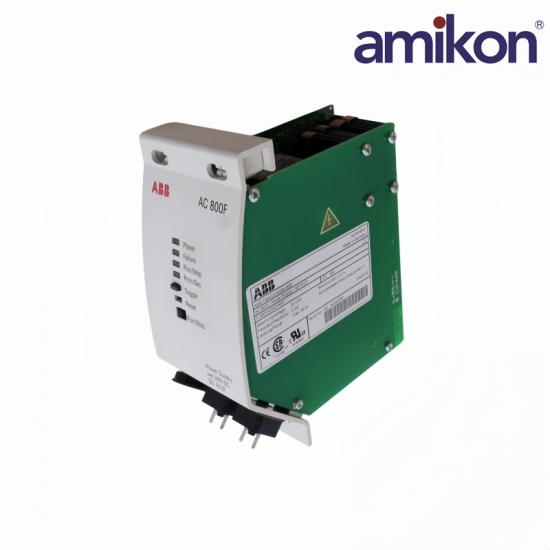

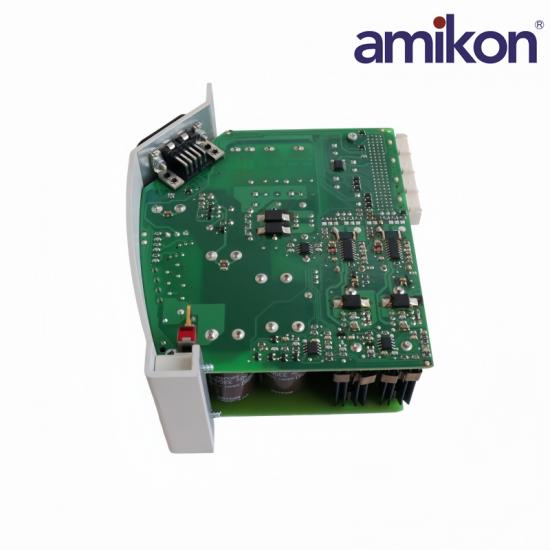

The ABB 3BDH000014R1 SD812F is a SD 812F 24 V DC Power Supply designed for ABB Freelance AC 800F applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 3BDH000014R1 SD812F and required quantity in your inquiry.

ABB 3BDH000014R1 SD812F

Technical Specifications

Official ABB Freelance technical data for the SD 812F power supply, order number 3BDH000014R1.

01Product IdentityOfficial ABB product data

MANUFACTURERABB

ORDER NUMBER3BDH000014R1

PRODUCT TYPESD 812F Power Supply 24 V DC

SYSTEM FAMILYFreelance AC 800F

02Input DataOfficial ABB electrical data

INPUT VOLTAGE24 V DC; 2 redundant inputs

PERMITTED RANGE19.2 to 32.5 V DC

INPUT CURRENT1.7 A at 24 V DC; nominal load

RATED INPUT POWER41 W

03Output DataOfficial ABB electrical data

OUTPUT 13.3 V DC ±3%; 0.5 to 6.5 A

OUTPUT 25 V DC ±3%; 0.5 to 5.5 A

TOTAL OUTPUT POWER35 W maximum

CURRENT LIMITApprox. 7.5 A

04Power-Fail & ProtectionOfficial ABB power data

INPUT FUSES3.15 AT per supply; soldered

POWER-FAIL SIGNALInput loss ≥5 ms

OUTPUT HOLD-UP≥15 ms after power-fail signal

TOTAL BACKUP TIMEMore than 20 ms

ABB 3BDH000014R1 SD812F Product Support

Frequently Asked Questions

Redundant input, output loading, controller compatibility, fault response, software and ordering guidance for ABB SD 812F

Which controller configurations accept the SD 812F?

ABB specifies SD 812F for PM 802F or PM 803F controller configurations in the Freelance AC 800F family.

How are the redundant 24 V DC feeds qualified?

Two inputs are provided; each supply must remain within 19.2 to 32.5 V DC, with nominal-load current of 1.7 A at 24 V DC.

Can both output rails be loaded to their individual maxima at once?

Observe the 35 W total limit in addition to the 3.3 V / 6.5 A and 5 V / 5.5 A rail limits when calculating the controller load.

Why does the power-fail backup interval matter?

The more-than-20 ms hold-up supports orderly power-fail handling, but it does not replace redundant input design or the controller shutdown procedure.

Which supply faults are covered by internal protection?

The SD 812F provides open-circuit, overload and sustained short-circuit protection with an approximate 7.5 A current limit.

When is a Freelance software update required?

Use Freelance V7.1 SP2a or later; an older project environment should be upgraded and validated before integrating SD 812F.

How should the exact power supply be specified for ordering?

Request ABB SD 812F, article 3BDH000014R1, and confirm the intended PM 802F or PM 803F controller configuration.
