Model |
3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 GVC704 AE01 |
|
Average On-State Current |
1400 A |
|
On-State Voltage Drop |
≤ 1.50 V |
|
Reverse Leakage Current |
≤ 10 mA |
|
Rated voltage |
6 kV |
|
Rated current |
1060 A |
|
Auxiliary power supply |
24 VDC |
|
Operating temperature |
0°C to +55°C |

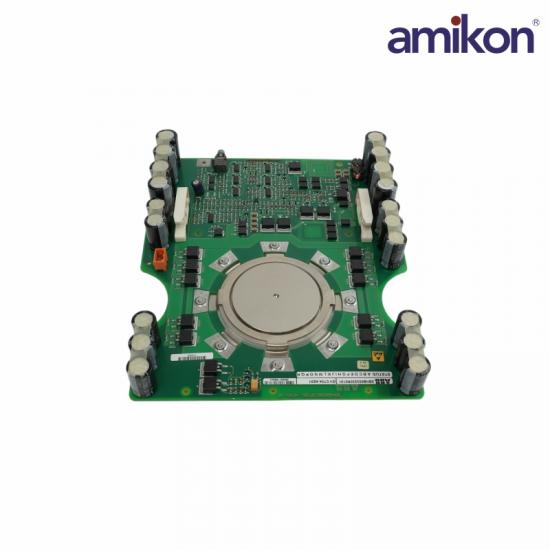

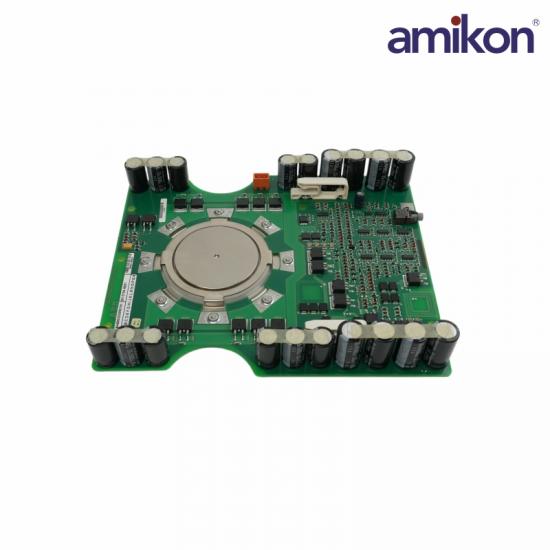

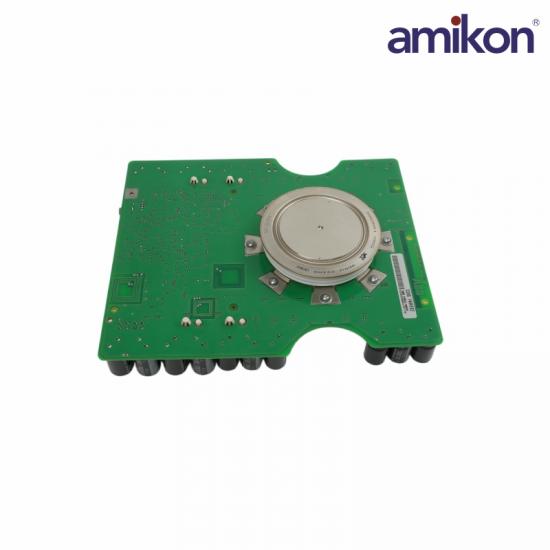

The ABB 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 GVC704 AE01 IGCT Module is a high-power semiconductor device based on Integrated Gate-Commutated Thyristor (IGCT) technology, developed by ABB. It is designed for high-voltage and high-current applications in advanced power electronics systems.
This module combines a press-pack IGCT device (5SHX1445H0001) with associated components such as the gate unit (3BHL000391P0101) and mechanical assembly (3BHB003230R0101), forming a complete power switching solution. It enables efficient and reliable switching in medium- and high-voltage converters, offering low conduction losses, high switching performance, and excellent thermal stability.
Frequently asked questions：
Q1: What is the ABB 3BHL000391P0101 5SHX1445H0001 IGCT module?
A: It is a high-power Integrated Gate-Commutated Thyristor (IGCT) module used in medium- and high-voltage drives, inverters, and power conversion systems.
Q2: What is the rated voltage of this IGCT module?
A: The 3BHB003230R0101 GVC704 AE01 module has a rated voltage of 6 kV, suitable for high-voltage industrial applications.
Q3: What is the 3BHB003230R0101 GVC704 AE01 current rating of the ABB IGCT module?
A: The module supports a rated current of 1060 A and an average on-state current of up to 1400 A.
Q4: What is the 3BHL000391P0101 5SHX1445H0001 on-state voltage drop of the module?
A: The on-state voltage drop is ≤ 1.50 V, ensuring efficient power conduction.
Q5: What is the 3BHL000391P0101 5SHX1445H0001 reverse leakage current of the module?
A: The reverse leakage current is ≤ 10 mA, indicating low leakage and high efficiency.
Product Applications
Metallurgical industry: Widely used in high-power rectifiers and induction heating equipment.
Power system: Can be applied in substations, DC transmission (HVDC) systems and soft starters.
Transportation: Traction converters and power systems for rail transportation vehicles.
Industrial power supply: Used for large-power uninterruptible power supplies (UPS) and DC electroplating power supplies in industry.
Heavy industry equipment: Plays a key role in power control in large AC motor speed regulation (frequency converters) and high-voltage soft starters.
Key features
High reliability: Compared to traditional GTO or IGBT, IGCT has a lower failure rate (FIT) and higher power density in high-voltage and high-current applications.
Anti-interference capability: By transmitting instructions through optical fibers, it completely isolates the high-voltage main circuit from the control circuit, enhancing system safety.
