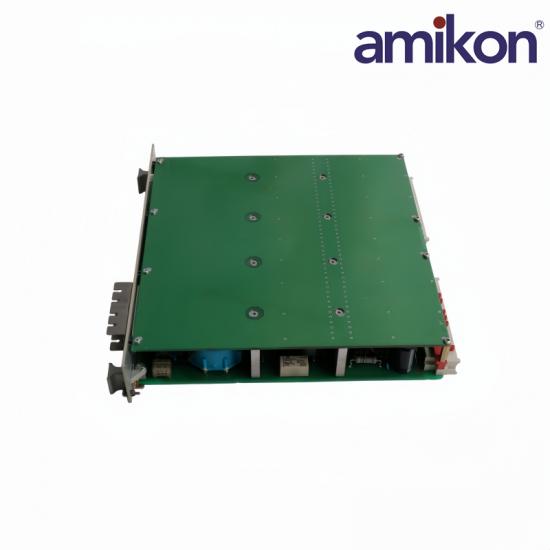

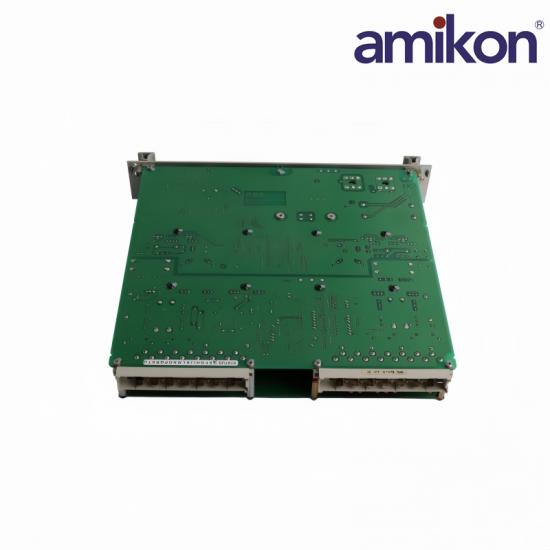

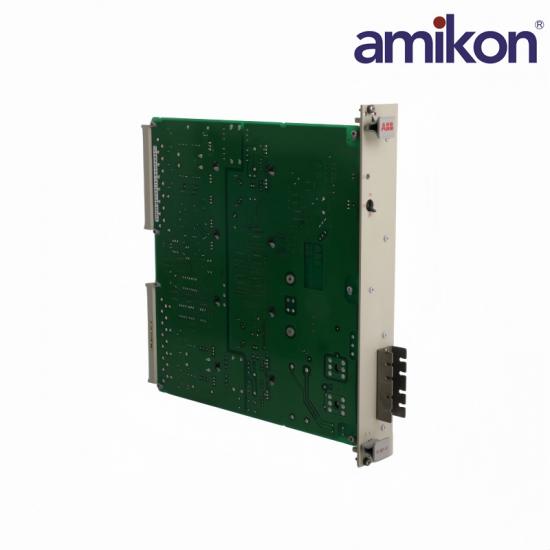

ABB 3EHL409054R0001 KUB921A01 VCU Power Supply Board

3EHL409054R0001 KUB921A01
3EHL409054R0001 KUB921A01
3EHL409054R0001 KUB921A01

ABB 3EHL409054R0001 KUB921A01 VCU Power Supply Board

✉  INQUIRE NOW

ABB · Locomotive Vehicle Control Unit

3EHL409054R0001 KUB921A01

VCU Power Supply Board

MANUFACTURERABB
MODEL3EHL409054R0001 KUB921A01
PART NUMBER3EHL409054R0001 KUB921A01
PRODUCT TYPEVCU Power Supply Board
SYSTEM FAMILYLocomotive Vehicle Control Unit
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    3EHL409054R0001 KUB921A01
  • Product Origin:

    Sweden
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    ABB
  • Product Origin:

    Sweden
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

ABB Locomotive Vehicle Control Unit

3EHL409054R0001 KUB921A01

Price and Availability Inquiry

ABB KUB921A01 is identified as a power supply PCB for a locomotive vehicle control unit. The 3EHL409054R0001 document reference should be checked against the installed board and equipment records before ordering.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 3EHL409054R0001 KUB921A01 and required quantity in your inquiry.

ABB 3EHL409054R0001 KUB921A01

Technical Specifications

RDSO records: KUB921A01 placement and documented capacitor data; component ratings are not PCB input ratings.

01Product IdentityBoard and document reference
MANUFACTURERABB
BOARD DESIGNATIONKUB921A01
ABB DOCUMENT REFERENCE3EHL409054R0001
PRODUCT TYPEVCU power supply PCB
02VCU Installation DataRDSO functional requirement
VCU LOCATIONSVCU1 and VCU2
CARD POSITIONSA/B or C/D
POWER CARDS PER VCU2
TOTAL POWER CARDS4
03Original Capacitor RatingsRDSO Table 16 component data
ABB COMPONENT REF3BHC510003R0048
CAPACITANCE100 µF
VOLTAGE RATING160 V
RIPPLE CURRENT330 mA
04RDSO Replacement DataRDSO Table 16 proposed component
REPLACEMENT TYPE160YXF100M-CA16X25
TOLERANCE±20%
RIPPLE CURRENT950 mA
ENDURANCE5,000 h at 105 °C

ABB 3EHL409054R0001 KUB921A01 Product Support

Frequently Asked Questions

KUB921A01 VCU slot, load-test and procurement questions.

01

Which locomotive subsystem uses KUB921A01?

Indian Railways identifies KUB921A01 as a power-supply card for the CEL/VCU rack in three-phase electric locomotives.

02

Which VCU rack positions are documented for this card?

The RDSO card table assigns KUB921A01 to A/B or C/D slot positions. Confirm the fitted rack drawing before installation.

03

How should simultaneous processor life-sign faults be investigated?

Check the VCU power-supply card under load before assuming every processor card has failed; Western Railway documents this KUB921A01 diagnostic case.

04

Which practical test is documented for KUB921A01?

A railway shed developed an on-load jig to check supply regulation. Use the approved local test procedure; the report gives no numeric pass limits.

05

Which identifiers belong on the purchase request?

Specify both card type KUB921A01 and ABB number 3EHL409054R0001; an Indian Railways procurement record pairs them explicitly.

06

Can a KUC153A01 auxiliary-converter supply be used instead?

Do not substitute by name alone. Railway records distinguish KUB921A01 in the VCU from KUC153A01 in the auxiliary converter; use the approved vehicle bill of materials.

07

How should fitment be confirmed after changing the card?

Verify the documented A/B or C/D rack position, perform the approved on-load check and confirm related processor life-sign faults do not recur.
