Description：

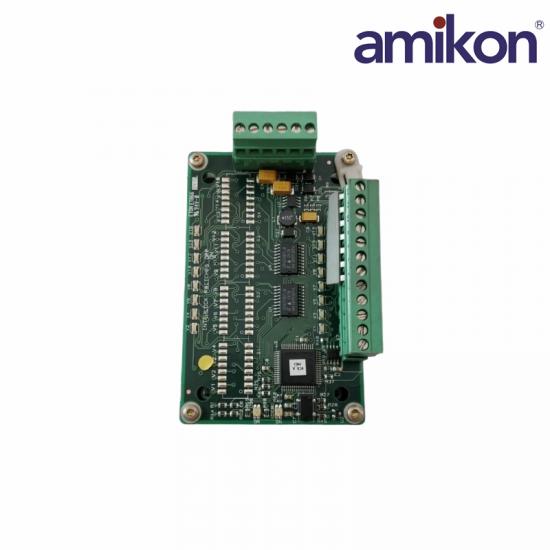

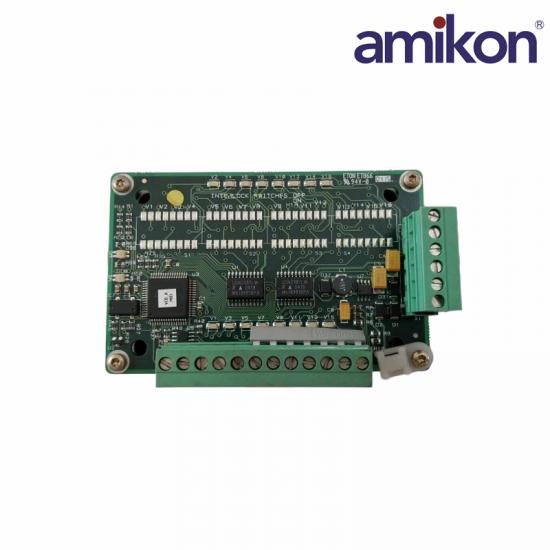

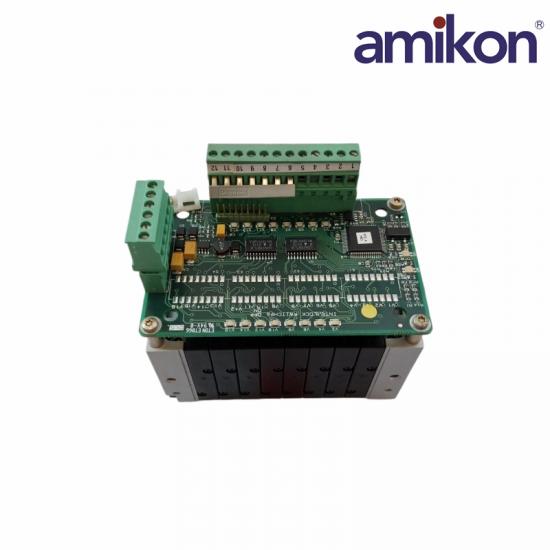

The ABB 3HNA003882-001/02 Valve Terminal is designed for reliable pneumatic control in industrial systems. It supports a working pressure range of -0.9 bar to 10 bar, making it suitable for both vacuum and positive pressure applications. The unit requires a pilot gas source pressure between 3.0 bar and 8.0 bar, ensuring fast, stable, and accurate valve actuation during continuous operation. Its compact 10 mm valve width allows high-density installation, helping equipment manufacturers optimize cabinet space while maintaining flexible system layouts. With an IP65 protection rating, the valve terminal is well protected against dust and water jets, making it suitable for demanding industrial environments. It operates reliably within an ambient temperature range of -5 °C to +50 °C and can be safely stored at temperatures between -20 °C and +40 °C, ensuring dependable performance throughout transportation, storage, and long-term industrial use.

Specification：

Frequently asked questions

Q1: What is the ABB 3HNA003882-001/02 Valve Terminal used for?

A: The ABB 3HNA003882-001/02 is a valve terminal used in pneumatic control systems to distribute and control compressed air for actuators, cylinders, and other pneumatic devices in industrial applications.

Q2: What is the working pressure range of the 3HNA003882-001/02 valve terminal?

A: The 3HNA003882-001/02 valve terminal supports a working pressure range of -0.9 bar to 10 bar, making it suitable for both vacuum and compressed-air applications.

Q3: What is the 3HNA003882-001/02 pilot gas source pressure range?

A: The 3HNA003882-001/02 required pilot gas source pressure range is 3.0 bar to 8 bar, ensuring reliable valve actuation and stable pneumatic control.

Q4: What is the valve width of the 3HNA003882-001/02?

A: The 3HNA003882-001/02 valve terminal features a 10 mm valve width, allowing a compact installation footprint within control cabinets and equipment.

Product Applications

Automotive Manufacturing and Parts: Primarily used in automated robotic painting production lines for automotive bodies, frames, bumpers, and interior components, ensuring uniform coating and high-quality finish.

Rail Transportation and Aerospace: Used for precision anti-corrosion spraying and special coating application on the outer surfaces of high-speed rail carriages and aircraft components.

Home Appliances and Electronics: Applied to automated surface treatment and painting of refrigerator and washing machine casings, as well as 3C electronic products (such as computer and mobile phone casings).

Heavy Machinery and Construction Machinery: Used for industrial anti-corrosion spraying of large steel structural components such as excavators and cranes.

New Energy and Power Equipment: Provides control support in surface protection coating for photovoltaic brackets, wind turbine blades, and substation casings.
