Part Number：5SHX36L4521 5SXE10-0181 AC10272001R0101

Shipping Term：TNT DHL FEDEX EMS UPS

Condition：100% Original

Product type：Circuit Board

Manufacturer：ABB

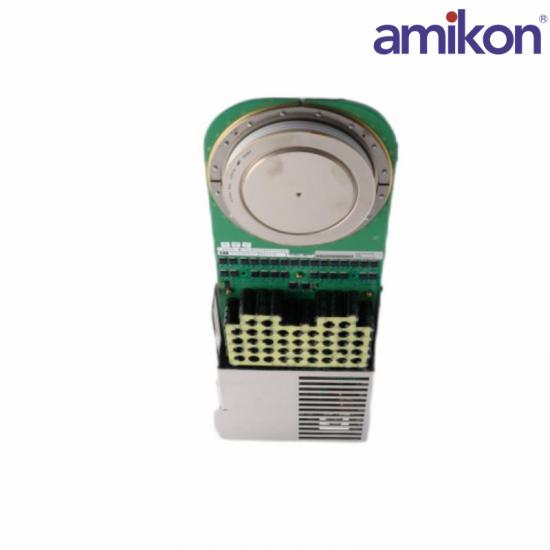

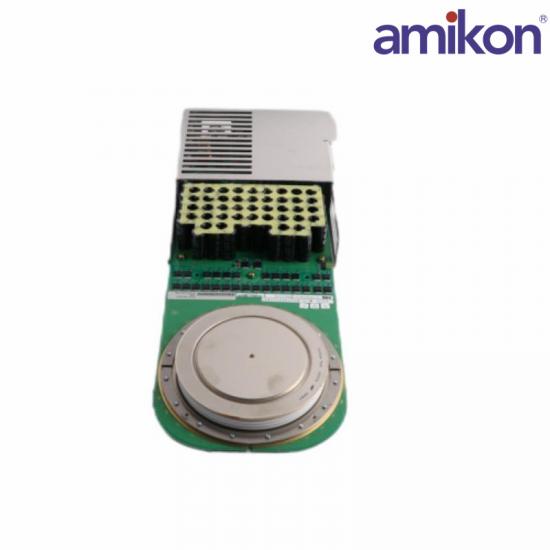

The ABB 5SHY6545L0001 AC10272001R01015SXE10-0181 Circuit Board is a critical component for high-efficiency power control applications in industrial systems.

Manufacturing Brand:ABB

Model Number:5SHY6545L0001 AC10272001R0101 5SXE10-0181

Application Area:Industrial Control Systems

Operating Temperature Range:-40°C to +125°C

Input Voltage Range:DC 300V to 1200V

Output Current Rating:50A to 100A

Switching Frequency:Up to 20kHz

Efficiency Rating:≥ 97%

The ABB 5SHY6545L0001 AC10272001R0101, 5SXE10-0181 module is engineered to deliver unparalleled performance in industrial control applications. It features a robust aluminum alloy housing designed for durability and thermal stability, ensuring reliable operation across a wide temperature range.

Equipped with advanced insulation technology, this  5SHY6545L0001 AC10272001R01015SXE10-0181 Circuit Board module boasts a minimum insulation resistance of 10MΩ, safeguarding against electrical hazards and ensuring system integrity under various operating conditions.

The  5SHY6545L0001 AC10272001R01015SXE10-0181 module’s cooling mechanism utilizes a thermal pad for efficient heat dissipation, enabling it to handle high switching frequencies up to 20kHz without overheating. This feature is crucial for maintaining optimal performance in dynamic industrial environments.

Its  5SHY6545L0001 AC10272001R01015SXE10-0181 compact design with dimensions of 150mm x 200mm x 100mm allows for seamless integration into existing systems, minimizing installation time and complexity.
