Description：

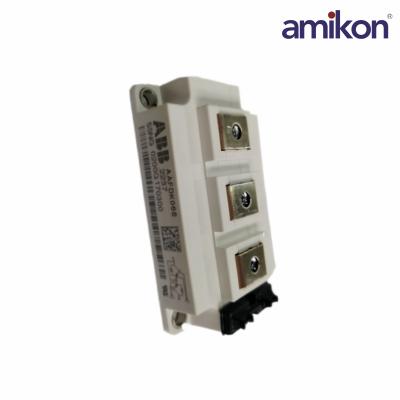

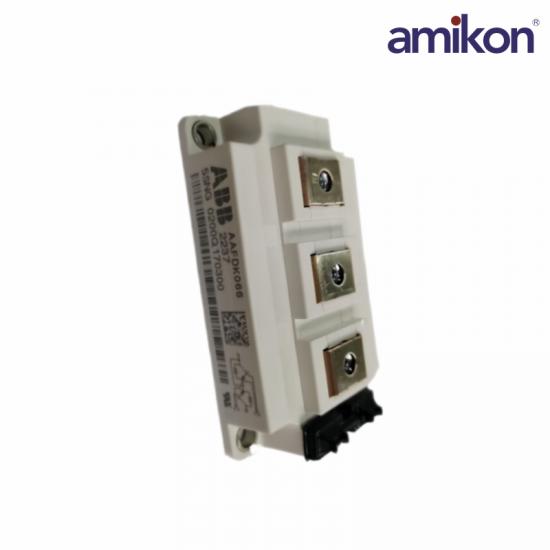

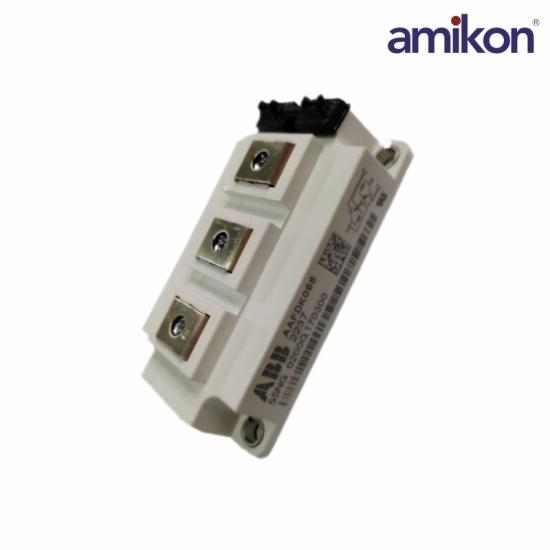

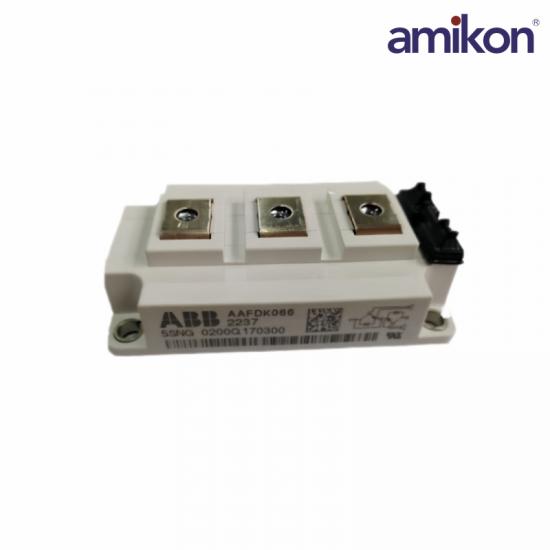

The ABB 5SNG0200Q170300 is a high-performance IGBT power module designed for demanding industrial power electronics applications. Built in a standard 62 mm package with a half-bridge (phase-leg) configuration, it offers a rated voltage of 1700 V and a current capacity of 200 A. Utilizing advanced chip technology, the module delivers low conduction and switching losses, excellent thermal performance, and high reliability. Its robust design includes a copper baseplate for efficient heat dissipation and supports high junction temperatures, making it ideal for use in variable frequency drives (VFDs), motor control systems, renewable energy converters, and industrial power supplies where efficiency and durability are critical.

Specification：

Frequently asked questions

Q1: What is the 5SNG0200Q170300?

A1: The 5SNG0200Q170300 is an ABB IGBT module, designed for high-power switching and control in industrial power electronics applications.

Q2: What is the 5SNG0200Q170300 collector-emitter voltage (VcEs)?

A2: It is rated at 1700 V, making it suitable for high-voltage applications.

Q3: What is the 5SNG0200Q170300 DC collector current (Ic)?

A3: The 5SNG0200Q170300 module supports 200 A at Tc = 100°C.

Q4: What is the 5SNG0200Q170300 peak collector current (IcM)?

A4: It can handle 400 A peak current for 1 ms, allowing it to manage transient loads.

Q5: What package type does it use?

A5: It comes in an industry-standard 62 mm package (62Pak).

Product Applications

Frequency converter and motor drive: Used for general industrial frequency converters, servo drives, and precision motor control systems, it provides efficient power switching.

Renewable energy: Responsible for DC/AC energy conversion in wind power generation (wind turbine converter) and photovoltaic power generation (solar inverter).

Power supply system: Widely applied in uninterruptible power supply (UPS), switching power supply (SMPS), and high-power industrial power supplies.

Grid and energy storage: Used in energy storage systems, flexible alternating current transmission systems (FACTS), and grid-level power regulation equipment.

Other industrial fields: Including welding machines, induction heating equipment, and auxiliary converters for traction systems.
