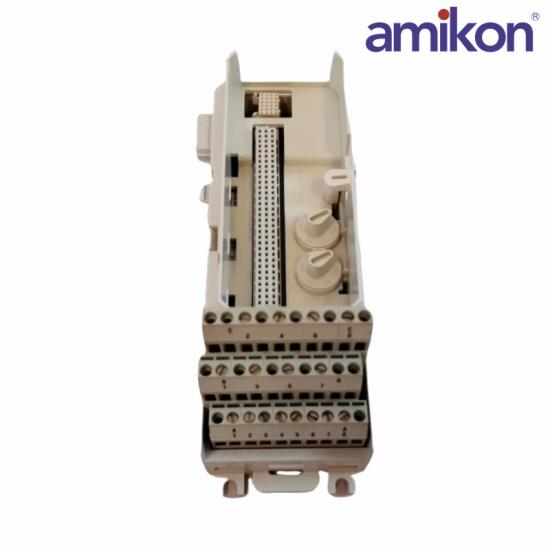

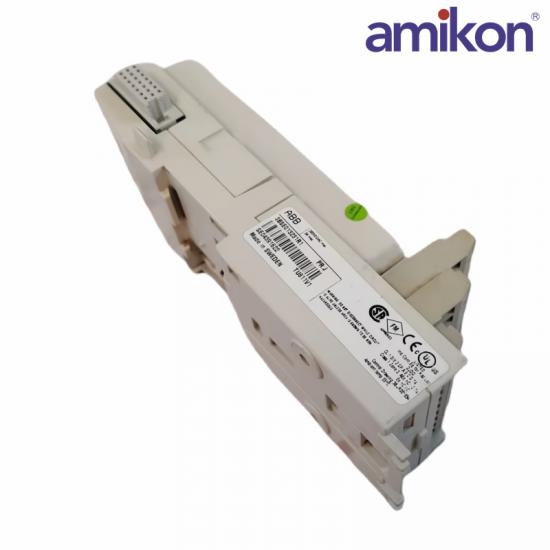

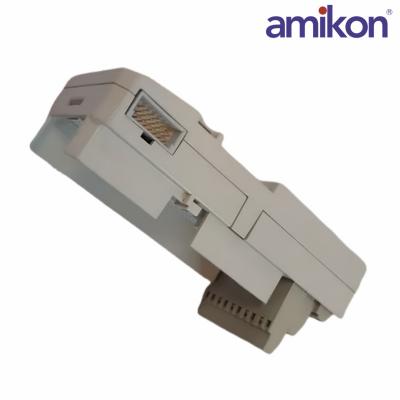

The ABB ABB800FDCSTU811V1 is a Compact Module Termination Unit (MTU) designed for use in ABB’s systems.

This unit provides the necessary physical interface between field wiring and system modules, ensuring secure, reliable, and efficient signal transmission.

It is commonly used in applications requiring modular and compact installations.

Rated Voltage: 24V DC.

Rated Current: 2A maximum per channel.

ABB800FDCSTU811V1 Provides electrical isolation between field signals and system components.

ABB800FDCSTU811V1 Operating Temperature: -20°C to +70°C.

Storage Temperature: -40°C to +85°C.

Humidity: 5% to 95% RH, non-condensing.

Weight: 0.5kg.

Input Supply: 18V to 32V DC.

Analog: 0-20mA / 4-20mA (configurable).

ABB800FDCSTU811V1 Digital: 24V DC (High), 0V (Low).

Typical: 5W to 10W, depending on connected modules.

ABB800FDCSTU811V1 Minimum Isolation Voltage: 1500V AC between field and system signals.

ABB800FDCSTU811V1 Physical Dimensions:

Length: 120mm.

Width: 80mm.

Height: 60mm.

ABB800FDCSTU811V1 Field Connections: Screw terminals or pluggable connectors.

Module Interface: Secure locking mechanism for ABB system module connections.

Signal Type: Compatible with digital and analog signals.
