Description：

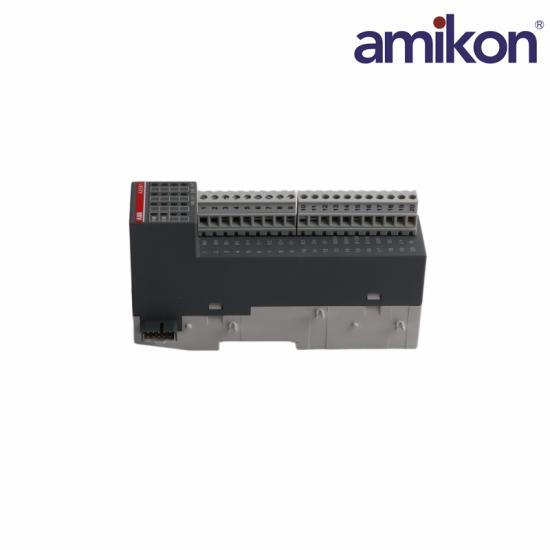

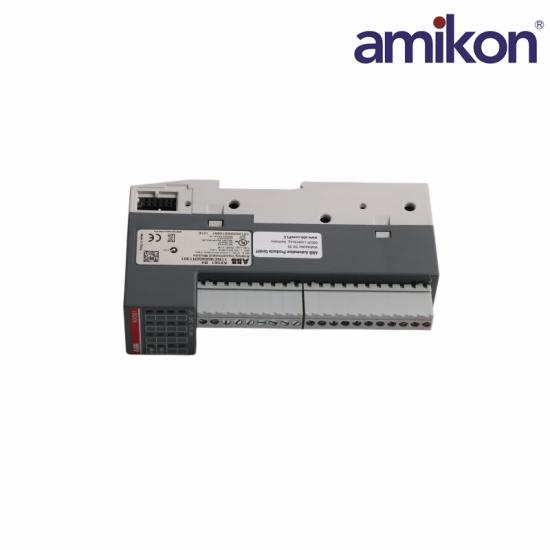

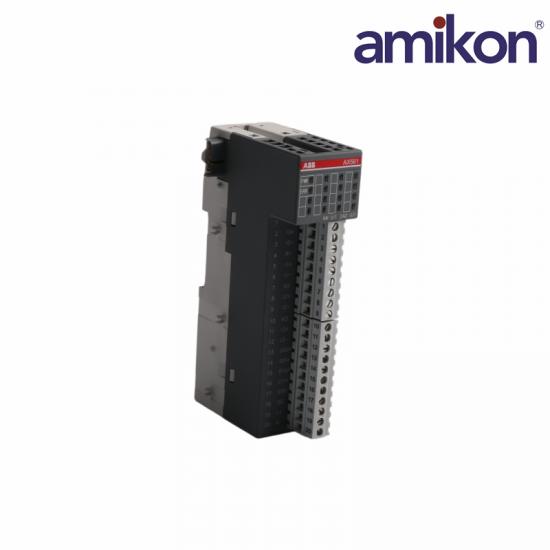

The ABB AX561 1TNE968902R1301 Analogue I/O Module is a versatile analog interface module designed for industrial and process control applications. It features four analog input channels and two analog output channels with 12-bit resolution, providing accurate signal acquisition and control for a wide range of field devices. Operating from a nominal 24 VDC power supply, the module integrates easily into ABB systems and mounts conveniently on a standard TH35-15 DIN rail.

The AX561 supports multiple analog signal types, including unipolar voltage ranges of 0 to +5 V and 0 to +10 V, bipolar voltage ranges of -2.5 to +2.5 V and -5 to +5 V, as well as 0–20 mA and 4–20 mA current signals

Specification：

Frequently asked questions

Q1: What is the ABB AX561 1TNE968902R1301 Analogue I/O Module used for?

A1: The ABB AX561 1TNE968902R1301 is an analogue input/output module for ABB AC500-eCo PLC systems. It provides reliable acquisition of analogue input signals and generation of analogue output signals for industrial , process control, and machine control applications.

Q2: How many analogue input and output channels does the AX561 1TNE968902R1301 module provide?

A2: The AX561 features 4 analogue input channels (AI) and 2 analogue output channels (AO), supporting both voltage and current signal types.

Q3: What is the resolution of the AX561 1TNE968902R1301 module?

A3: The AX561 1TNE968902R1301 module provides 12-bit resolution, delivering accurate analogue signal measurement and output for industrial control applications.

Q4: What is the AX561 1TNE968902R1301 nominal operating voltage?

A4: The AX561 operates with a nominal supply voltage of 24 VDC, making it compatible with standard industrial PLC power systems.

Product Applications

Mechanical manufacturing and processing plants: Used for closed-loop control of displacement, speed, and pressure in various automated machine tools, assembly lines, and specialized machinery.

Water treatment and environmental protection plants: Monitor and control liquid levels, flow rates, pH values, and valve opening adjustments in pump stations and wastewater treatment plants.

HVAC and smart building applications: Acquire data from temperature and humidity sensors in factory environmental control systems, and regulate the speed of frequency converters for fans and chillers.

Packaging and textile plants: Works with servo systems to control tension adjustment, winding, and unwinding speeds in packaging and textile machinery.

New energy and power plants: Used for auxiliary system data acquisition in wind and photovoltaic environments and monitoring of small and medium-sized energy stations.
