Part Number: 3AXD50000007344

ABB Type: BGAD-22C IGBT Module Kit

Rated Voltage: 1200 V DC

Rated Current: Approximately 300–450 A

Operating Temperature Range: −20 °C to +70 °C

Lead Time: In Stock

Shipping Terms: UPS / DHL / TNT / EMS / FedEx

Payment Method: T/T (Bank Transfer)

Service: One-Stop Service

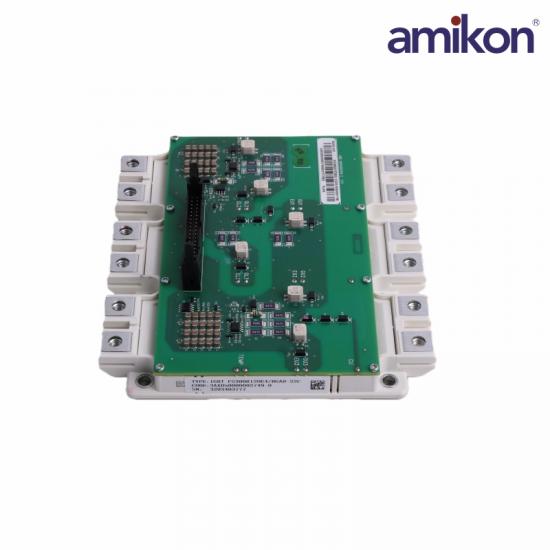

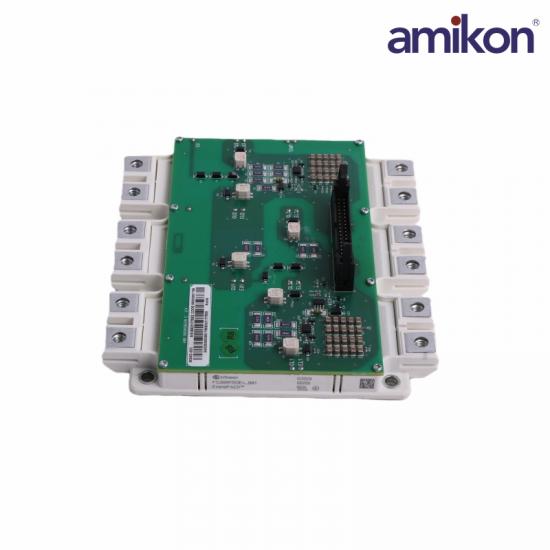

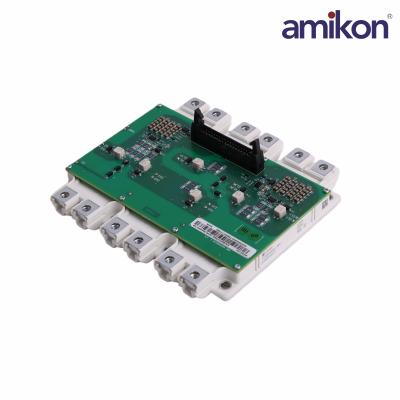

The ABB BGAD-22C 3AXD50000007344 IGBT Kit is a high-performance Insulated Gate Bipolar Transistor (IGBT) module kit designed for use in industrial power conversion and motor drive applications. As a critical component in drives such as the ABB ACS880 series, this IGBT kit provides robust and efficient switching capability at high voltage and current levels, enabling precise control of power electronics in demanding environments. The BGAD-22C 3AXD50000007344 kit includes a complete IGBT module with pre-applied thermal grease and a protective cover, making it suitable for direct replacement in power conversion units after a semiconductor failure.

Frequently asked questions：

Q1: What is an IGBT Kit and why is the BGAD-22C used?

A: An IGBT Kit contains one or more insulated-gate bipolar transistor modules used for high-efficiency switching in power electronics such as AC drives and converters.

Q2: What are the key electrical ratings of this IGBT module?

A: The BGAD-22C IGBT module is rated for 300 A current capacity and 1200 V DC blocking voltage, making it suitable for medium and high power drive applications.

Q6: Can this kit be used in any ABB drive?

A: The BGAD-22C is designed for compatibility with specific ABB drives
