Manufacturer : ABB

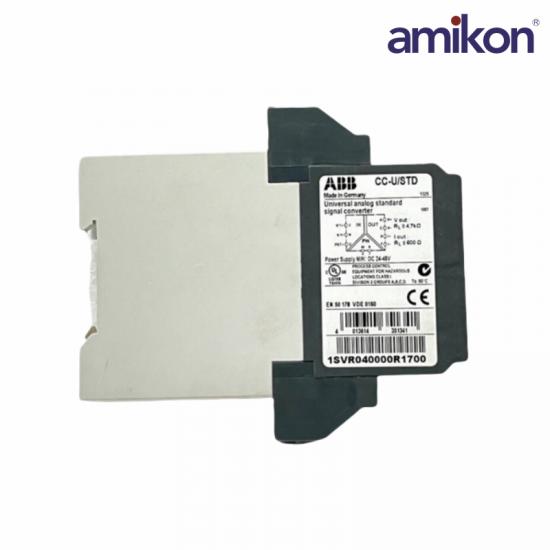

Product No : 1SVR040000R1700

Product Type : CC-U/STD Universal signal converter

Rated supply voltage: 24-48 V DC

Accuracy:  ±0.1 % of full-scale

Response time: 200 µs

Dimension (LxWxH) cm : 12.0 x 2.25 x 10.5 cm

Input Signal:  ±0,9 mA ... ±55 mA / ±45 mV ... ±11 V / 470 Ohm ... 1 MOhm

Output Signal: 0 ... ± 55 mA / 0 ... .± 11V

Ambient temperature range:  -20...+60 °C / -40...+80 °C

Weight : 0.125 Kg

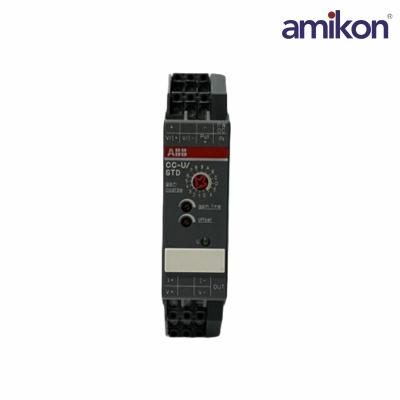

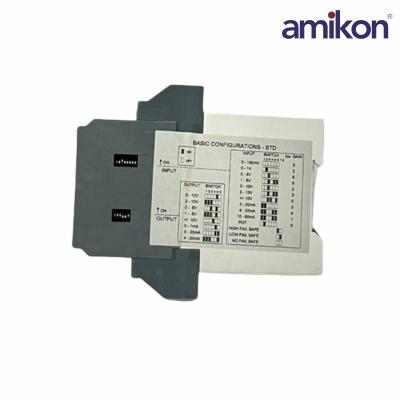

The CC-U/STD is a standard analog signal converter from the CC-U range. This converter, with 3-way electrical isolation, operates with a rated control supply voltage of 110-240 V AC. It provides short-circuit proof signal outputs, pluggable connecting terminals and configurable detection of input voltage signal interruption (low fail safe / high fail safe). 28 input signal ranges (16 standard and 12 non-standard) and 41 output signal ranges (8 standard and 33 non-standard) can be configured by means of directly accessible lateral DIP switches. The gain and the offset adjustment is made via front-face operating elements. Applied supply voltage is displayed by a green LED.

The ABB CC-U/STD 1SVP040000R1700 universal signal converter is a high-performance signal conversion device designed for industrial and process control applications. This module can handle various input signal types and convert them into standardized output signals to meet different control system requirements. It features high accuracy, strong stability, and a wide-range power supply input, making it suitable for demanding industrial environments.
