Description：

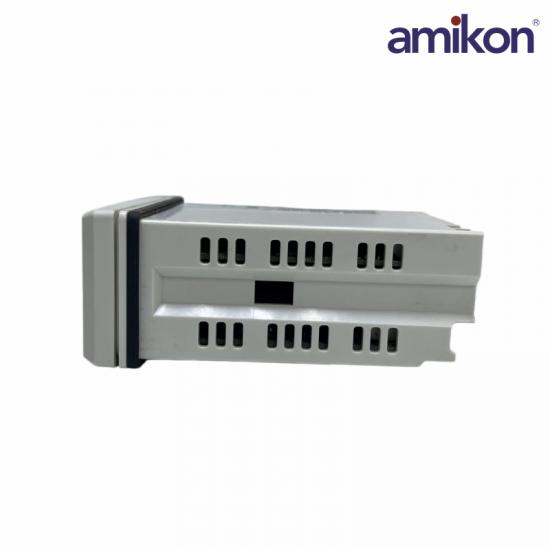

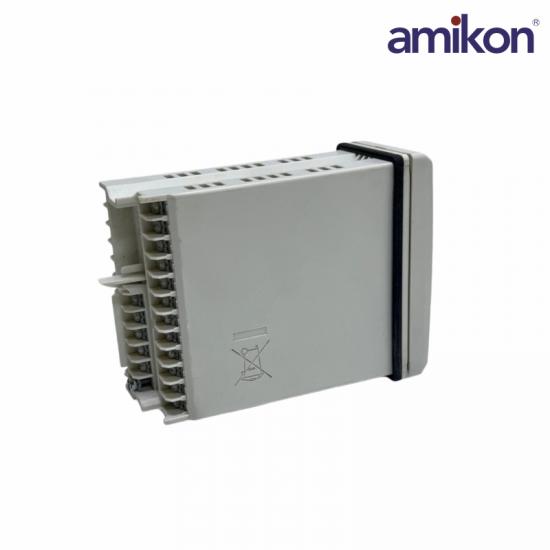

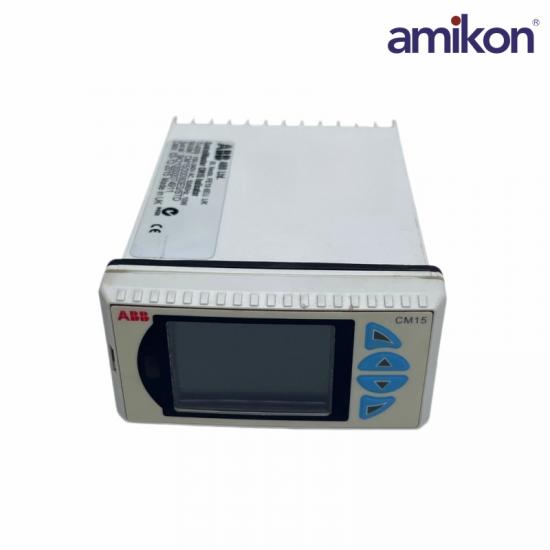

The ABB CM15/20MS0E0/STD is a 1/8 DIN ControlMaster CM15 universal process indicator designed to display process data like temperature, flow, and pressure. It features a bright TFT display, 2 analogue inputs, 2 analogue outputs, 4 relay outputs, and RS485 Modbus communication, operating on 90-264V AC.

The ControlMaster CM15 is a feature-packed, 1/8 DIN, universal process indicator. A crystal-clear, full-color, TFT display shows

operators exactly the information they need to know and provides operation and configuration menus in full text making the

CM15 intuitive to use and very quick to install and commission.

Available as a basic indication-only model, or enhanced through plug and play function keys and I/O modules, the CM15 offers

totalization, level, math, counter and alarm functions making it extremely flexible and able to solve many demanding

application requirements.

MODBUS and Ethernet communication options ensure easy integration and connectivity to supervisory or control systems.

Specification：

Frequently asked questions

Q1: What is the ABB CM15/20MS0E0/STD Universal Process Indicator?

A1: It is an industrial process indicator designed for monitoring, displaying, and communicating process variables in and control systems.

Q2: How many process inputs does the CM15/20MS0E0/STD unit support?

A2: The CM15/20MS0E0/STD device supports 2 universal analog process inputs.

Q3: What output configurations are available?

A3: It provides 2 analog outputs and 4 relay outputs for process control and alarm functions.

Q4: What communication protocol does the CM15/20MS0E0/STD indicator support?

A4: It supports RS485 Modbus RTU communication for integration with industrial control networks.

Q5: What CM15/20MS0E0/STD power supply range is required?

A5: The CM15/20MS0E0/STD unit operates on a power supply of 90–264 V AC at 50/60 Hz.

Product Applications

Food and beverages: pasteurization, in-line cleaning (CIP), ingredient system, oven temperature control.

Chemical and pharmaceuticals: reaction vessel temperature/pressure control, pH adjustment, distillation column, mixing system.

Water treatment: dosing control, filter backwashing, liquid level regulation, disinfection process.

Metal and heat treatment: furnace temperature control, heat treatment bath liquid level and temperature control.

Plastics and rubber: temperature control of extruders, injection molding machines.
