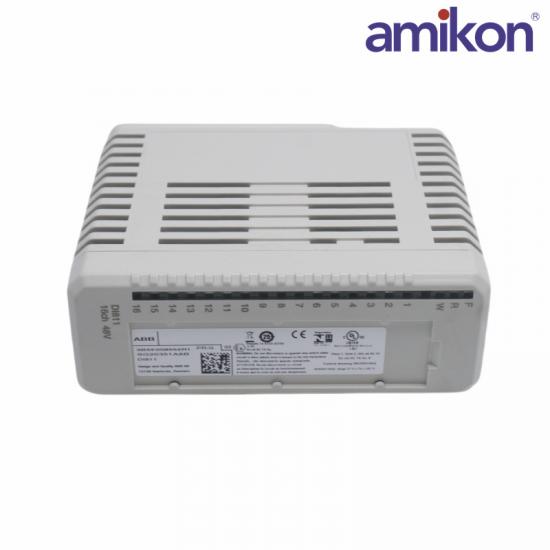

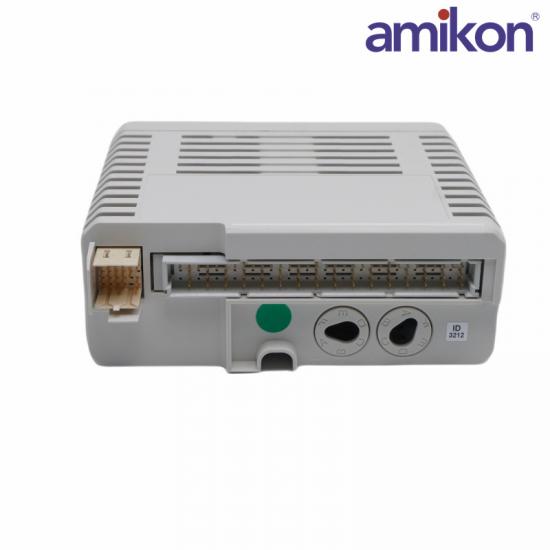

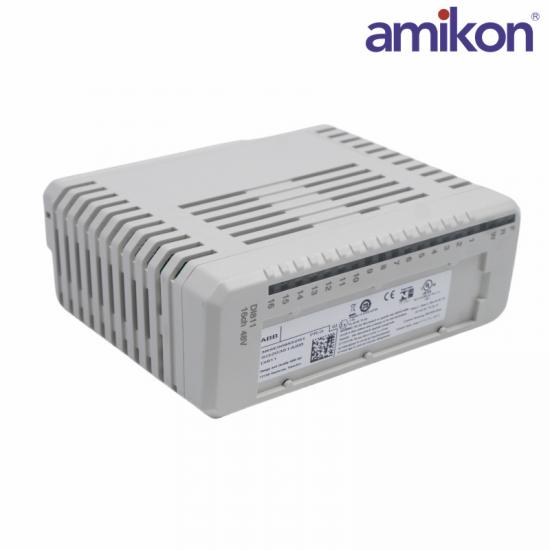

This DI811  module has 16 digital inputs. The DI811 input signal voltage range is 36 to 60 volt d.c. and the input current is 4 mA at 48 V.

The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every DI811 input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears.

DI811 Features and benefits

16 channels for 48 V d.c. inputs with current sinking.

2 isolated groups of 8 with voltage supervision.

Input voltage range, "0":-60 .. +10 V

Input voltage range, "1":30 .. 60 V

DI811 Input impedance:11 kΩ

Isolation:Groupwise isolated from ground, 2 groups with 8 channels

DI811 Filter times (digital, selectable):2, 4, 8, 16 ms

Current limiting:Sensor power can be current limited by the MTU

Maximum field cable length:600 meters (656 yards)

DI811 Rated insulation voltage:50 V

Dielectric test voltage:500 V a.c.

Power dissipation:Typ. 2.7 W

Current consumption +5 V Modulebus:50 mA

Temperature, Operating:0 to +55 °C (+32 to +131 °F)

Temperature, Storage:-40 to +70 °C (-40 to +158 °F)

DI811 Dimensions

Width:45 mm (1.77”)

Depth:102 mm (4.01”), 111 mm (4.37”) including connector

Height:119 mm (4.7”)

Weight:0.15 kg (0.33 lbs.)
