Model: DO561

Function: 8 DO: 24 VDC, 0.5 A

Number of Digital Outputs: 8

Number of Configurable Digital I/Os: 0

Output Type: Transistor

Output Voltage Type: DC

Output Voltage (Uout): 24 V

Output Current: 0.5 A

Maximum Output Voltage: 20.4 … 28.8 V

Connection Type: Pluggable

Protection Class: IP20

Supply Voltage: 20.4 … 28.8 V DC

Ambient Temperature: Operation 0 … +60 °C

Storage Temperature: -40 … +70 °C

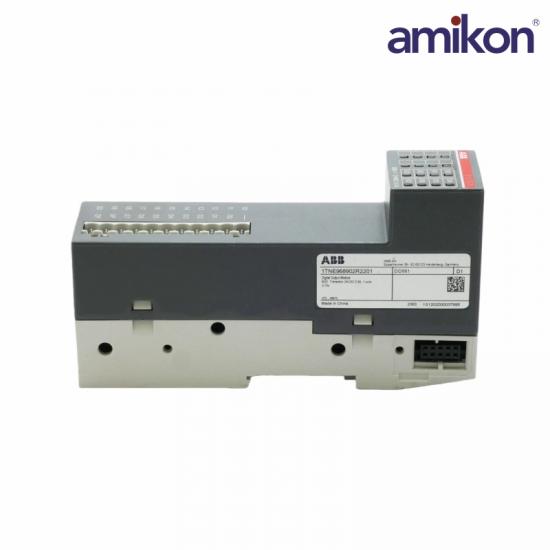

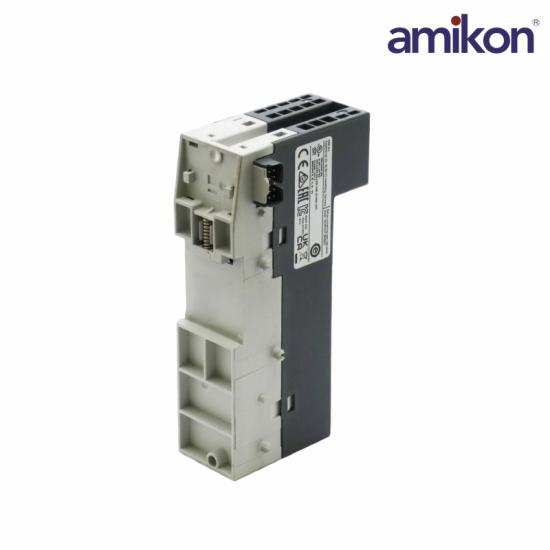

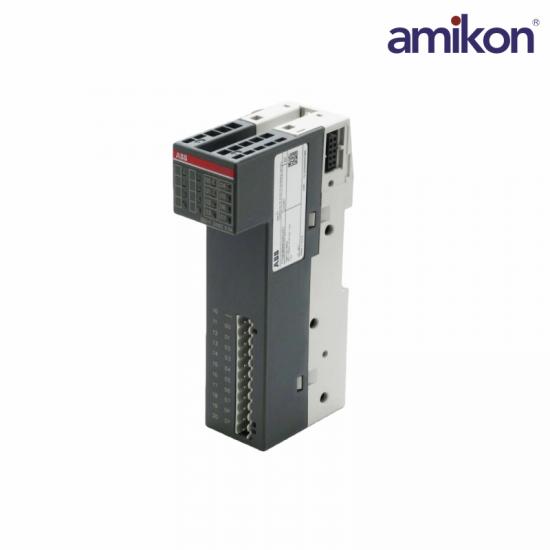

The ABB DO561 Digital Output Module is an industrial digital output module designed for use with ABB AC500‑eCo and S500‑eCo I/O systems. It provides 8 transistor‑type digital outputs that switch 24 V DC loads such as lights, relays, solenoids, and actuators. Built for distributed applications, the DO561 features a compact IP20 enclosure with pluggable terminals, making it ideal for expanding programmable controller (PLC) systems with reliable 24 V DC switching capability.

Frequently asked questions：

Q1: What does the DO561 module do?

A: It provides 8 digital transistor outputs for controlling 24 V DC field devices in an system.

Q2: How many digital outputs does the DO561 support?

A: It supports 8 digital output channels.

Q3: What voltage and current are its outputs rated for?

A: Each output is rated for 24 V DC at 0.5 A continuous.

Q4: What protection and indicators does DO561 have?

A: It has IP20 protection and LED status indicators for each output.
