Type：Digital Output

Signal specification：24V d.c. (12 - 32 V d.c.), 0.5 A

Number of channels：16

Signal type：Current sourcing, current limiting

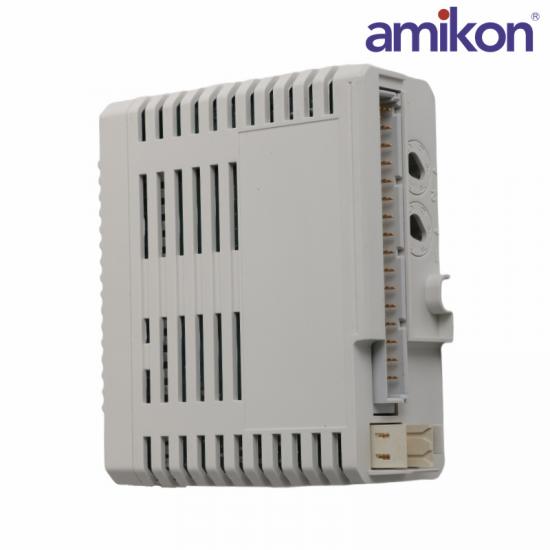

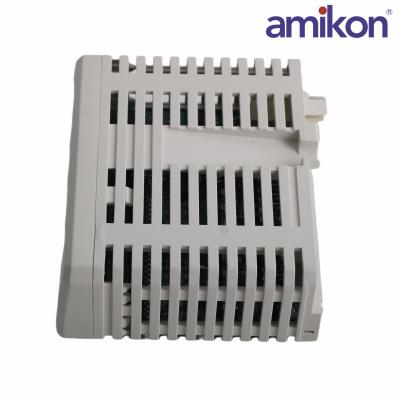

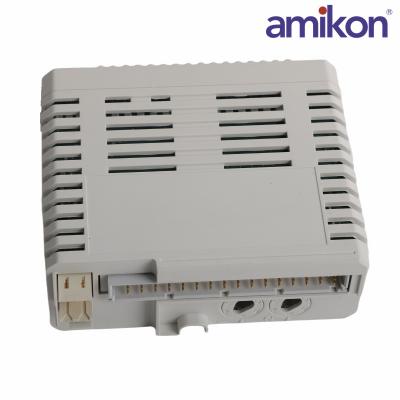

This DO810  module has 16 digital outputs. The output voltage range is 10 to 30 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The DO810 outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.

The DO810 process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus. The outputs are current limited and protected against over temperature. If the outputs are overloaded the output current will be limited.

DO810 Features and benefits：

16 channels for 24 V d.c. current sourcing outputs

2 isolated groups of 8 channels with process voltage supervision

DO810 Output status indicators

OSP sets outputs to predetermined state upon error detection

Short-circuit protection to ground and 30 V

Over-voltage and over-temperature protection

Temperature Operating：0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C

Temperature Storage：-40 to +70 °C (-40 to +158 °F)

Relative humidity：5 to 95 %, non-condensing

Max ambient temperature：55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)

Protection class：IP20 according to IEC 60529

Mechanical operating conditions：IEC/EN 61131-2

EMC：EN 61000-6-4, EN 61000-6-2

Overvoltage categories：IEC/EN 60664-1, EN 50178

DO810 Dimensions

Width：45 mm (1.77”)

Depth：102 mm (4.01”), 111 mm (4.37”) including connector

Height：119 mm (4.7”)

Weight：0.18 kg (0.4 lbs.)
