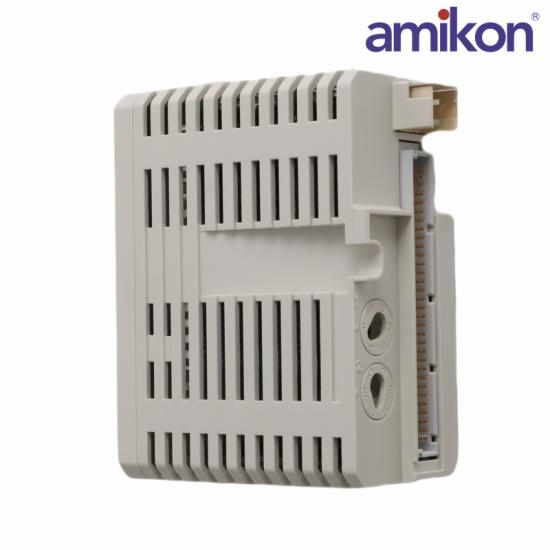

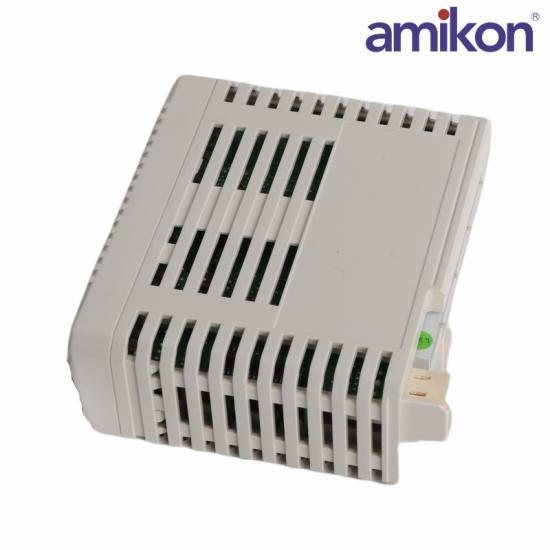

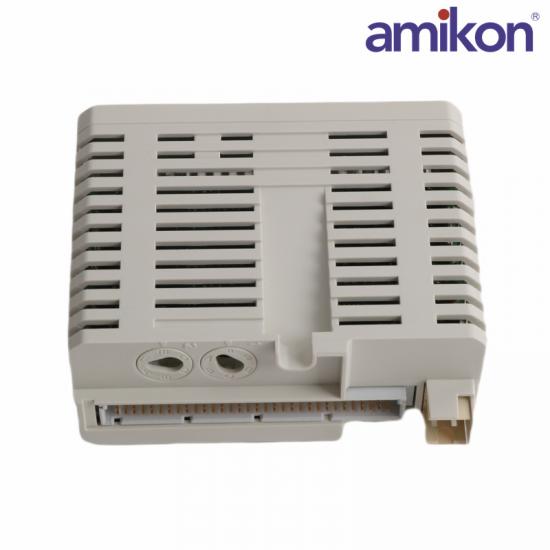

The DO880 is a 16 channel 24 V digital output module for single or redundant application. The maximum continuous output current per channel is 0.5 A.

The outputs are current limited and protected against over temperature. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and an isolation barrier to the Modulebus.

DO880  Features and benefits

16 channels for 24 V d.c. current sourcing outputs in one isolated group

Redundant or single configuration

DO880  Loop monitoring, supervision of short and open load with configurable limits (see table Table 97).

DO880  Diagnostic of output switches without pulsing on outputs

DO880  Advanced on-board diagnostics

Degraded mode for normally energized channels (supported from DO880 PR:G)

Current limitation at short circuit and over-temperature protection of switches

Fault tolerance of 1 (as defined in IEC 61508) for output drivers. For ND (Normally De-energized) systems, outputs can still be controlled with error on output drivers

Maximum field cable length:600 meters (656 yards)

Rated insulation voltage:50 V

Dielectric test voltage:500 V a.c.

Power dissipation:5.6 W (0,5 A x 16 channels)

Current consumption +5 V Modulebus:45 mA

Current consumption +24 V Modulebus:Max. 50 mA

Current consumption +24 V external:10 mA

Temperature, Operating:0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C

Temperature, Storage: -40 to +70 °C (-40 to +158 °F)

Max ambient temperature:55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)

DO880  Dimensions

Width:45 mm (1.77”)

Depth:102 mm (4.01”), 111 mm (4.37”) including connector

Height:119 mm (4.7”)

Weight:0.20 kg (0.44 lbs.)
